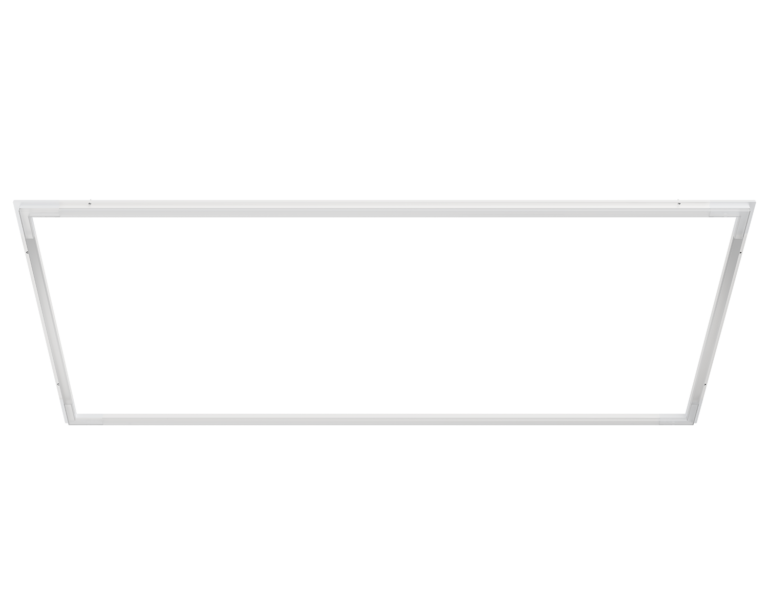

2′ X 4′ Vivid™ LED FRAME

Item No: VLFT4

The Vivid LED Frame offers an upscale, architectural aesthetic, output versatility and energy efficiency for interior grid ceiling applications.

While delivering a high-end, unique look to any environment, this fixture is also highly adaptable based on the needs of that space. Each size (available in 2’x2’ and 2’x4’) includes three distinct wattage settings as well as three settings for CCT (3500K, 4000K, 5000K). This ensures a perfect match for any application within a limited  SKU count. Once wattage and CCT are set, output can still be easily controlled via 0-10V dimming, which is standard on each fixture.

Installation is easy; after a quick assembly of the frame, the fixture lays into any standard grid ceiling and connects to a grid railmounted driver, which houses the selectable wattage and CCT
switches.

Each fixture delivers long-term efficiency with zero maintenance, and is backed by Litetronics 5-year warranty.

Request Pricing


Product Information:

Shape:
2' x 4'
Brand:
Vivid LED Frame
Voltage:
120-277
Average Rated Life:
50000
Luminaire Lumens:
3000 | 4375 | 5625
CRI:
80
Color Temp:
3500 | 4000 | 5000
Finish:
Polycarbonate Frosted
Operating Temp:
32°F to 104°F (0°C to 40°C)
Power Factor:
>.95
Warranty:
5 Years
Beam Angle:
110
Suitable for Damp Locations:
Yes

Applications:

  • Grid Ceilings

Features:

  • Selectable Wattage (24w, 35w, 45w)
  • Selectable CCT (3500k, 4000k, 5000k)
  • FCC
  • Dimmable

Markets:

  • Schools
  • Offices
  • Healthcare
  • Retail
