LED Slim Wall Pack

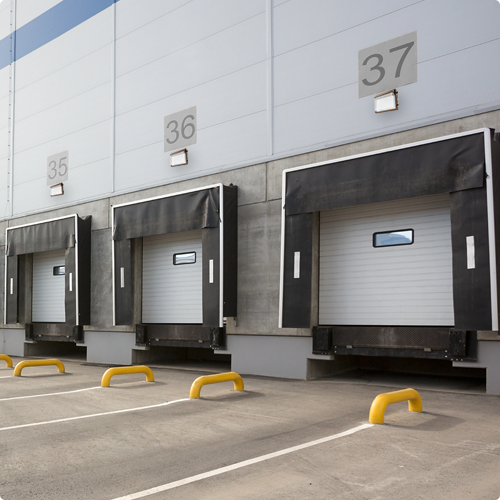

Ideal for walkways, paths of egress, loading docks and entry doors. Litetronics has you covered for any outdoor application!

THE PERFORMANCE AND ENERGY SAVING WALL MOUNT SOLUTION

An aesthetically pleasing form factor, that provides not just looks, but energy efficient performance in a rugged construction. Litetronics’ durable LED wall packs provide enhanced visibility, safety, and security to building exteriors, walkways, paths of egress, and other applications that demand bright and reliable illumination.

PERFORMANCE AND CONTROL

Litetronics Slim Wall Packs are available in two sizes and range from 40W to 120W. The units are offered with selectable wattage and CCT, photocell, pluggable sensor socket and glass frosted lens.

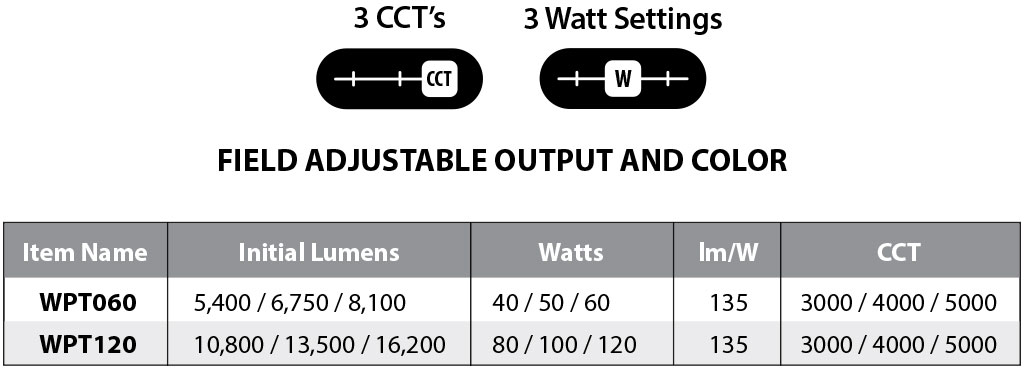

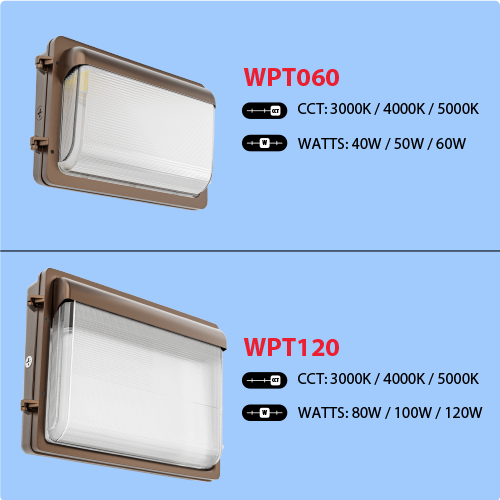

LED Wall Pack Field Adjustable Output and color chart.

Features

LED Slim Wall Pack features

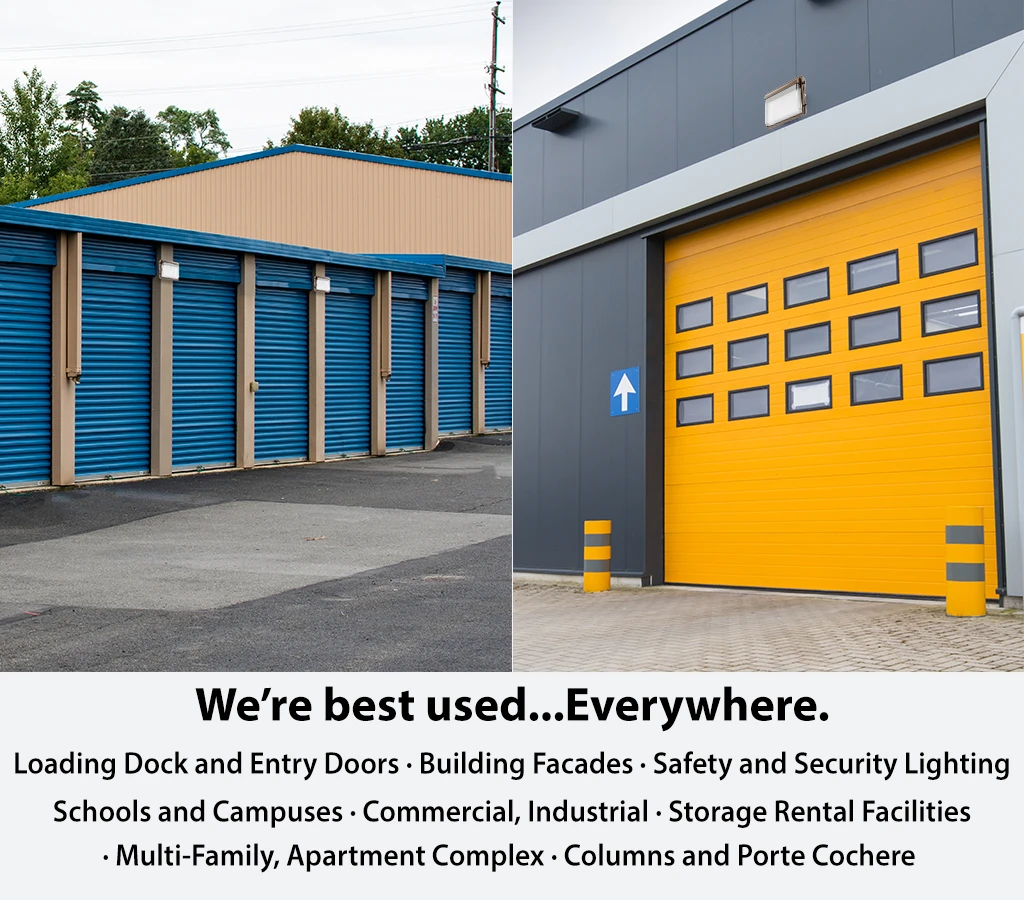

LED slim wall pack options offered



OPTIONS

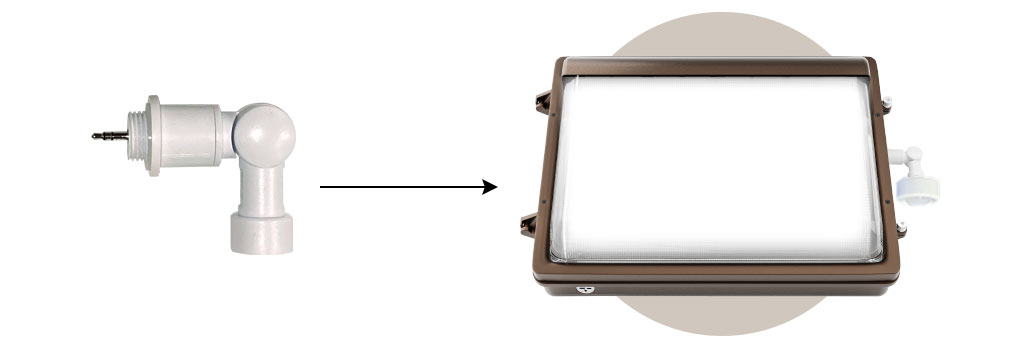

With the 1-Pin Sensor Socket you can expand the capabilities of the wall pack by installing any of our compatible sensors. Set up and manage your space with our controls or via the LiteSmart app with a touch of a finger!

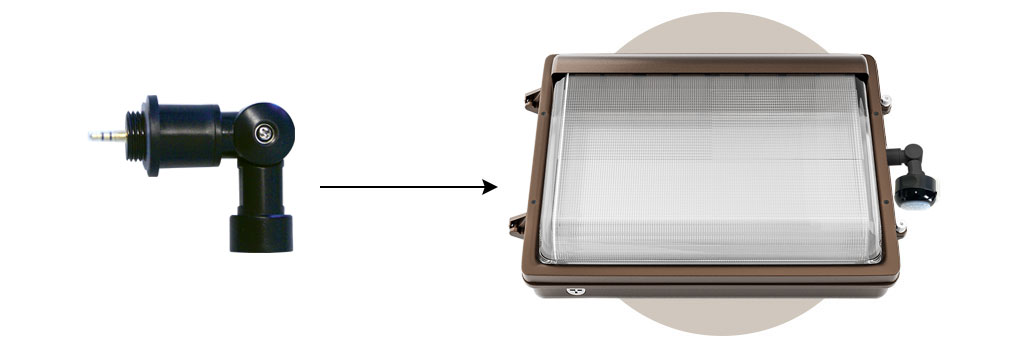

Slim wall pack pluggable sensor

SENSORS AND CONTROLS

A wide option of sensor and control products allows you to manipulate, commission and control Litetronics Wall Packs, furthering the variety of flexible options offered.

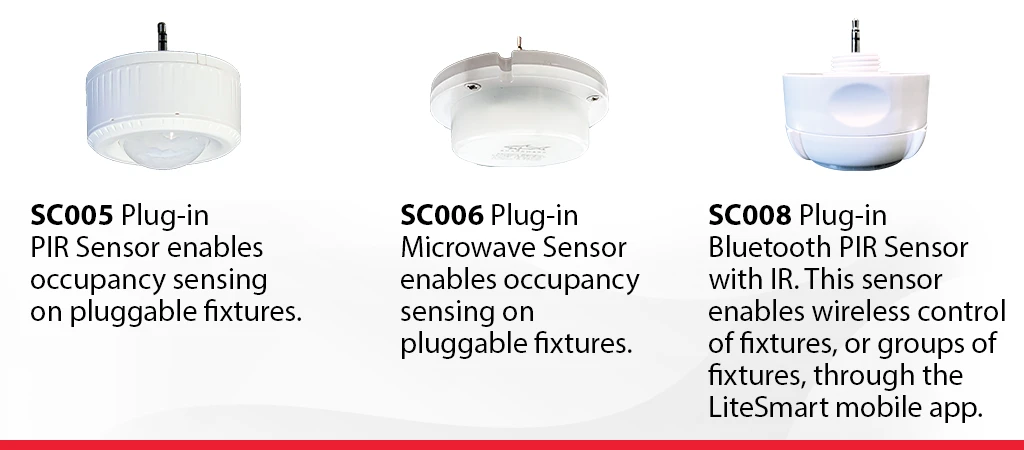

 SC005 Plugin Sensor. SC006 Plugin Microwave Sensor. SC008 Plugin Bluetooth PIR Sensor.

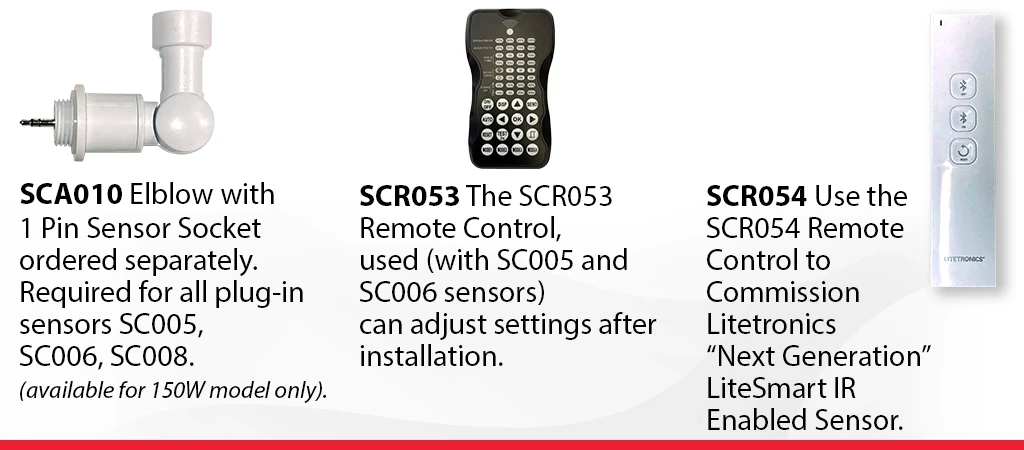

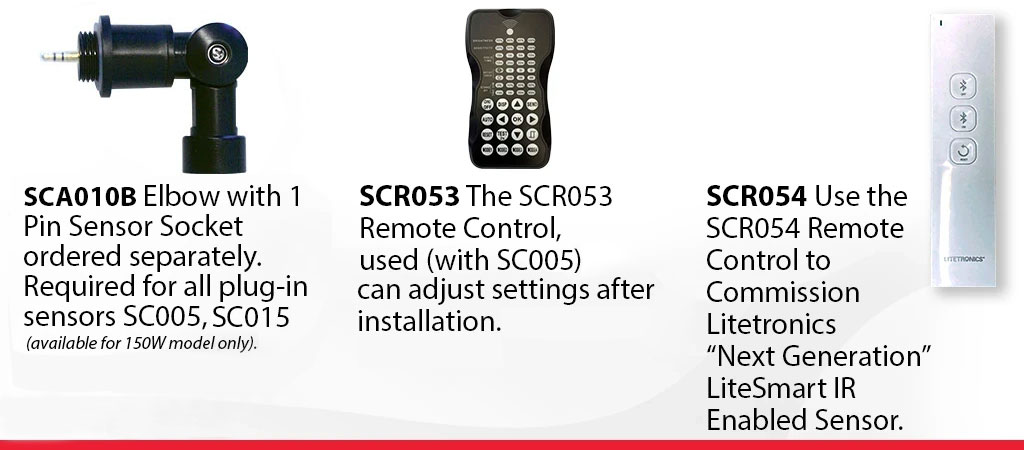

SC010 Elbow with 1 Pin Sensor Socket ordered separately. SCR053 Remote control used with SC005 and SC006. SCR054 Remote control to commission Litetronics IR enabled sensor.

Static overlay
LiteSmart is a mobile app that enables total management of lighting systems at the touch of your fingers.
Set up and manage
your space with LiteSmart.
DOWNLOAD NOW!
Download App On The Apple Store
Get It On Google Play

Dimensions / Weight

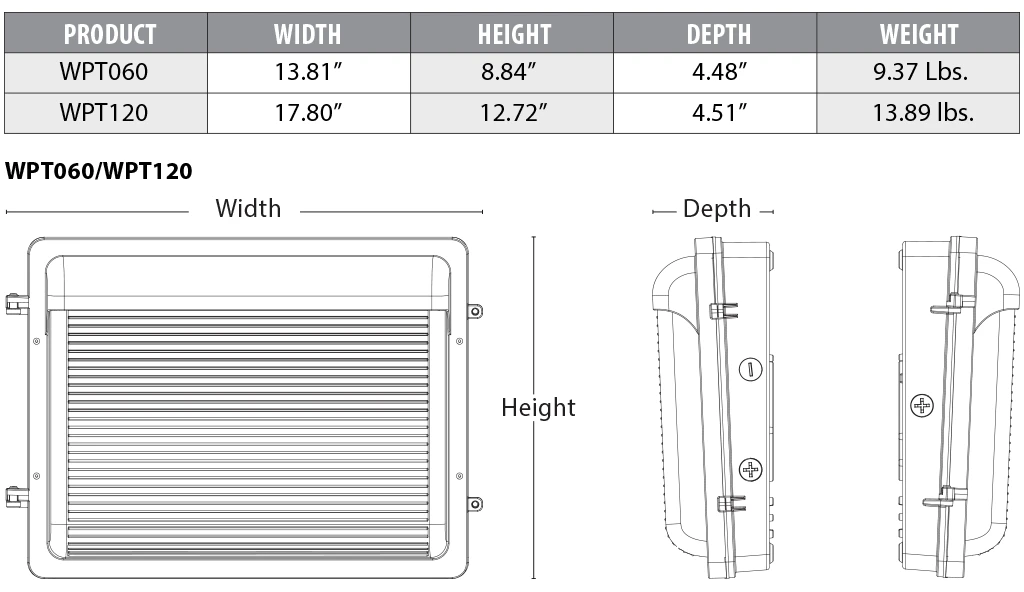

LED slim wall pack dimensions, sizes and weight chart

Features and Specs

Features

  • Selectable wattage: WPT060: 40/50/60
  • Selectable wattage: WPT120: 80/100/120
  • Field Selectable CCT: (3000K, 4000K, 5000K)
  • Photocell and pluggable sensor socket
  • Compatibility with LiteSmart mobile app

Specs

  • Average rated life:50,000 hours (@L70)
  • Warranty:5 years
  • Operating temp: -40F to 113°F (-40°C to 45°C)
  • LPW:135
  • CRI: 80
  • Input voltage: 120-277V
  • Input frequency: 50/60Hz
  • Power factor: ≥0.95
  • THD: ≤20%
  • Surge protection - WPT060: 10KV
  • Surge protection - WPT120: 4KV
  • Dimming: 0-10V
  • Whip/Cord: None
  • Sensor:Plug-In (Choice of MW, PIR, and Bluetooth)
  • Beam angle: 110°
  • Lens: Glass Frosted
  • Color: Dark Bronze
  • IP rating: 65
  • Location Rating: Wet
  • Outdoor Rated: Yes
  • IC rated: No
  • UL listed: (Pending)
  • FCC listed: Yes
  • RoHS compliant: Yes
  • 5.1 Premium (Pending)

Wattage Lumens

Model# WPT060

  • Size: 13.81" x 8.84" x 4.48"
  • Weight: 9.37 lbs.
  • Wattages 40 | 50 | 60
  • CCT: 3000 | 4000 | 5000
  • Lumens: 5,400 | 6,750 | 8,100

Model # WPT120

  • Size: 17.80" x 12.72" x 4.51"
  • Weight:13.89 lbs.
  • Wattages: 80 | 100 | 120
  • CCT: 3000 | 4000 | 5000
  • Lumens: 10,800 | 13,500 | 16,200

FOR MORE INFORMATION

Call 1-800-860-3392 or ask about our 60 day free trial to see the LED Slim Wall Packs in all their glory first hand.
