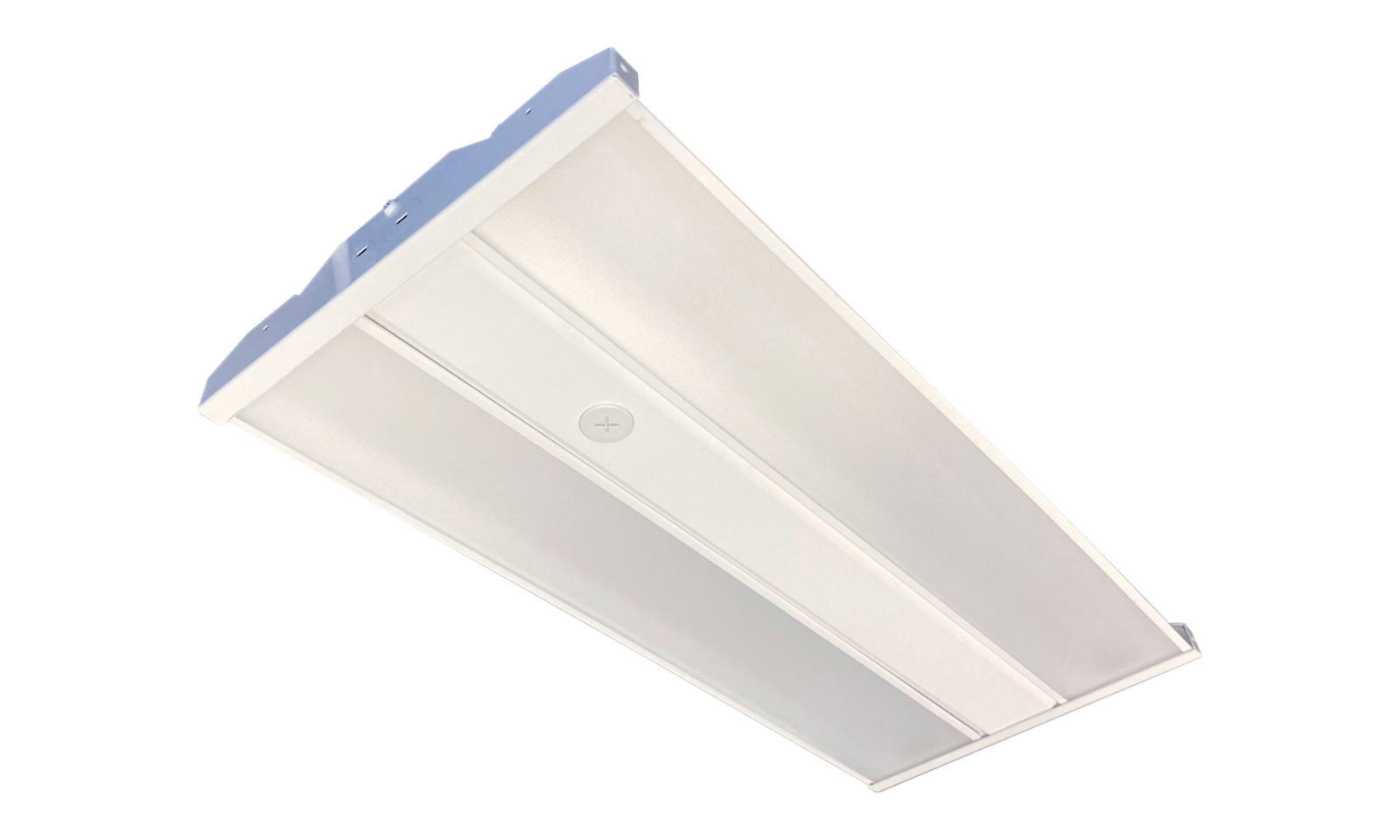

LED Linear High Bay Gen 4

The LED Linear High Bay, with sensor socket, is a versatile, efficient , and attractive product for your high ceiling applications.

The Smart and
Flexible Choice

With wattage options from 78W to 400W, along with lumen outputs from 12,000 to as high as 60,000, you’ll find this high bay has the flexibility to meet your high ceiling needs in virtually every application. Add in the availability to control multiple fixtures remotely with the LiteSmart app, this product can meet all your application needs.

Product Specifications

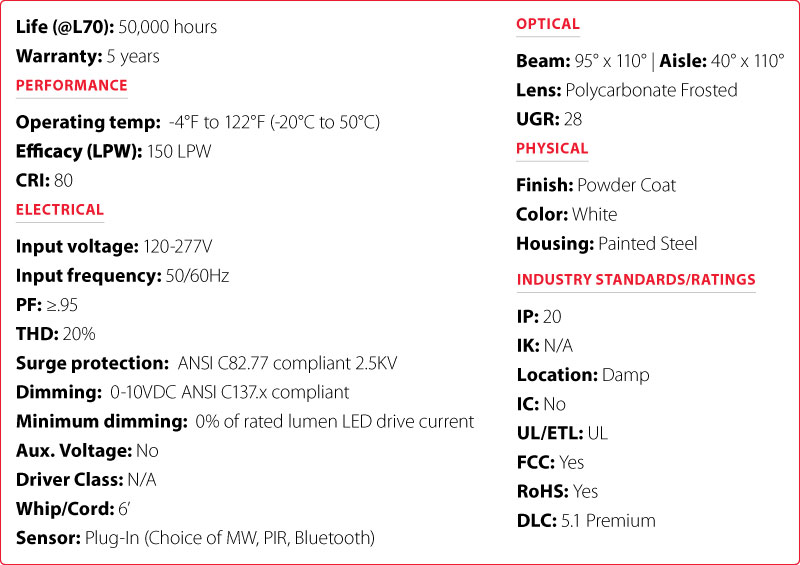

Technical specifications for the Linear High Bay Gen 4:

Table showing the technical specifications for the LED Linear High Bay Generation 4 line of fixtures.

For more information about our fixtures please click below.

Better for business

The LED Linear High Bay is a one-for-one replacement for fluorescent fixtures in high ceiling locations.

With this LED upgrade, you can…

  • Reduce energy costs by up to 70% compared to high wattage fixtures
  • Cut maintenance costs associated with short-life bulbs
  • Eliminate operational delays caused by warm-up and re-strike times
  • Avoid safety concerns created by poor lighting conditions

Designed for demanding environments

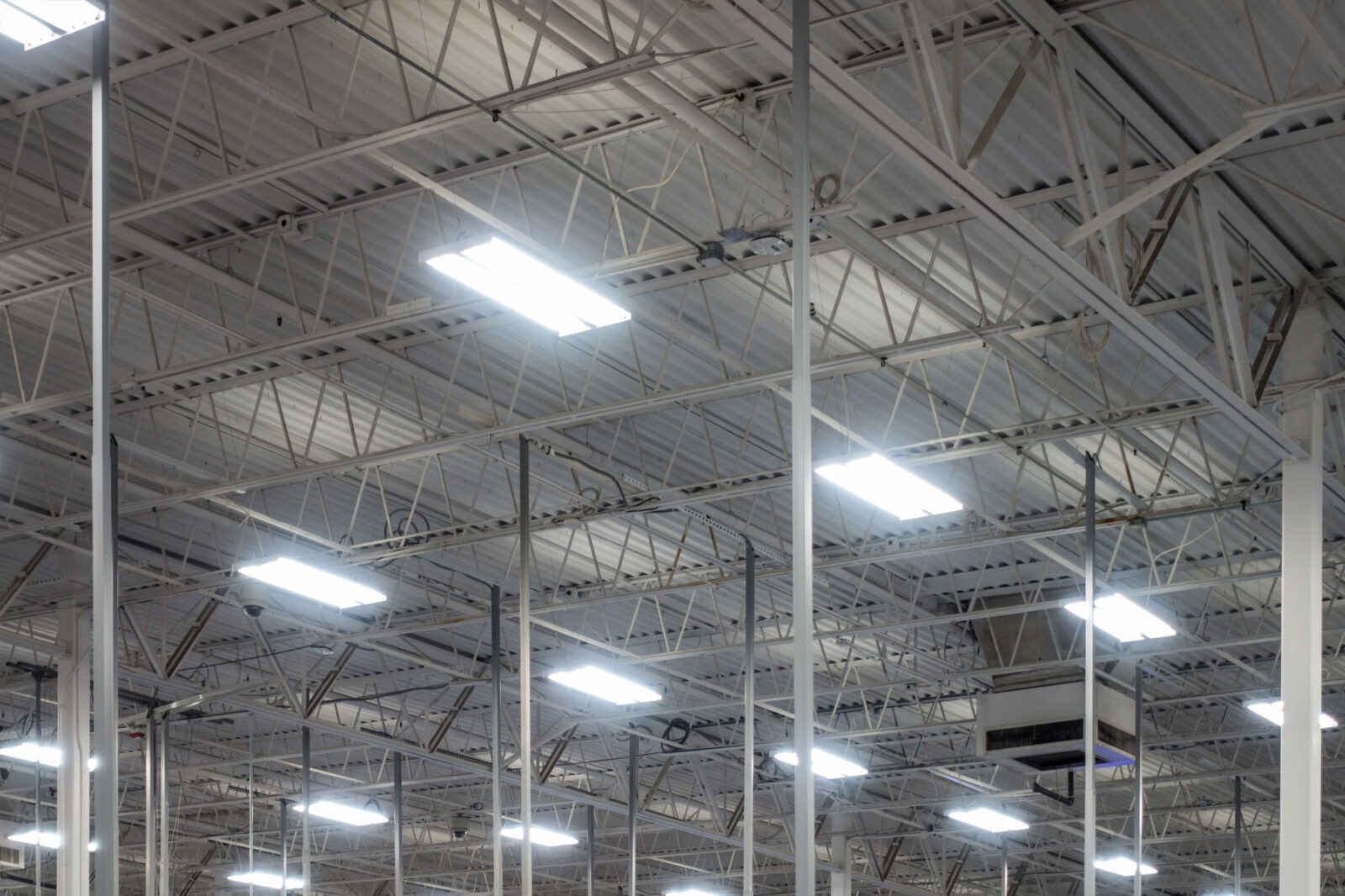

High ceiling applications can present their own unique challenges. Our high bay linear LED lights have been used across various environments, including industrial facilities, manufacturing plants, big box retail centers, and even school swimming pools.
And while each application has different challenges, this high bay was built
for tough conditions.

  • Equipped with a polycarbonate lens (10X stronger than glass or plastic)
  • Damp location rated (approved for use in areas containing moisture/condensation)
  • Optional wire guard available for applications that need added protection

Update Your Space

Many high ceiling facilities benefit from long lasting, low maintenance lighting.
Here are some common markets and applications for the Linear High Bay:

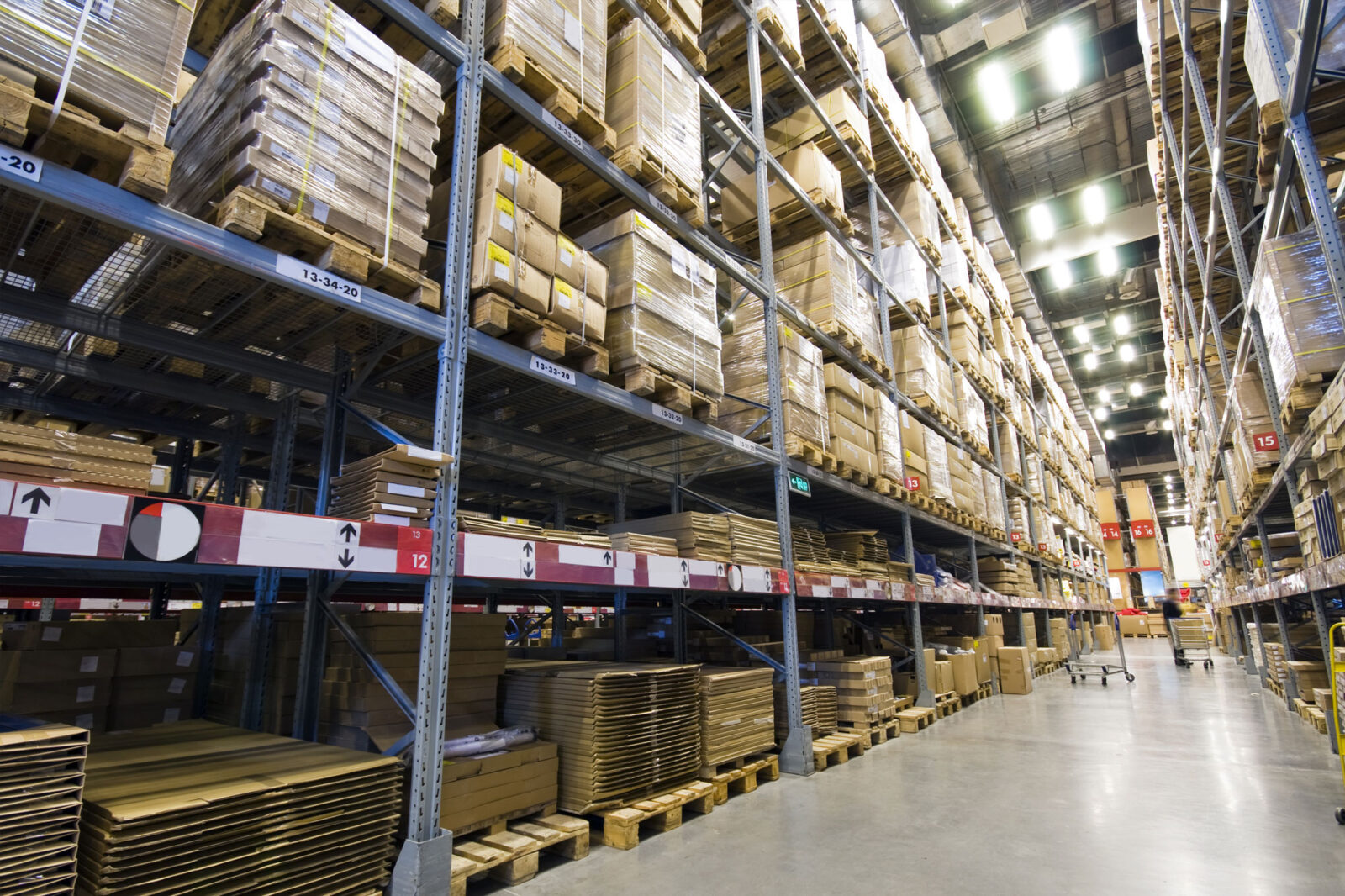

  • Warehouse and storage
  • Industrial facilities

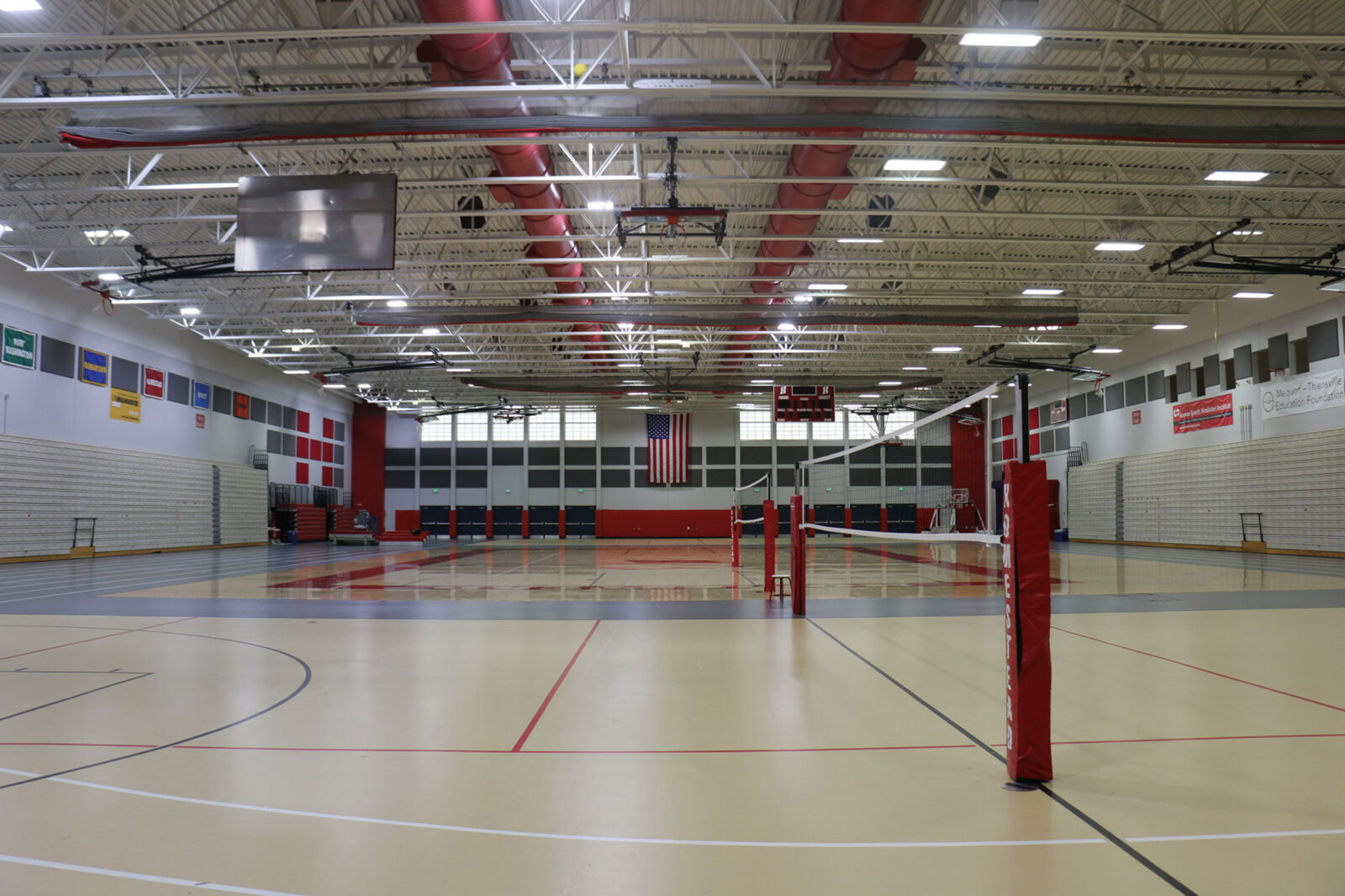

  • Sports facilities and gyms
  • Retail centers
  • Manufacturing facilities

Safety first

Visibility is key in areas with manufacturing lines, inventory storage, machinery, or where cleanliness and sanitation are required. Appropriate lumen levels, distribution of light and consistent, long life ensure high visual acuity without unexpected interruptions.

Efficiency at its best

LED Linear High Bay fixtures go above and beyond the standards, setting the bar for efficiency and delivering maximum energy savings.

  • This fixture delivers up to 150 lumens per watt, providing optimal light while using minimal energy
  • Rated for up to 50,000 hours and backed by a 5-year warranty of uninterrupted, highly efficient light.

Customize energy use

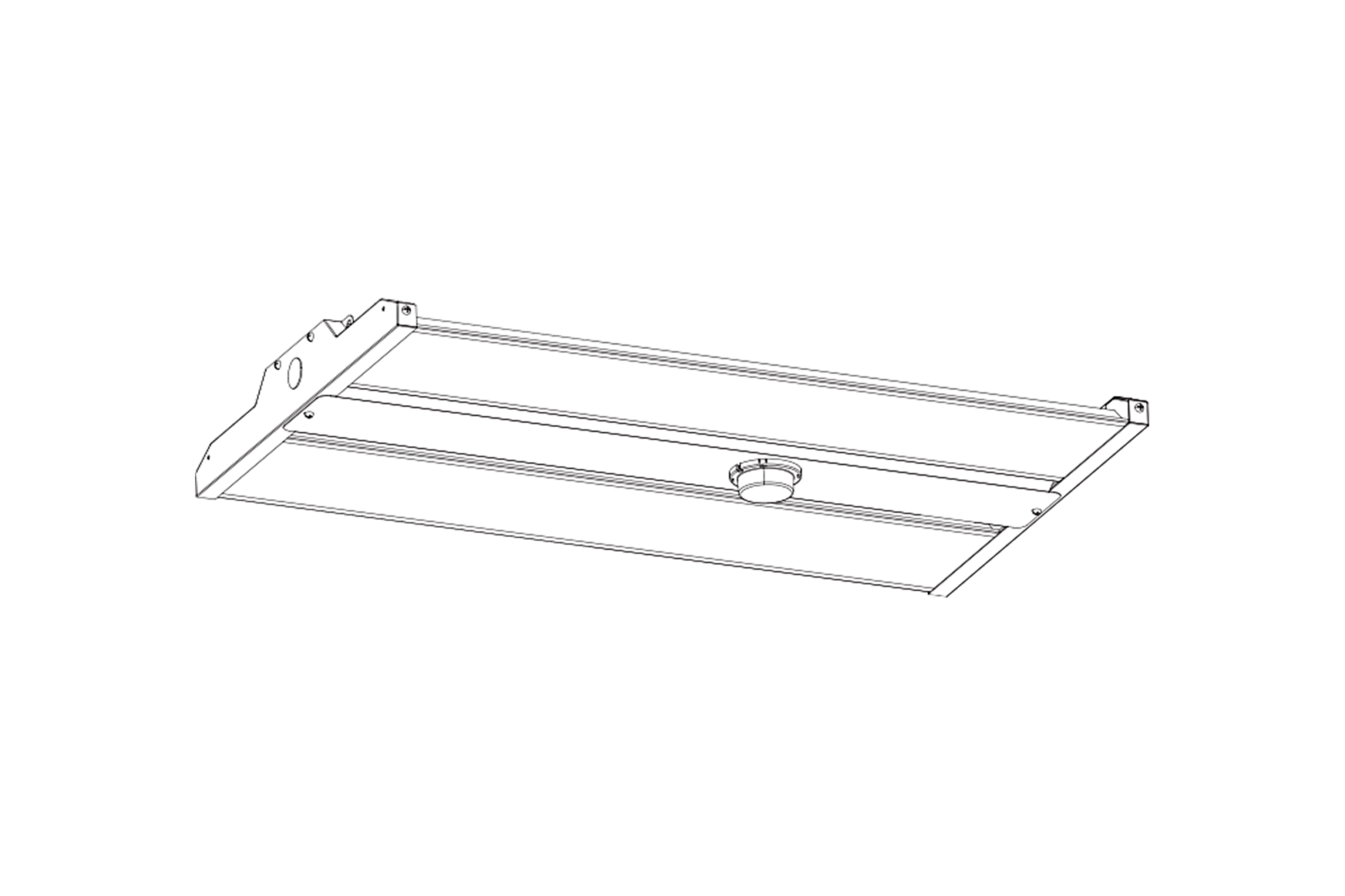

Each Linear High Bay can be individually fine-tuned to deliver the necessary light and functionality for your space. While highly efficient on its own, this fixture can accommodate a pluggable sensor, which can be added on to enable occupancy sensing and daylight harvesting.

  • Each fixture can be used with or without a sensor
  • A sensor can be easily added at any time
  • Sensor settings can be adjusted from the ground via remote control via the LiteSmart App

Easy installation

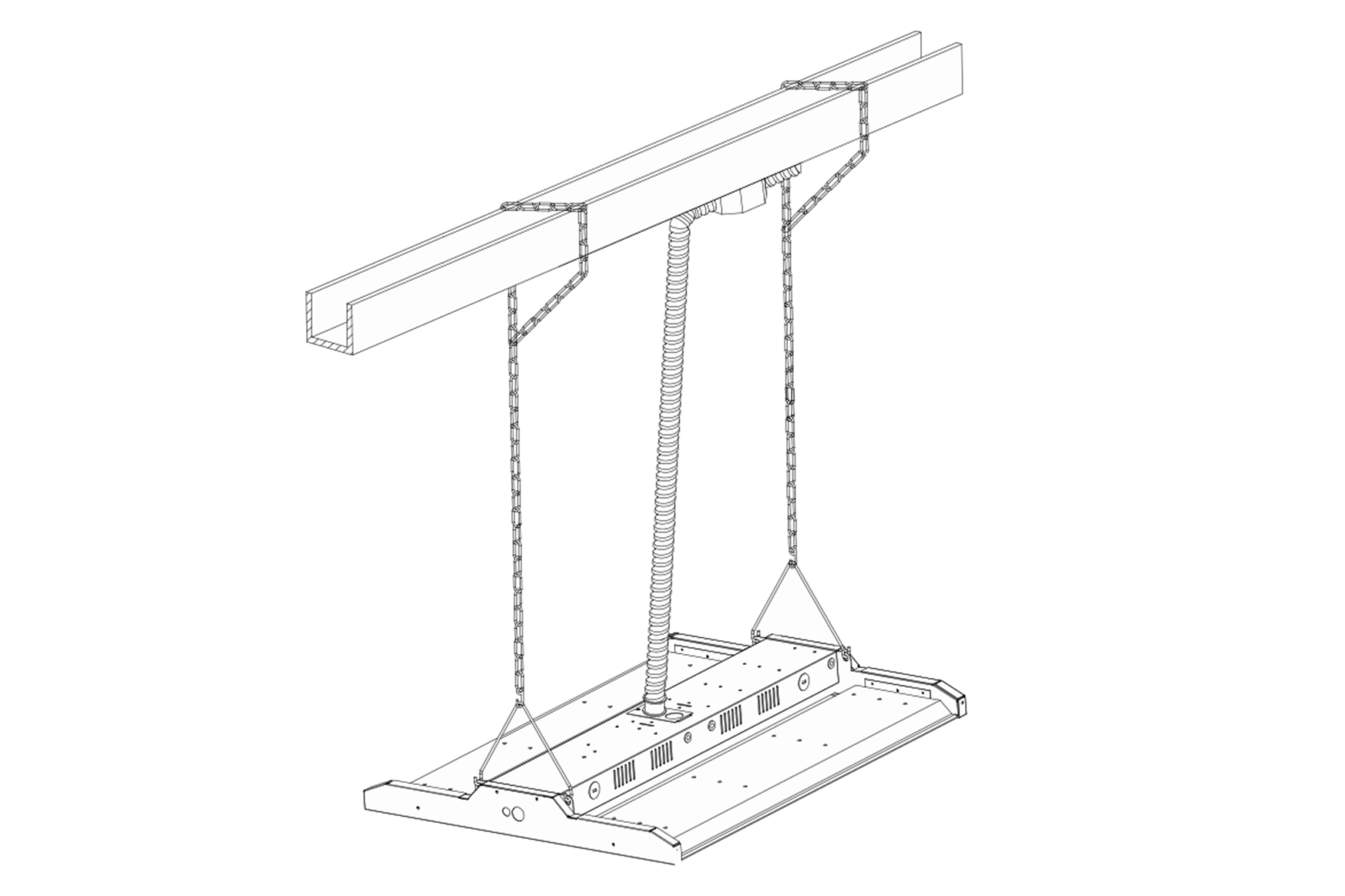

Litetronics prides itself on designing products that are just as easy to install as they are to order. The LED Linear High Bay can be mounted using the following methods.

The fixture also offers versatility in installation. It comes standard 6’ suspension cables and 6’ cord, making it an easy upgrade from linear fluorescent fixtures. Pendant or surface mounting kit options available.

Choose The Right Fit

Our family of linear fixtures includes options for both high bay and low bay applications.

Earn top rebates

Rebates in your area depend on your local utility company but have the potential to drastically reduce the upfront cost of your project and increase your return on investment. As a DLC Premium rated luminaire, the LED Linear High Bay light will qualify for the highest utility rebates.

Find rebates in your area

Let's Talk Numbers

The LED Linear High Bay is moderately priced but loaded with all the options you’ll need to achieve optimal efficiency. Based on available rebates and low labor costs for installation, your project can be completed for less than you think.

So, what are you waiting for?

Request Pricing

To find the potential ROI for your upcoming project, use our Payback Calculator

For more resources on the LED Linear High Bay, visit our Resource Center


Below are a few of the most frequently asked questions about the LED Linear High Bay.

Q:Is the Linear High Bay available without the sensor?

Yes. It is available without a built-in sensor in various wattages. Take a look at our spec sheet to view available options.

Q:Can I use the remote control to change settings on multiple fixtures?

Yes. The same remote control can be used to adjust each and every high bay. Once you have your settings, you can save those settings under 1 of 4 “modes.” That way, each fixture can be programmed with the touch of one button.

Q:Can this high bay be pendant mounted?

The product comes standard with 6’ suspension cables and a 6’ cord. Pendant or surface mounting kit options available.
