Introducing the
LED Linear High Bay Pro
The only Linear High Bay fixture in the industry featuring an All-In-One 120-480v driver. This revolutionary fixture also incorporates 2 beam patterns in one lens allowing you to switch from Standard to Aisle distribution with NO TOOLS – IN SECONDS.
Why it stands out
The Linear High Bay Pro delivers multiple innovative features – all in ONE product.
- Simplified Planning: Streamline facility auditing and ordering with a fixture that provides 120-480v versatility. No more counting low and high voltage product needs separately!
- Efficient Inventory: Selectable wattage and CCT feature reduces SKUs on the shelves for distributors.
- Easy Flexibility: Toolless lens rotation feature provides easy switch from standard (90° x 90°) to aisle (45° x 110°) distributions.
You Have Options

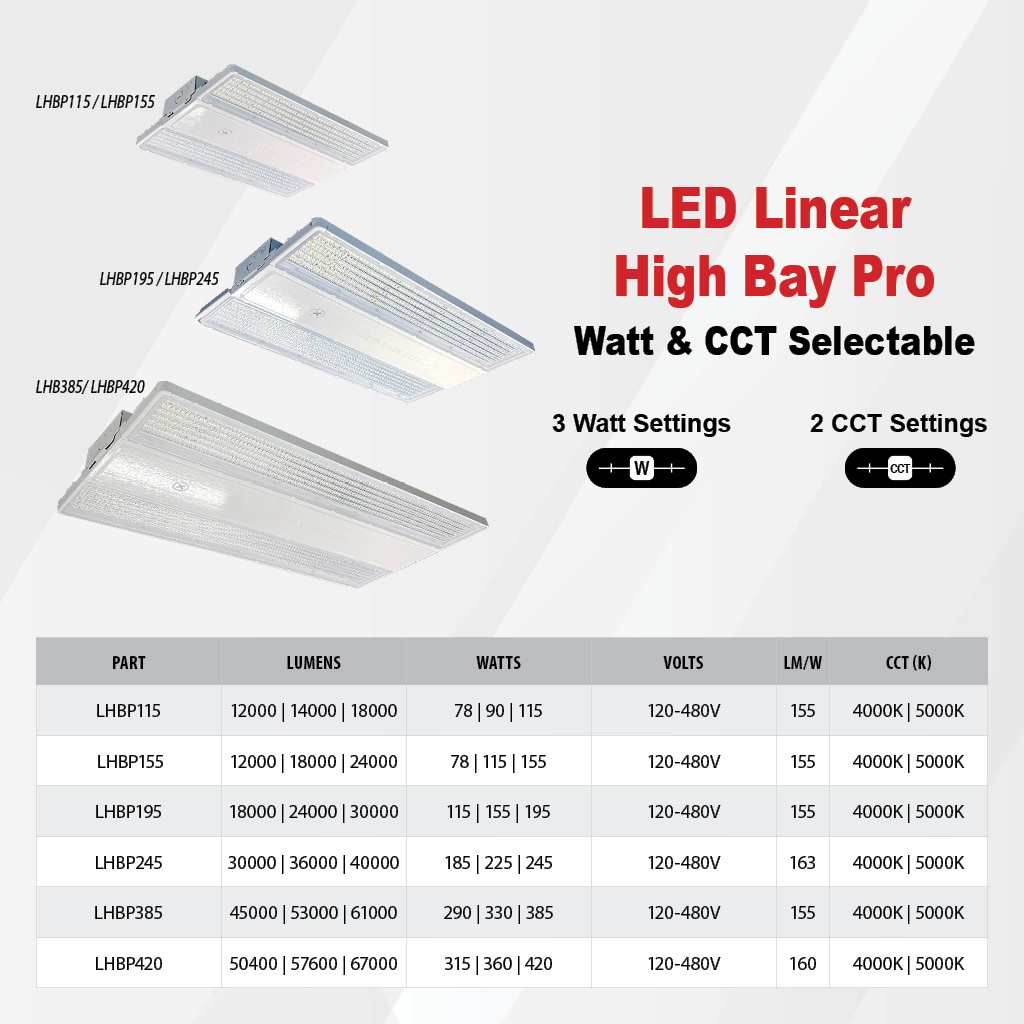

The Linear High Bay Pro comes in 5 models, 3 sizes and offers selectable wattage and CCT options. With lumen output between 12,000 and 61,000, this is a performance product.
Sizing
- LHBP115: 11.02″ wide x 15.04″ length x 2.22″ height – 8.49 lbs.
- LHBP155: 11.02″ wide x 15.04″ length x 2.22″ height – 8.49 lbs.
- LHBP195: 12.01″ wide x 19.61″ length x 2.46″ height – 10.58 lbs.
- LHBP245: 12.01″ wide x 19.61″ length x 2.46″ height – 10.58 lbs.
- LHBP385: 13.39″ wide x 26.69″ length x 2.46″ height – 16.31 lbs.

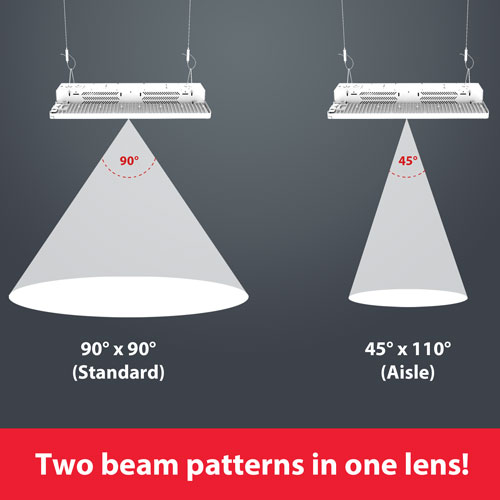

One Lens –
2 Beam Distributions,
Adjust in Seconds
NO TOOLS REQUIRED

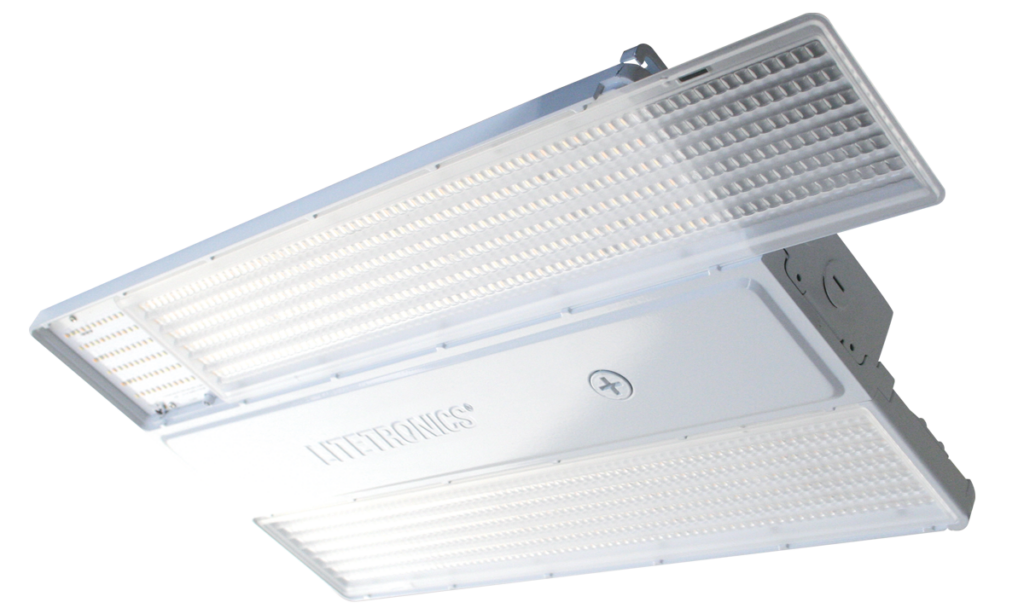

Toolless Lens Rotation Feature: Allows for optic lenses to be rotated to go between standard and aisle distribution.

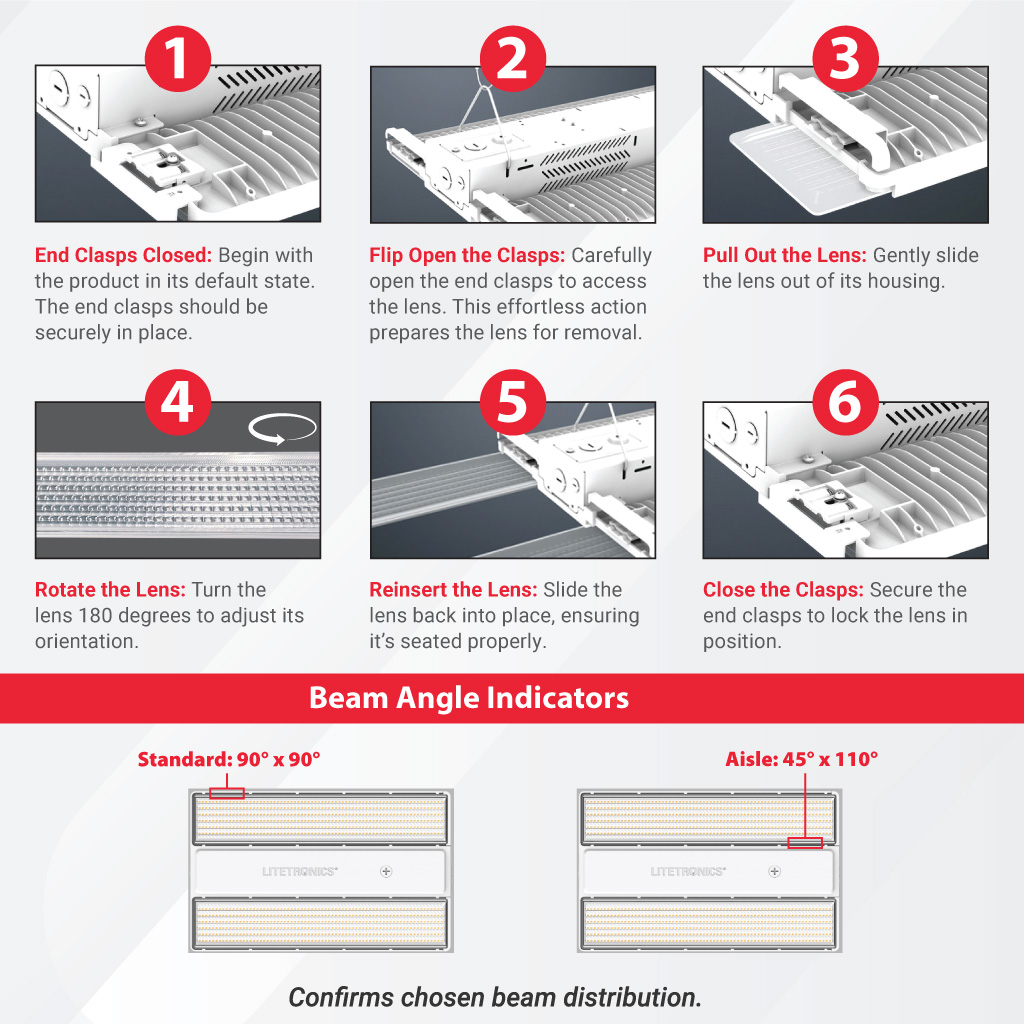

With the Linear High Bay Pro, adjusting your lens is a straightforward, no-tools-required process that takes only seconds. Here’s how it works.
Features and Specs
One Product,
120-480v Versatility
Take Control of
Your Lighting System
Using the LiteSmart app, you can commission fixtures in a space to be grouped together and function as one; they can be turned on/off, dimmed, or programmed based on your schedule. Settings can be adjusted and pushed live in seconds. Custom scene configurations can also be created to meet the various needs of the space.
- Total control over your lighting system
- Quick and easy changes that can be implemented in seconds across a group of fixtures
- Further energy reduction via occupancy sensing, daylight harvesting and max wattage control
- Ability to create custom scenes based on specific needs, such as presentations
- Time scheduling that sets hours of operation per day

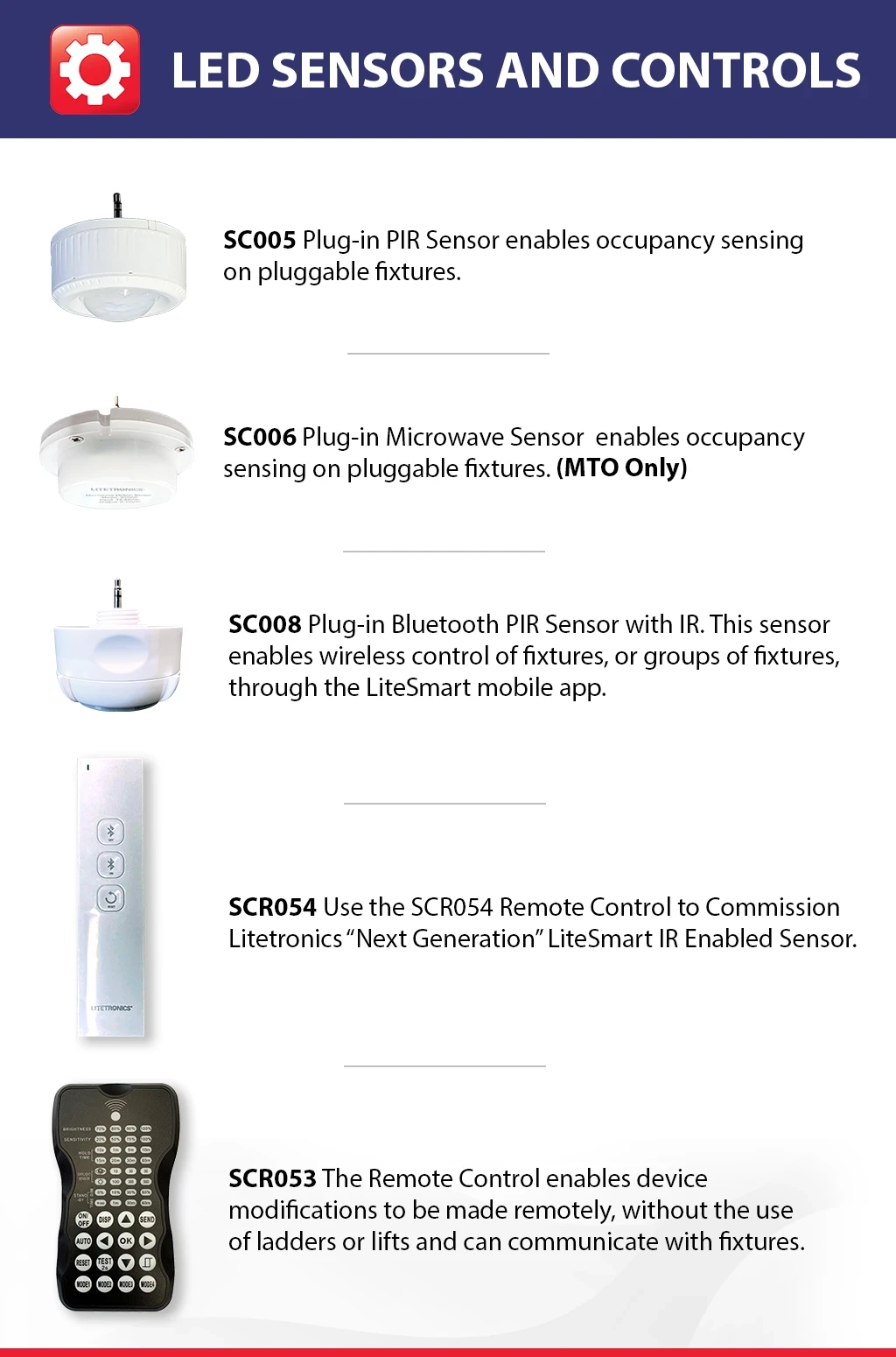

As an added benefit, use of the optional microwave and PIR motion sensor takes savings a step further, enabling occupancy sensing and daylight harvesting, each fully programmable with the LiteSmart App.
LiteSmart is a mobile app that enables total management of lighting systems at the touch of your fingers.
EARN TOP REBATES
Rebates in your area depend on your local utility company but have the potential to drastically reduce the upfront cost of your project and increase your return on investment. As a DLC Premium rated high bay, our linear high bay fixtures will qualify for the highest utility rebates.
Let's Talk Numbers
Our LED Linear High Bay Pro fixtures are competitively priced but loaded with all the options you’ll need to achieve optimal efficiency. Based on upfront cost, available rebates and an easy installation process, your project can be completed for less than you think.
To find the potential ROI for your upcoming project, use our Payback Calculator
For more resources on the LED Round High Bay SL, visit our Resource Center
