LED 2-In-1 Traditional or Full Cut Off Wall Pack

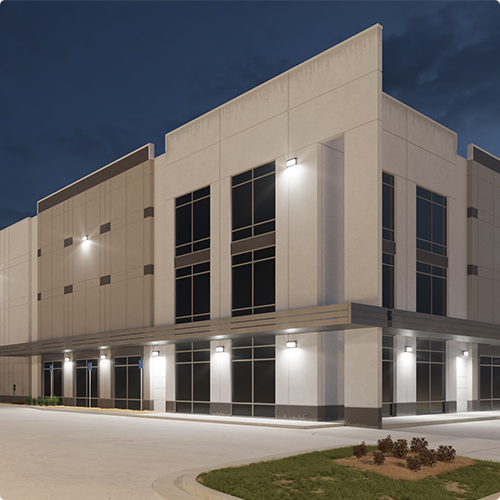

The LED 2-in-1 Traditional or Full Cut Off wall pack is ideal for walkways, paths of egress, loading docks and entry doors.

PERFORMANCE AESTHETICALLY PLEASING ENERGY EFFICIENT

The NEW LED 2-N-1 Traditional or Full Cut Off Wall Pack provides the ability to light your space in a full cut off mode or full cut off and traditional mode. Such a configuration is unique in the industry and provides further flexibility.

FIELD ADJUSTABLE OUTPUT
AND COLOR

Field adjustable features for output and CCT allows for the flexibility of controlling the fixture to your exact needs.

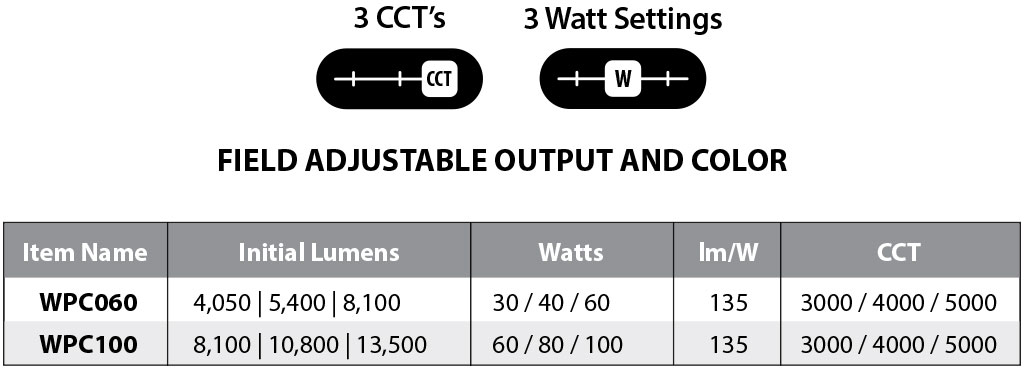

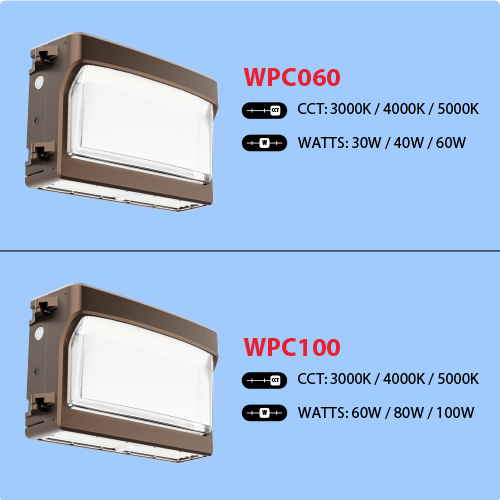

LED 2-In-1 Traditional or Full Cut Off Field Adjustable Output and color chart

FEATURES

LED flood light features



INNOVATIVE LIGHT OPTIONS
AND PERFORMANCE

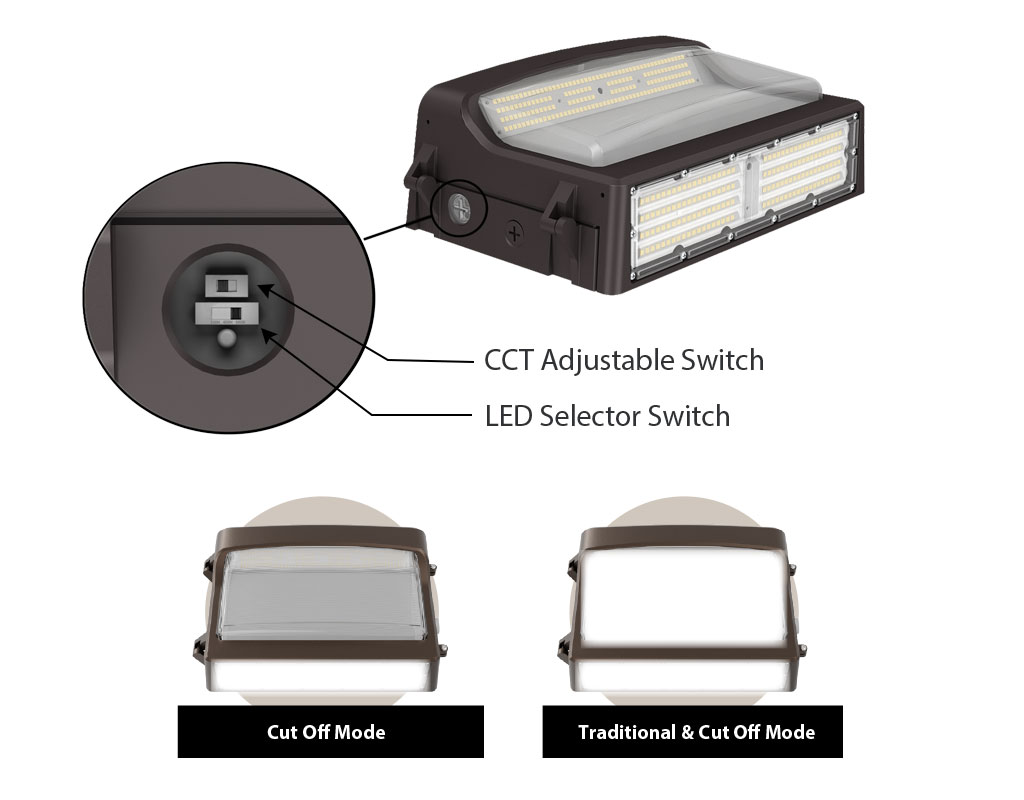

Traditional and cut off modes

You have the ability to not only have light output in a full cut off mode, but additionally can set the fixture in a full cut off and traditional mode.



OPTIONS

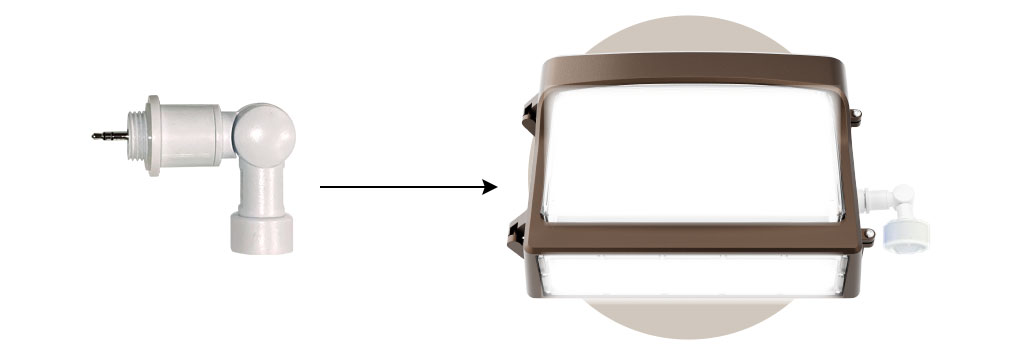

With the 1-Pin Sensor Socket you can expand the capabilities of the wall pack by installing any of our compatible sensors. Set up and manage your space with our controls or via the LiteSmart app with a touch of a finger!

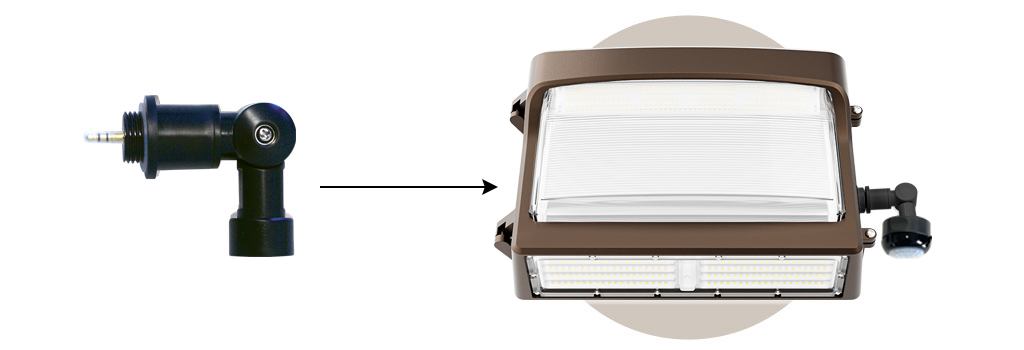

2-in-1 pluggable sensor

SENSORS AND CONTROLS

A wide option of sensor and control products allows you to manipulate, commission and control Litetronics Wall Packs, furthering the variety of flexible options offered.

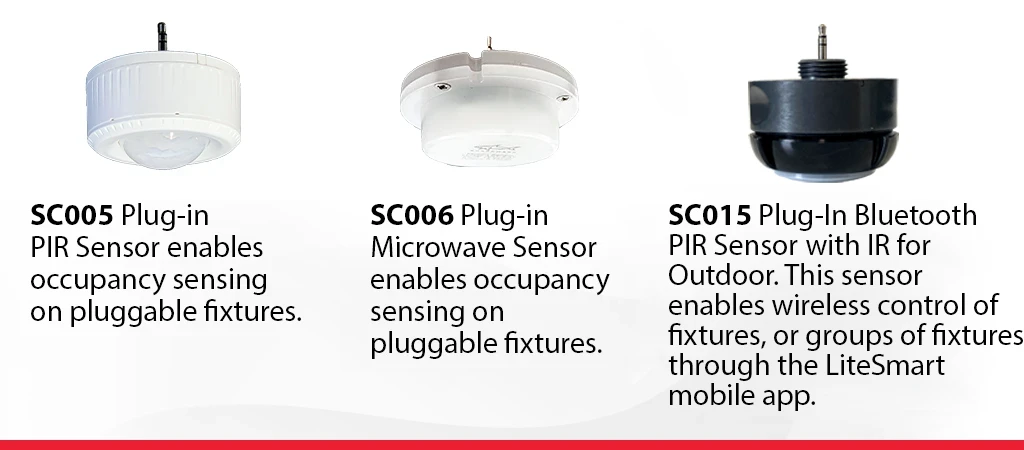

 SC005 Plugin Sensor. SC006 Plugin Microwave Sensor. SC008 Plugin Bluetooth PIR Sensor.

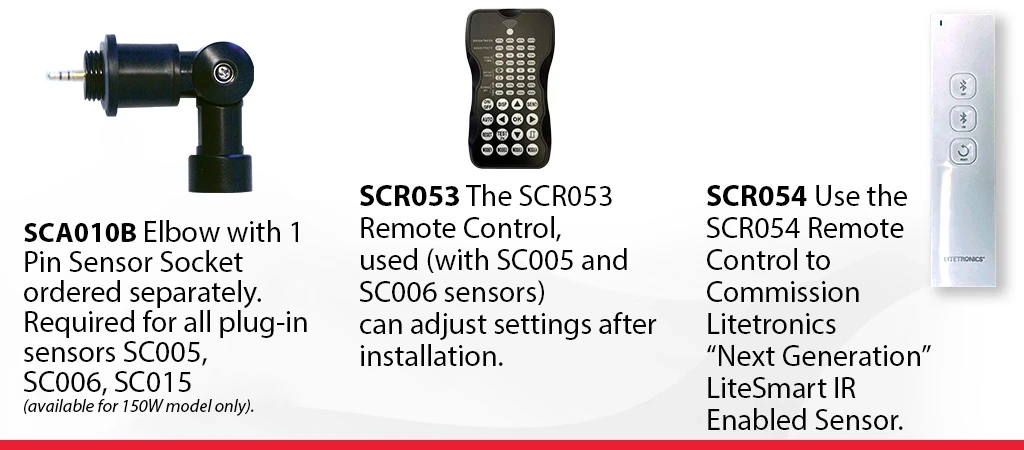

SC010 Elbow with 1 Pin Sensor Socket ordered separately. SCR053 Remote control used with SC005 and SC006. SCR054 Remote control to commission Litetronics IR enabled sensor.

Static overlay
LiteSmart is a mobile app that enables total management of lighting systems at the touch of your fingers.
Set up and manage
your space with LiteSmart.
DOWNLOAD NOW!
Download App On The Apple Store
Get It On Google Play

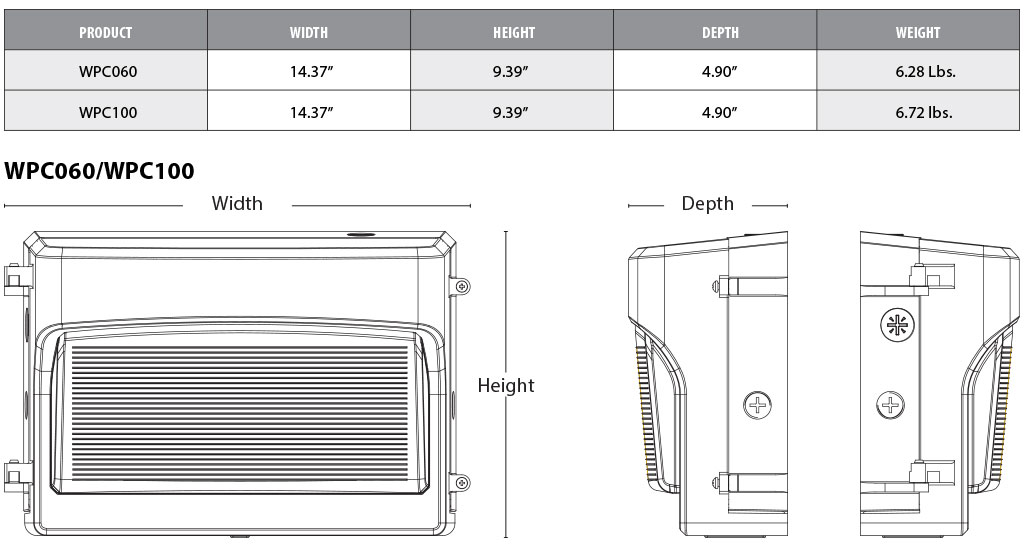

Dimensions / Weight

LED 2-in-1 traditional or full cut off wall pack dimensions, sizes and weight chart

Features and Specs

Features

  • Selectable wattage: WPC060: 30/40/60
  • Selectable wattage: WPC100: 60/80/100
  • Field Selectable CCT: (3000K, 4000K, 5000K)
  • Photocell and pluggable sensor socket
  • Compatibility with LiteSmart mobile app

Specs

  • Average rated life:50,000 hours (@L70)
  • Warranty:5 years
  • Operating temp: -40F to 113°F (-40°C to 45°C)
  • LPW:135
  • CRI: 80
  • Input voltage: 120-277V
  • Input frequency: 50/60Hz
  • Power factor: ≥0.95
  • THD: ≤20%
  • Surge protection: 4KV
  • Dimming: 0-10V
  • Whip/Cord: None
  • Sensor: Plug-In (Choice of MW, PIR, Bluetooth)
  • Beam angle: 93°
  • Lens: Polycarbonate Frosted
  • Color: Dark Bronze
  • IP rating: 65
  • Location Rating: Wet
  • Outdoor Rated: Yes
  • IC rated: No
  • UL listed: (Pending)
  • FCC listed: Yes
  • RoHS compliant: Yes
  • 5.1 Premium (Pending)

Wattage Lumens

Model# WPC060

  • Size: 14.37" x 9.39" x 4.90"
  • Weight: 6.28 lbs.
  • Wattages 30 | 40 | 60
  • CCT: 3000 | 4000 | 5000
  • Lumens: 4,050 | 5,400 | 8,100

Model # WPC100

  • Size: 14.37" x 9.39" x 4.90"
  • Weight: 6.72 lbs.
  • Wattages: 60 | 80 | 100
  • CCT: 3000 | 4000 | 5000
  • Lumens: 8,100 | 10,800 | 13,500

FOR MORE INFORMATION

Call 1-800-860-3392 or ask about our 60 day free trial to see the LED 2-In-1 Traditional or Full Cut Off Wall Pack in all their glory first hand.
