LED High Ceiling Panel

Delivers up to 55,000 lumens

Improve user experience

The LED High Ceiling Panel creates an aesthetically superior looking environment that delivers efficiency, functionality, and light quality. It is the perfect choice for a quality LED panel, at an affordable price, when environment spaces call for high output light performance.  Choose from two different color temperatures (4000K and 5000K), as well as three different wattages.  For the 2’x2’ fixture, wattage choices are 150, 170, and 215.  For the 2’x4’ fixture, wattage choices are 260, 290, and 325.

  • Achieve consistent light output from fixture to fixture, room to room
  • Set optimal light levels based on occupant preferences or time of day
  • Make adjustments quickly and easily throughout the day

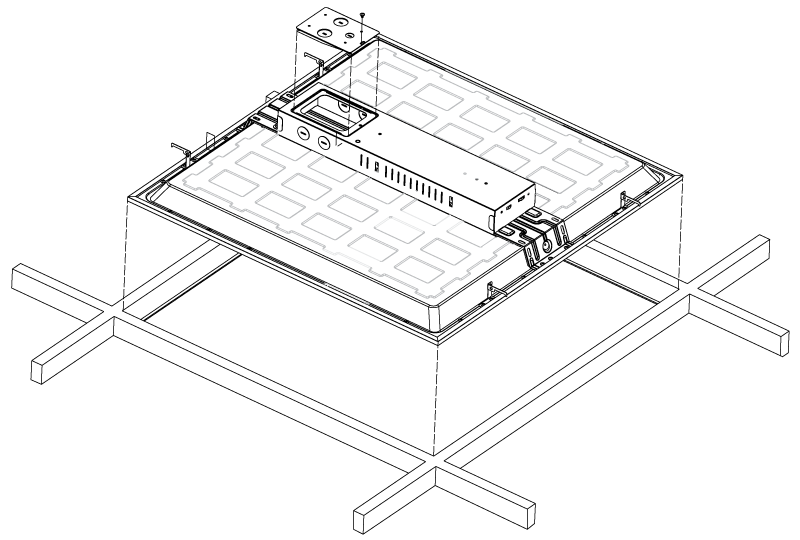

Install in minutes

Litetronics prides itself on designing products that are just as easy to install as they are to order. Our LED High Ceiling Panel can be installed in a matter of minutes. Simply clear the grid space you plan to use. Raise the new panel into place, letting it rest on the grid frame. Then, connect all wiring to the driver and close it up.

Better for business

This High Ceiling LED Panel provides energy-efficient, high quality output and superior protection in high impact applications such as gymnasiums and other recreational spaces. This fixture fits directly into standard grid ceilings, but can also be easily suspension mounted in high ceiling spaces to deliver sufficient light for the activities below.

Long term peace of mind

The LED High Ceiling Panel delivers immediate energy savings as well as an improved experience over fluorescent fixtures. Rated for up to 50,000 hours and backed by a 5-year warranty, you’re looking at well over a decade of uninterrupted, optimized light for your space.

Features and Specs

Features

  • 170 LPW
  • Selectable wattages 2' x 4'
    260 | 290 | 325
  • Selectable wattages 2' x 2'
    150 | 170 | 215
  • Selectable CCT 2' x 4'
    4000K | 5000K
  • Selectable CCT 2' x 2'
    4000K | 5000K
  • 0-10V dimming
  • 50,000-hour rated life
  • 5-year warranty

Specs

  • Input voltage: 120-277V
  • Input frequency: 50/60Hz
  • CRI: ≥80
  • Beam angle: 95°
  • Power factor: ≥0.9
  • UGR: 28
  • THD: <20%
  • Location rating: Damp
  • Lumens per Watt: 170
  • DLC/ETL/FCC/RoHS (pending)
  • Operating Temperature: -4°F to 122°F
  • Lens: Heat Resistant Teflon

Lead your industry

Many grid ceiling environments benefit from long-lasting, low-maintenance lighting. Here are some common markets and applications for the LED High Ceiling Panel:

  • Basketball courts
  • Gymnasiums
  • Recreational spaces
  • Commercial high areas
  • Food courts

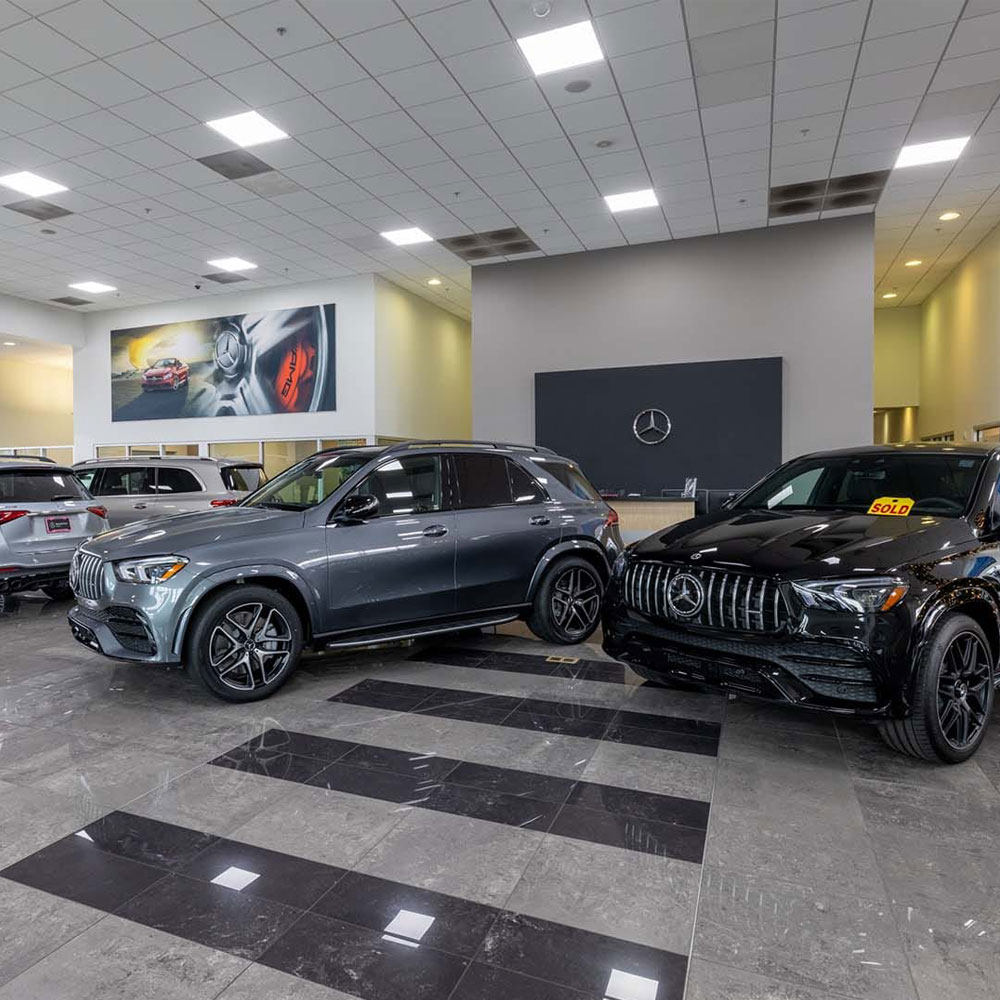

  • Auto dealer showrooms
Garage Lighting

Let's Talk Numbers

Our commercial LED High Ceiling Panels are moderately priced but loaded with all the options you’ll need to achieve optimal efficiency. Based on upfront cost, available rebates and an easy installation process, your project can be completed for less than you think.

So, what are you waiting for?

Request Pricing

To find the potential ROI for your upcoming project, use our Payback Calculator

For more resources on the LED High Ceiling Panel, visit our Resource Center

FAQS

Below are a few of the most frequently asked questions about the LED High Ceiling Panel.

Q:How does the adjustable wattage work?
A:

Each fixture has a range of wattages that can be selected. A higher wattage produces more lumens, while a lower wattage produces less lumens. Before installation, you can determine your target lumens (brightness) and adjust the wattage to that setting.

Q:Will this product fit into all ceiling grids?
A:

These LED High Ceiling Panels Suitable for 9/16” or 15/16” grid in both insulated ceilings and non-insulated ceilings. Access above ceiling required.
