LED Outdoor Flood Lights

It has never been easier to deliver light uniformity to your target application with Litetronics outdoor LED flood lights.

Versatile and selectable LED flood light outdoor fixtures

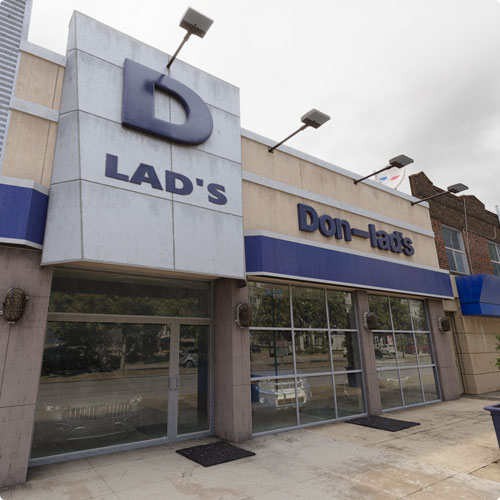

Ideal for lighting everything from parking lots and signs to store fronts, statues/monuments, flag poles, and more, Litetronics’ five new LED outdoor flood lights and area lights are each available in three color temperatures and three field-adjustable wattages, enabling installers or end users to achieve the perfect combination of aesthetics, color temperature, and lighting output for their unique application.

LED flood lights with field adjustable output and color

LED outdoor flood lights

Get Pricing

FIELD ADJUSTABLE OUTPUT
AND COLOR

Field adjustable features for output and CCT allows for the flexibility of controlling the flood light fixture to your exact needs.

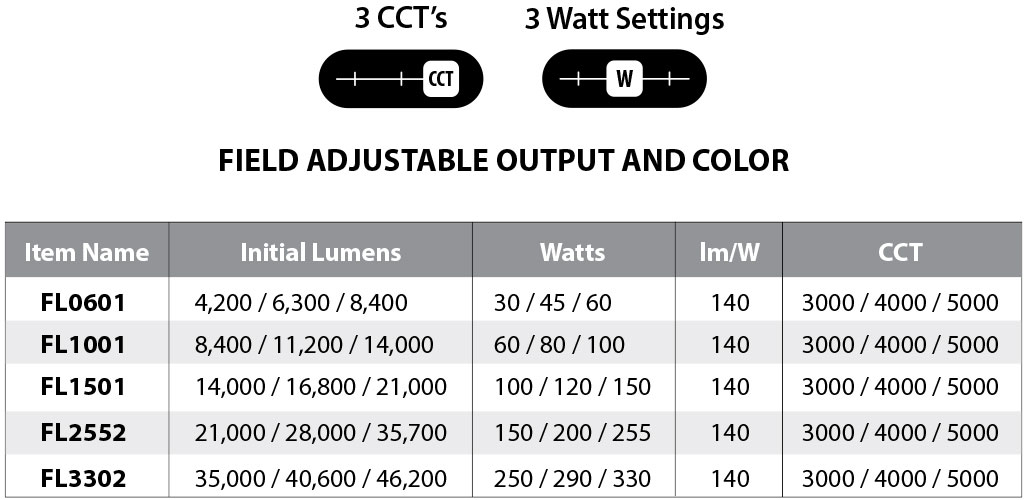

LED Flood Light Field Adjustable Output and color chart.

Litetronics LED Flood Light Features

Outdoor LED flood light features

“Litetronics is a long-standing company that offers high-quality, aesthetically-pleasing products, exceptional customer service, and an industry-leading warranty.”
– Glenda Nalle, John Nalle Lighting.

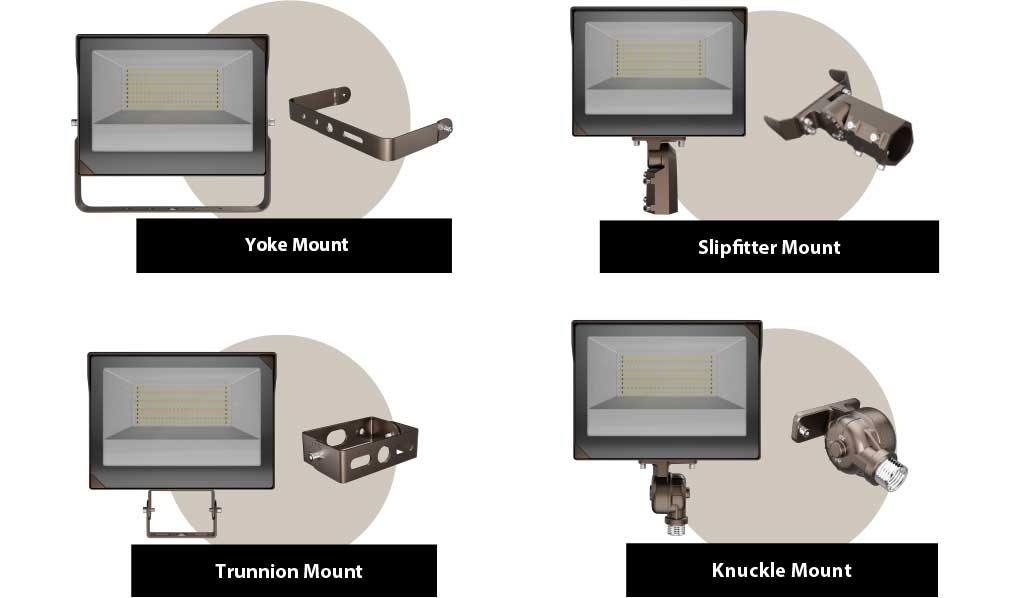

MOUNTING OPTIONS

We have multiple mounting options so that no matter the application need, we have a solution.

Outdoor LED flood light mounting options

NOTE: Different mounting options are offered by product. Refer to spec sheet.



FL1501, FL1001, FL1501 - LED Outdoor Light Fixtures

The Litetronics outdoor LED Floodlight fixture makes it easy to specify our product in numerous popular flood lighting applications.

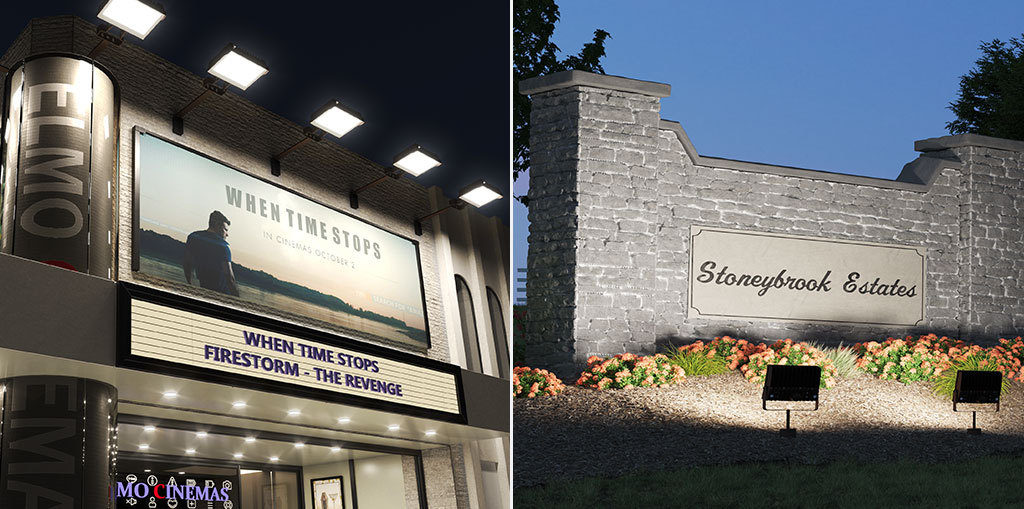

Monuments Signs • Parking Logts • Store Fronts • Yard and Lot Lighting • Building Facades • Flag Poles • Statues and Monuments

Learn More

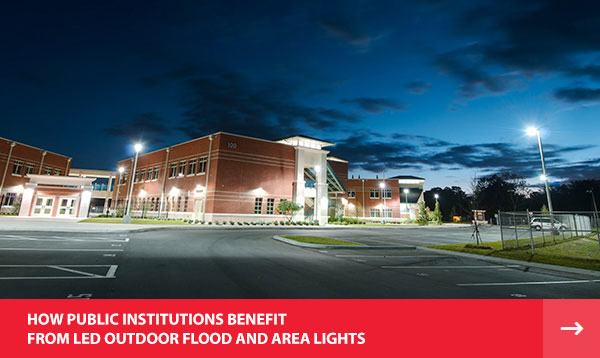

HOW PUBLIC INSTITUTIONS BENEFIT FROM LED OUTDOOR FLOOD AND AREA LIGHTS     LEVEL UP INDUSTRIAL LIGHTING WITH OUTDOOR LED LIGHTING SOLUTIONS

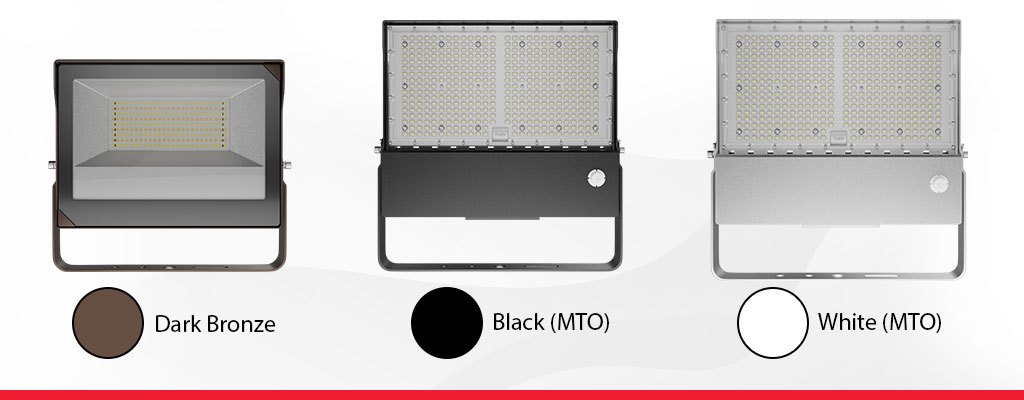

COLOR OPTIONS

Dark Bronze finish standard. Black and White (MTO).

LED outdoor flood light color options

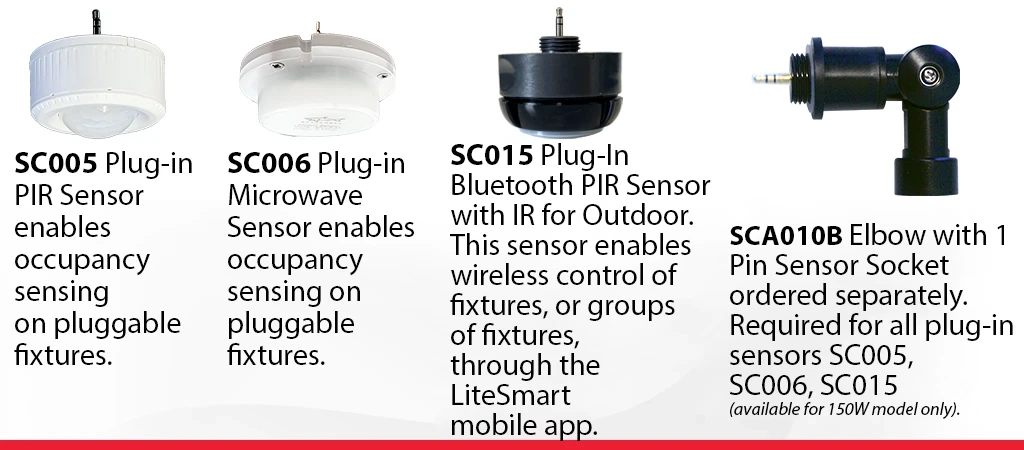

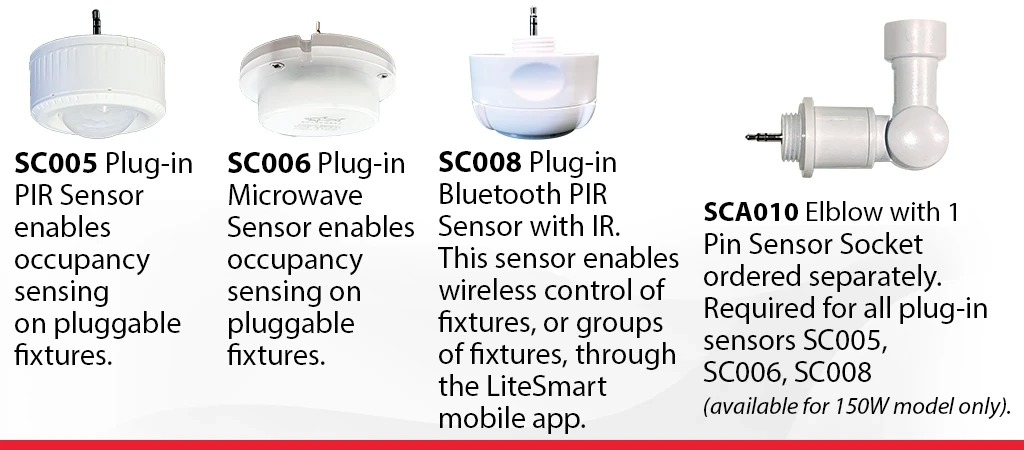

LED Lighting Sensors and Controls

YOU’RE IN CONTROL

From occupancy setting and Bluetooth technology, the Litetronics offering of sensors and controls provide limitless capabilities and options.

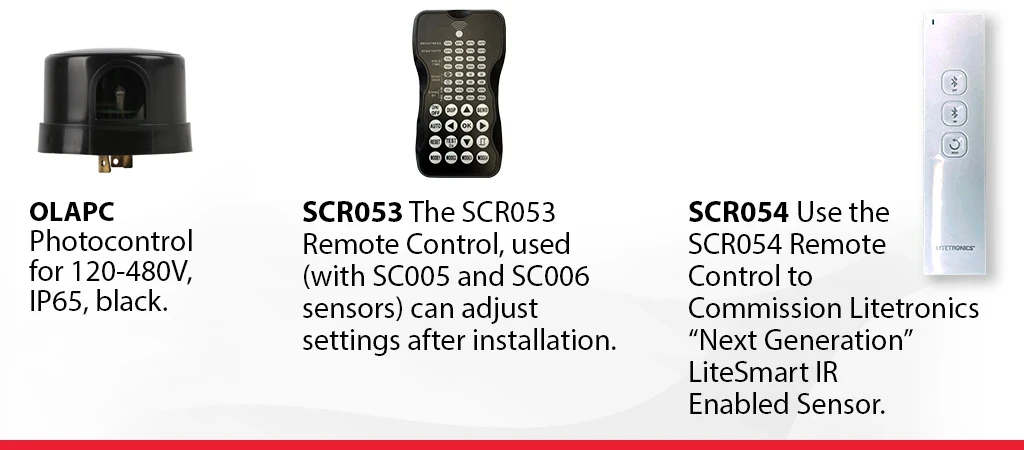

LED lighting sensors and controls

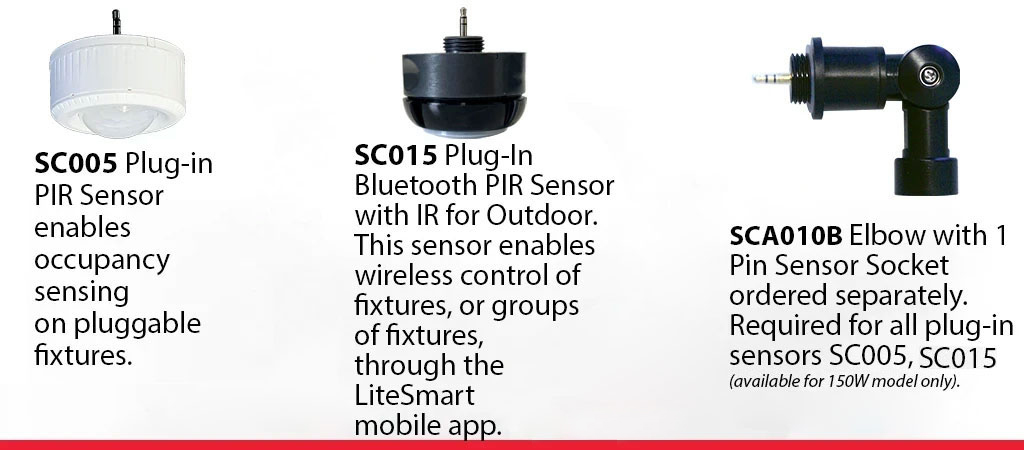

LED lighting sensors and controls

Note: 3-pin shorting cap and pluggable sensor socket comes standard.

Static overlay
LiteSmart is a mobile app that enables total management of lighting systems at the touch of your fingers.
Set up and manage
your space with LiteSmart.
DOWNLOAD NOW!
Download App On The Apple Store
Get It On Google Play

LED Outdoor Flood Light Features and Specs

Features

  • Selectable wattage: FL0601: 30/45/60
  • Selectable wattage: FL1001: 60/80/100
  • Selectable wattage: FL1501: 100/120/150
  • Selectable wattage: FL2552: 150/200/255
  • Selectable wattage: FL3302: 250/290/330
  • Field Selectable CCT: (3000K, 4000K, 5000K)
  • Yoke mount standard (slipfitter, trunnion, and knuckle mountings optional)
  • 3-pin shorting cap (255W and 330W models only)
  • Photocell, power controller
  • Pluggable sensor socket (150W, 255W and 330W models only)
  • Compatibility with LiteSmart mobile app (150W, 255W and 330W only)

Specs

  • Average rated life:50,000 hours (@L70)
  • Warranty:5 years
  • Operating temp - FL0601: -22F to 122°F (-30°C to 50°C)
  • Operating temp - FL1001: -22F to 122°F (-30°C to 50°C)
  • Operating temp - FL1501: -22F to 122°F (-30°C to 50°C)
  • Operating temp - FL2552: -40F to 113°F (-40°C to 45°C)
  • Operating temp - FL3302: -40F to 113°F (-40°C to 45°C)
  • LPW:140
  • CRI - FL0601: 80
  • CRI - FL1001: 80
  • CRI - FL1501: 80
  • CRI - FL2552: 70
  • CRI - FL3302: 70
  • Input voltage: 120-277V (480V option MTO)
  • Input frequency: 50/60Hz
  • Power factor: ≥0.95
  • THD:≤20%
  • Surge protection - FL0601: 2.5KV
  • Surge protection - FL1001: 4KV
  • Surge protection - FL1501: 4KV
  • Surge protection - FL2552: 10KV
  • Surge protection - FL3302: 10KV
  • Dimming: 0-10V
  • Whip/Cord - FL0601: 1.65'
  • Whip/Cord - FL1001: 1.65'
  • Whip/Cord - FL1501: 1.65'
  • Whip/Cord - FL2552: 1.65'
  • Whip/Cord - FL3302: 1.65'
  • Sensor:Plug-In: Choice of MW, PIR, and Bluetooth (150W, 255W and 330W only)
  • Beam angle - FL0601: 110°
  • Beam angle - FL1001: 110°
  • Beam angle - FL1501: 110°
  • Beam angle - FL2552: 140°
  • Beam angle - FL3302: 140°
  • Lens - FL0601: Clear glass
  • Lens - FL1001: Clear glass
  • Lens - FL1501: Clear glass
  • Lens - FL2552: Polycarbonate frosted
  • Lens - FL3302: Polycarbonate frosted
  • Color: Dark Bronze
  • IP rating: 65
  • Location Rating: Wet
  • Outdoor Rated: Yes
  • IC rated: No
  • UL listed: (Pending)
  • FCC listed: Yes
  • RoHS compliant: Yes
  • 5.1 Premium (Pending)

Wattage Lumens

Model# FL0601

  • Size: 9.21" x 7.68" x 2.28"
  • Weight: 14.233 lbs.
  • Wattages 30 | 45 | 60
  • CCT: 3000 | 4000 | 5000
  • Lumens: 4,200 | 6,300 | 8,400

Model # FL1001

  • Size: 10.94" x 8.86" x 2.72"
  • Weight: 7.275 lbs.
  • Wattages: 60 | 80 | 100
  • CCT: 3000 | 4000 | 5000
  • Lumens: 8,400 | 11,200 | 14,000

Model # FL1501

  • Size: 12.16" x 9.68" x 2.87"
  • Weight: 9.48 lbs.
  • Wattages: 100 | 120 | 150
  • CCT: 3000 | 4000 | 5000
  • Lumens: 14,000 | 16,800 | 21,000

Model # FL2552

  • Size: 14.96" x 15.75" x 4.02"
  • Weight: 16.094 lbs.
  • Wattages: 150 | 200 | 255
  • CCT: 3000 | 4000 | 5000
  • Lumens: 21,000 | 28,000 | 35,700

Model # FL3302

  • Size: 17.01" x 17.52" x 3.94"
  • Weight: 20.283 lbs.
  • Wattages: 250 | 290 | 330
  • CCT: 3000 | 4000 | 5000
  • Lumens: 35,000 | 40,600 | 46,200

Rebates in your area depend on your local utility company but have the potential to drastically reduce the upfront cost of your project and increase your return on investment. As a DLC Premium rated outdoor fixture, the LED Flood Light will qualify for the highest utility rebates.
