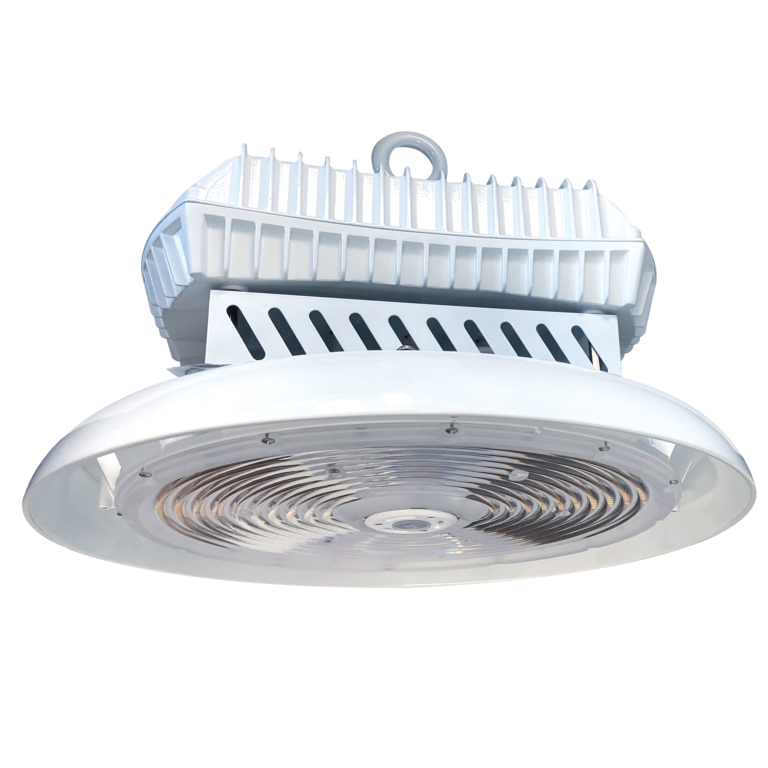

500W LED Round High Bay XL Watt and CCT Selectable

Item No: HBX500

The Litetronics LED High Bay XL is an affordable, direct replacement for HID fixtures that delivers an immediate reduction in energy costs while improving the consistency and quality of light within a space.

This lightweight and compact luminaire can be mounted directly to existing HID configurations, acting as a one-for-one replacement. Its 10’ power cord provides plenty of length for wiring and the whole installation can be completed in a matter of minutes. The fixture delivers 155 LPW with it’s 90° beam angle and circular light distribution provide even lighting throughout a space, increasing visual acuity and minimizing safety concerns.

Request Pricing

LED Round High Bay XL

Product Information:

Shape:
Diameter 17.7" Height 12.2"
Brand:
LED Round High Bay XL
Watts:
500
Voltage:
120-480V
Average Rated Life:
100,000 Hrs.
Initial Lumens:
46500 | 62000 | 77500
CRI:
>80
Color Temp:
3500K | 4000K | 5000K
Finish:
Powder Coat
Operating Temp:
-40°F to 131°F (-40°C to 55°C)
Power Factor:
≥0.9
Warranty:
10 Years
Beam Angle:
90°
THD:
≤20%
Lumens/Watt:
155
Suitable for Damp Locations:
Yes

Applications:

  • Supermarkets
  • Gymnasiums
  • Exhibition Halls
  • Warehouse/Storage
  • Factory/Workshops
  • Highway toll stations
  • Gas stations

Features:

  • 3 Selectable watt settings
  • Selectable CCT (3500K | 4000K | 5000K)
  • IP65 with wet location rating
  • 6kV surge protection
  • Polycarbonate clear lens
  • 0-10V dimming
  • 120-480V
  • Up to 155 LPW
  • Hook mounting
  • 10’ Power cord
  • 100,000 rated life
  • 10-year warranty
  • Optional pluggable sensor enabling occupancy sensing and daylight harvesting (sold separately)
  • IR Programming feature using the SCR054 control (Sold Separately)
  • Wireless setup and group control via LiteSmart mobile app
  • Local control via Bluetooth wall switch accessory (Sold separately)
