Combining top-tier efficiency with a refined architectural design, the LED
Volumetric Troffer is the perfect solution for modern indoor commercial
spaces, including standard grid ceiling applications.
The Volumetric Troffer with Sensor Socket takes indoor lighting control
and convenience to the next level. With optional occupancy sensing and
daylight harvesting (using a pluggable sensor, sold separately), the fixture
automatically reduces energy consumption while allowing each feature to
be tailored to occupant preferences.
Setup is fast and intuitive through the LiteSmart mobile app, which
provides Bluetooth® control for grouping fixtures, customizing settings,
and creating scene configurations—all directly from a mobile device. For
larger projects, commissioning is made simple with the IR Programming
feature using the SCR054 control (sold separately).

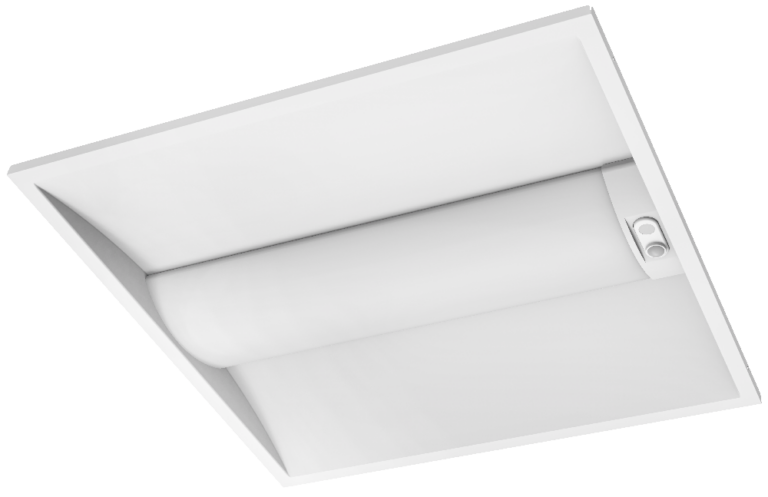

2″ x 4″ LED Volumetric Troffer with Sensor Socket
Item No: VLT4S
Product Information:
- Shape:
- Length 47.75″ Width 23.75" Height 2.09"
- Brand:
- LED Volumetric Troffer with Sensor Socket
- Watts:
- 50
- Voltage:
- 120-277V
- Average Rated Life:
- 100,000 Hrs.
- Initial Lumens:
- 3125 | 3750 | 5000 | 5625 | 6250
- CRI:
- 80
- Color Temp:
- 3000 | 3500 | 4000 | 5000 | 6000
- Finish:
- Powder Coated
- Operating Temp:
- -4°F to 122°F (-20°C to 50°C)
- Power Factor:
- ≥95
- Warranty:
- 10 Years
- Beam Spread:
- 115°
- THD:
- ≤20%
- Lumens/Watt:
- 125
- Suitable for Damp Locations:
- No
Applications:
- Schools & Universities
- Office & Muicipal Building
- Heathcare Facilities & Hospitals
- Retail Centers
Features:
- 5 Selectable watt settings 25W | 30W | 40W | 45W | 50W
- 5 Selectable CCT 3000K | 3500K | 4000K | 5000K | 6000K
- 0-10V Dimming
- Compatible with Emergency Battery Backup
- Optional local control via Bluetooth wall switch accessory
- 100,000-hour rated life (70,000 at High Temp.)
- 10-Year Warranty
- 120-277V
