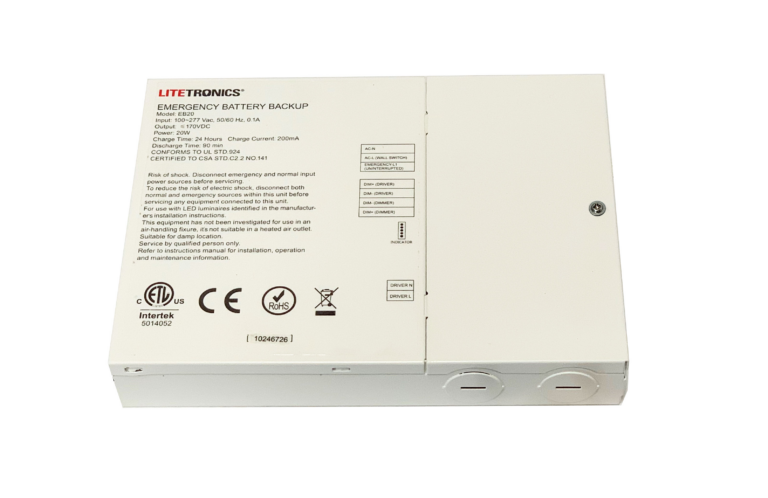

20W Emergency Battery Backup for high bays, fixtures and retrofits

Item No: EB20

This battery backup unit delivers emergency power to a wide range of Litetronics standard LED High Bays, fixtures and retrofits. In the event of a power outage, it supplies the connected fixture with 90-minutes of light, enabling sufficient visibility for occupants to safely exit the space.

This unit is intended to support higher output fixtures, up to 200W, providing enough power for the fixture to meet the standard footcandle requirements for emergency lighting. Automotic monthly self-testing ensures that the fixture is always ready, and the paired indicator module gives a visual confirmation of the operational status.

Designed with versatility in mind, this unit offers two options for mounting. When used with our range of grid ceiling solutions, the indicator module can be recessed in an adjacent panel. When used with drywall or open ceiling applications, our second option can be directly attached to the side of the fixture via adhesive. In both options, the indicator modules include lights that communicate the current status of the unit.

  • Provides 90 minutes of emergency light during power loss
  • Automatic monthly self-testing
  • Compatible with fixtures up to 200W
  • Manual testing via remote control (optional)
  • Indicator module mounting compatibility with grid ceiling,
    drywall, or open ceiling applications
  • ETL approved for damp locations
  • 50,000-hour rated life
  • 5-year warranty

Request Pricing

Product Information:

Average Rated Life:
Operating Temp:
32°F to 122°F
5 Years


  • Indoor
  • Emergency Lighting
  • Grid ceiling
  • High ceiling


  • FCC
  • ETL


  • Hospitality
  • Hospitals
  • Offices
  • Restaurants
  • Retail
  • Schools
