120-277V 100W 2-IN-1 TRADITIONAL OR FULL CUT OFF WALL PACK

Item No: WPC100

Litetronics LED 2-In-1 Traditional or Full Cut Off Wall Packs are available from 30W to 100W. The units are offered with selectable wattage and CCT (3000K, 4000K and 5000K), photocell, and pluggable sensor socket. Optional Sensors include PIR (SC005), Microwave (SC006) and our LiteSmart Sensor (SC008) enabling the same energy saving control but can be setup and managed on a group level via the LiteSmart mobile app to meet code and local ordinance.

The fixtures offer ease of installation with swing-open unit to facilitate mounting and electrical connections and include EVA cotton pad for wall mount installation.

Request Pricing

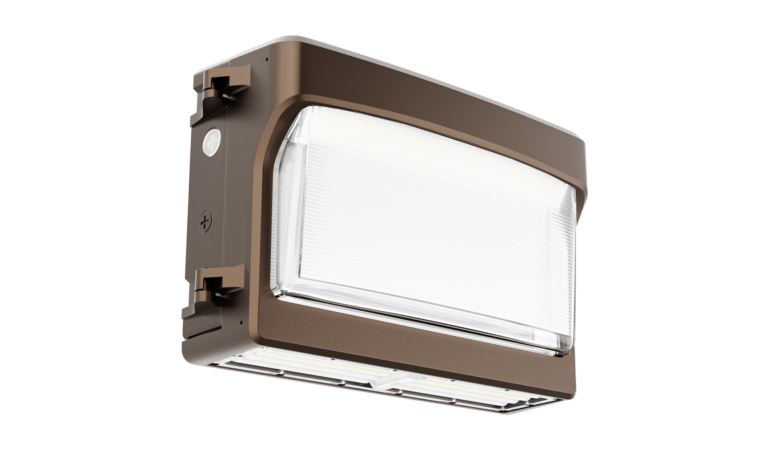

60w led 2-in-1 wall pack

Product Information:

Brand:
LED 2-In-1 Traditional or Full Cut Off Wall Pack
Watts:
100
Voltage:
120-277V
Average Rated Life:
50,000 hrs.
Luminaire Lumens:
8,400 | 10,800 | 13,500
CRI:
80
Color Temp:
3000K | 4000K | 5000K
Finish:
Matte Powder Coat
Operating Temp:
-40F to 113°F (-40°C to 45°C)
Power Factor:
≥.95
Warranty:
5 years
Beam Angle:
93°
THD:
≤ 20%
Lumens/Watt:
135
Suitable for Damp Locations:
Yes

Applications:

Features:

  • Compatibility with LiteSmart mobile app
  • Field selectable wattages and CCT (3000K, 4000K, 5000K)
  • Photocell and pluggable sensor socket
  • FCC
  • Bug Rating B3-U3-G3

Markets:

  • Building facades
  • Garage and dock doors
  • Loading dock and entry doors
  • Safety & security lighting
  • Schools, campuses
  • Commercial, industrial
  • Storage rental facilities
  • Multi-family, apartment complex
  • Columns & porte cochere
