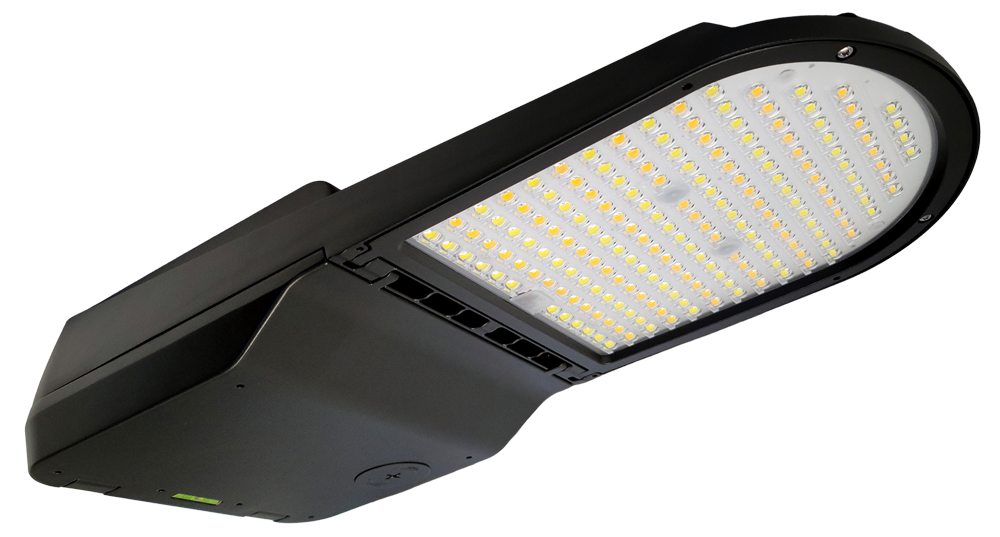

LED Roadway Pro

The LED Roadway Pro is designed to simplify roadway and street lighting while delivering top-tier efficiency. Featuring our all-in-one,120–480V driver, it works across any voltage and reduces the need for multiple SKUs.

PERFORMANCE
AND EFFICIENCY

The Perfect Blend

The LED Roadway Pro delivers power, precision, and performance for every outdoor project. Featuring a patented all-in-one 120–480V driver, selectable wattage and CCT, and durable, weather-sealed construction, it’s built to handle urban streets, parking lots, and industrial sites with ease.

Its tool-free lens frame design makes maintenance fast, while bug-proof optics, IP66 protection, and 20kV surge suppression guarantee lasting reliability. Whether you’re lighting city blocks or commercial spaces, the Roadway Pro ensures bright, uniform illumination that keeps communities safe and projects simple.



BUILT FOR EVERY ROAD

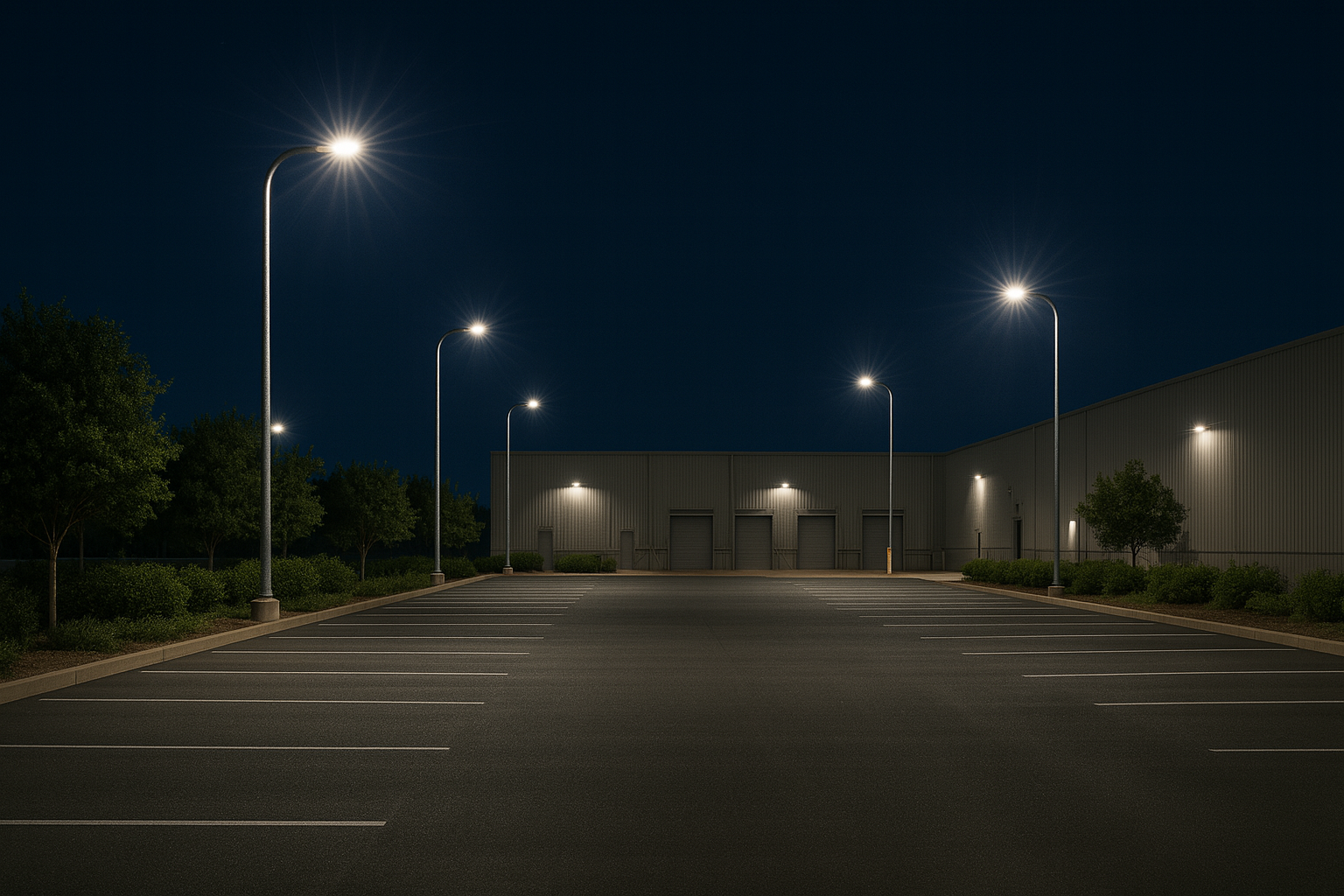

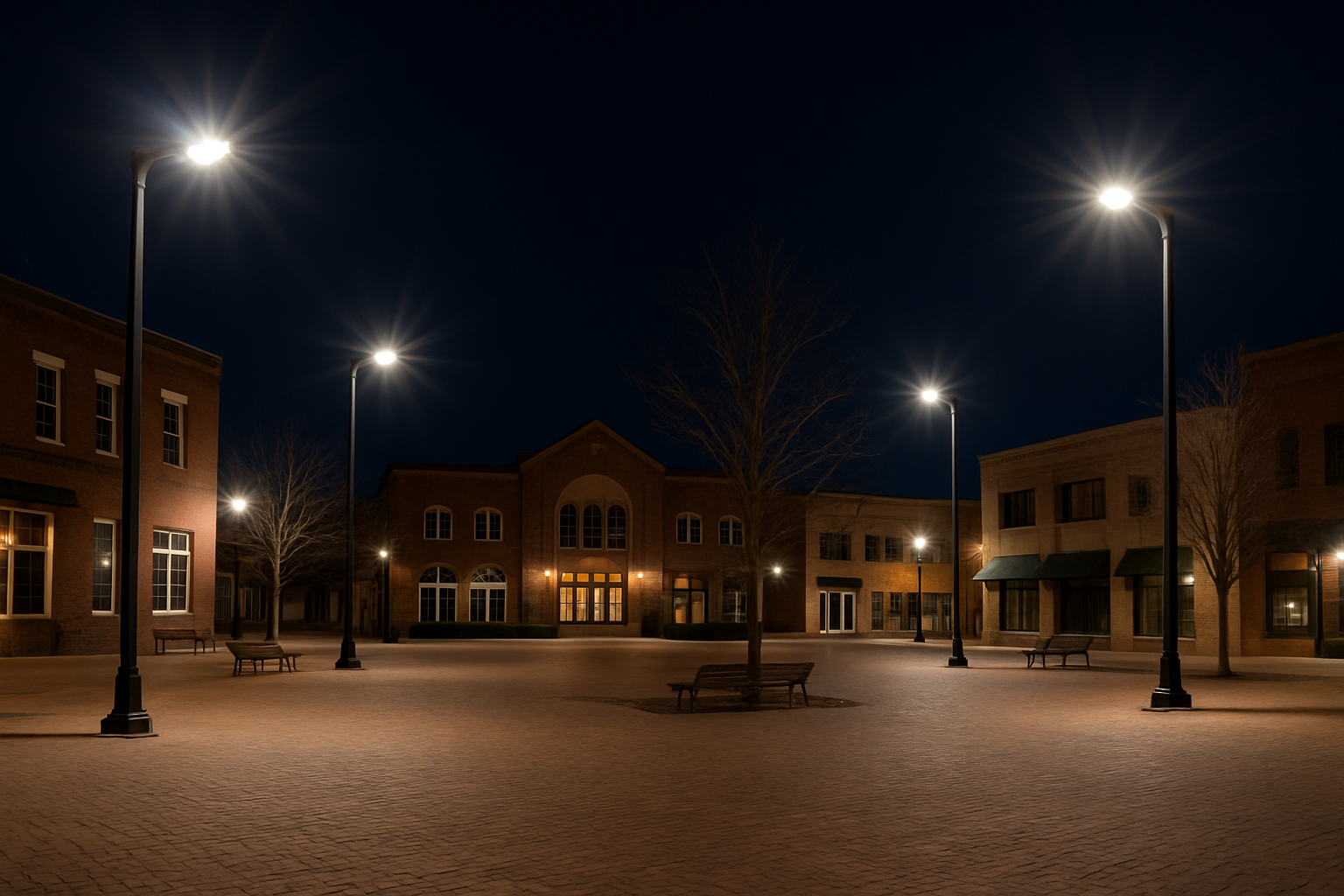

The LED Roadway Pro is designed to adapt to virtually any outdoor lighting environment. With selectable wattage and CCT options, a universal 120–480V driver, and a rugged, weather-sealed design, it delivers performance you can depend on — from urban streets to commercial lots.

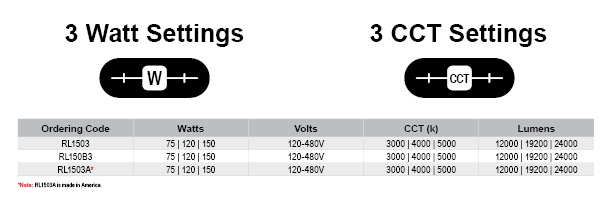

RLxxxx - Selectable Table Web Graphic

FEATURES

Area light features



SENSORS AND CONTROLS

LIMITLESS OPTIONS

A wide option of sensor and control products allows you to manipulate, commission and control Litetronics Roadway Pro, furthering the variety of flexible options offered.



Static overlay
LiteSmart is a mobile app that enables total management of lighting systems at the touch of your fingers.
Set up and manage
your space with LiteSmart.
DOWNLOAD NOW!
Download App On The Apple Store
Get It On Google Play

Features and Specs

Features

  • Selectable wattage: RL1503: 75 | 120 | 150
  • Selectable wattage: RL150B3: 75 | 120 | 150
  • Selectable wattage: RL1503A: 75 | 120 | 150
  • Field Selectable CCT: (3000K, 4000K, 5000K)
  • Quick Face Frame Lens Replacements, Type III Distribution (Standard)
  • Patented Fixture with 120-480V Driver
  • Optional Glare Shields
  • Pluggable sensor socket
  • Compatibility with LiteSmart mobile app

Specs

  • Average rated life: 100,000 hours
  • Warranty: 10 years
  • Operating temp: -40°F to 131° F (-40°C to 55°C)
  • LPW: 160
  • CRI: 70
  • Input voltage: 120-480V
  • Input frequency: 50/60Hz
  • Power factor: ≥0.9
  • THD: ≤20%
  • Surge protection: 20KV
  • Sensor: Plug-In Bluetooth
  • Lens: Type III (Type II, IV, V optional)
  • Color: Grey (Optional Black)
  • IP rating: 66
  • Location Rating: Wet
  • Outdoor Rated: Yes
  • IC rated: No
  • ETL listed: Yes
  • FCC listed: Yes
  • RoHS compliant: Yes
  • 5.1 Premium

Wattage Lumens

Model# RL1503

  • Size: 22.64" x 10.70" x 6.42"
  • Weight: 9.38 lbs.
  • Wattages: 75 | 120 | 150
  • CCT: 3000 | 4000 | 5000
  • Lumens: 12000 | 19200 | 24000

Model # RL150B3

  • Size: 22.64" x 10.70" x 6.42"
  • Weight: 9.38 lbs.
  • Wattages: 75 | 120 | 150
  • CCT: 3000 | 4000 | 5000
  • Lumens 12000 | 19200 | 24000

Model # RL1503A

  • Size: 22.64" x 10.70" x 6.42"
  • Weight:9.38 lbs.
  • Wattages: 75 | 120 | 150
  • CCT: 3000 | 4000 | 5000
  • Lumens: 12000 | 19200 | 24000

For More Information

Call 1-800-860-3392 or ask about our 60 day free trial to see the LED Area Lights in all their glory first hand.

So, what are you waiting for?

Request Pricing

To find the potential ROI for your upcoming project, use our Payback Calculator

For more resources on the LED Area Lights, visit our Resource Center
