Vivid™ LED Frame

Illuminate your imagination

The Vivid Advantage

In a highly competitive market, Vivid’s advantages over the competition are tangible and significant. The product line is engineered to include the sought after features you need in a proprietary design at an unbeatable value.

Vivid Market Applications

Vivid is a win for every stakeholder from owners and everyday users to installers, designers, and distributors. Vivid is ready to play an integral role in your next project.

One Product… Countless Options

Vivid has the ability for the user to choose from three different color temperatures, (3500, 4000 and 5000). You can additionally choose between three wattage settings as well. For the 2’x2’ product they are 18, 27 and 36. For the 2’x4’ size they are 24, 35 and 45.

With three field adjustable color temperatures and wattage choices, Vivid can easily meet all your lighting needs, while minimizing the need for multiple products to serve the same purpose.

Vivid comes in the most sought sizes (2’x 2′ and 2’x 4′) for grid ceiling applications providing you a solution to virtually all your lighting needs.

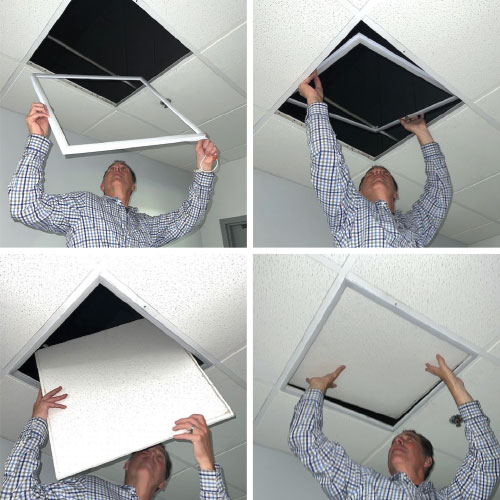

Installation Simplified

  • Easy to install. Quick and simple process allows units to be installed white minimizing time and material costs.
  • Suitable for virtually all indoor applications.
  • Vivid can easily be t-grid mounted.
  • Perfect for retrofit or new construction projects.

Features and Specs

Features

  • Selectable wattage: 2’ x 4’ product: 24/35/45
  • Selectable wattage: 2’ x 2’ product: 18/27/36
  • Selectable CCT: (3500K, 4000K, 5000K)
  • Size options: 2’ x 4’ or 2’ x 2’
  • DLC 5.1 Premium (Pending) listing
  • ETL Damp location rating
  • 0-10V Dimming
  • 50,000-hours rated life
  • 5-year warranty
  • Compatible with Emergency Battery Backup
  • UGR:<22 at all wattages

Specs

  • Average rated life:50,000 hours (@L70)
  • Warranty:5 years
  • Operating temp:32°F - 104°F
  • Surge protection:2.5KV
  • Input voltage:120-277V
  • Input frequency:50/60Hz
  • Power factor:≥0.95
  • THD:≤20
  • CRI:80
  • Beam angle:110°
  • Diffuser type:Polycarbonate frosted
  • Dimming:0-10VDC ANSI C137.x compliant
  • Minimum dimming:0% of rated lumen LED drive current
  • Location rating:Damp
  • ETL listed:Yes
  • RoHS compliant:Yes
  • DLC rating:2’x4’ 5.1 Premium (Pending) 2’x2’ 5.1 Premium (Pending)
  • IC rated:Yes
  • IP rating:20
  • LPW:125

Wattage and Lumens

Model# VLFT2

  • Size 2'x2'
  • Wattages 18 | 27 | 36
  • Lumens 2250 | 3375 | 4500
  • CCT 3500 | 4000 | 5000

Model # VLFT4

  • Size 2'x4'
  • Wattages 24 | 35 | 45
  • Lumens 3000 | 4375 | 5625
  • CCT 3500 | 4000 | 5000

For More Information

Call 1-800-860-3392 or ask about our 60 day free trial to see Vivid in all it’s glory first hand.
