LED Round High Bay PL

Top of the line efficiency, durability and versatility make this LED High Bay the perfect solution for high ceiling applications

Replace inefficient HID fixtures

The LED Round High Bay PL is a one-for-one replacement for HID fixtures in high ceiling locations.

With this LED upgrade, you can…

  • Reduce energy costs by up to 70% compared to high wattage fixtures
  • Cut maintenance costs associated with short-life bulbs
  • Eliminate operational delays caused by warm-up and re-strike times
  • Avoid safety concerns created by poor lighting conditions

Efficiency at its best

The High Bay PL goes above and beyond the standards, setting the bar for efficiency and delivering maximum energy savings. It delivers 140 lumens per watt, with lumen levels ranging from 16,000 – 33,000.

Need more bang for your buck?

  • Focused light output through a prismatic lens ensures wide-spread, even illumination, without the loss factor of traditional fixtures
  • They High Bay PL has a rated life of 100,000 hours, so even if its used 14 hours per day, you can expect close to two decades of uninterrupted light.

You may also be interested in our 50,000-hour, 5-year High Bay SL

Safety first

Visibility is key in areas with manufacturing lines, inventory storage, machinery, or where cleanliness and sanitation are required. Appropriate lumen levels, distribution of light and consistent, long life ensure high visual acuity without unexpected interruptions.

Designed for demanding environments

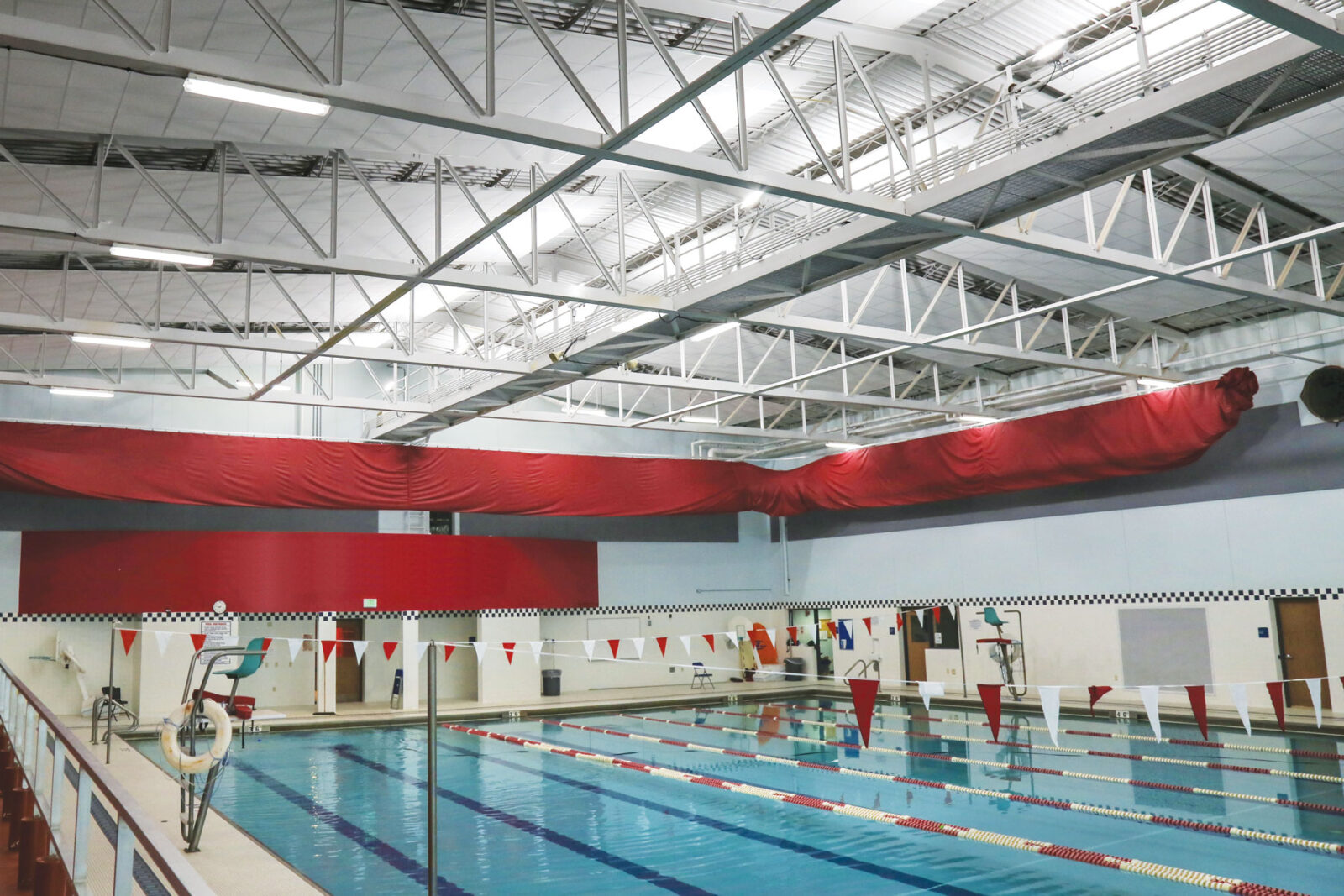

High ceiling applications can present their own unique challenges. Our round led high bays have been used across various environments, including industrial facilities, manufacturing plants, big box retail centers, and even school swimming pools. And while each application has different challenges, the PL was built for tough conditions.

  • Superior surge protection (10kV) eliminates outages and repair costs caused by power surges
  • Backed by an IP69K rating, the fixture is dust-tight and completely sealed to moisture, even high pressure jets
  • The polycarbonate lens is extremely durable and impact resistant across a range of temperatures.
  • The PL can take the heat, operating at full efficiency at temperatures ranging from -40°F to 149°F

Set your preferences

Customizing this high bay to work for you is easy. With a built-in PIR sensor, you can fine-tune sensor settings after installation via remote control. This enables complete control over…

  • Occupancy sensing
  • Daylight harvesting
  • Dimming
  • Hold time

Easy installation

Litetronics prides itself on designing products that are just as easy to install as they are to order. The LED High Bay PL has a variety of mounting options to fit each application.

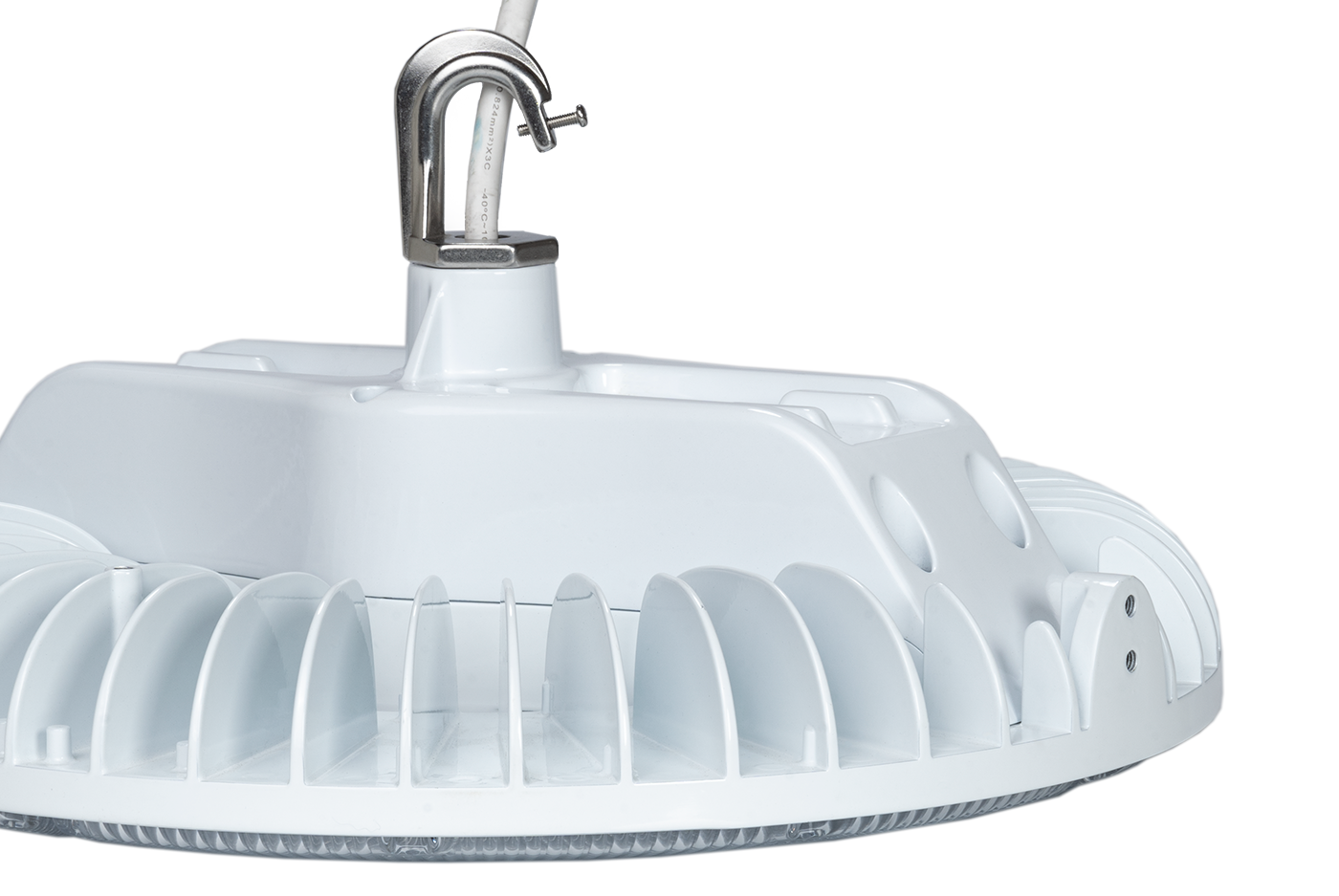

  • The standard snap hook enables easy snap hook attachment to existing HID layouts or structural mounts.

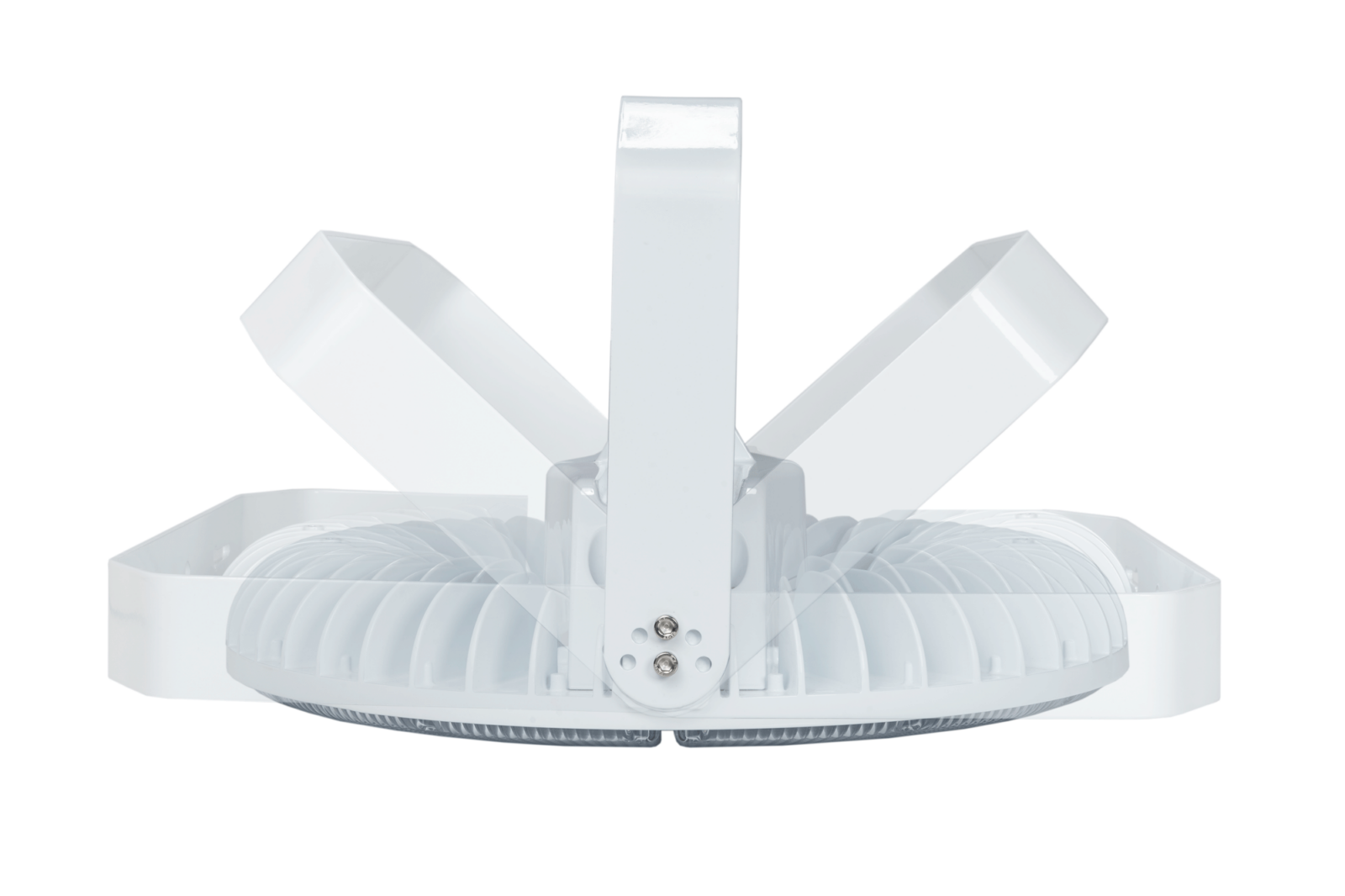

  • A yoke mount bracket is available to enable multi-directional lighting from any ceiling or wall mounted location
  • The PL can be pendant mounted with ¾” NPT pipe by simply unscrewing the snap hook

Choose the right fit

The LED High Bay PL comes in three different models, each designed with unique requirements in mind.


The “standard” model is available with or without a built-in sensor. Each option comes with 0-10V dimming and is available with the following lumen options:

  • 16,100 lumens (115W)
  • 24,500 lumens (175W
  • 33,600 lumens (240W)


High Temperature

The high temp model delivers efficiency in consistently higher temperature environments, ranging from -40° F to 149° F. To meet the demands of these applications, this model also comes with a corrosion resistant coating.

  • 16,100 lumens (115W)
  • 24,500 lumens (175W)
  • 30,800 lumens (220W)


High Voltage

The 480V model is available for commercial or industrial applications where the power specifications of the building make it a requirement.

  • 16,100 lumens (115W)
  • 24,500 lumens (175W)
  • 33,600 lumens (240W)


Earn top rebates

Rebates in your area depend on your local utility company but have the potential to drastically reduce the upfront cost of your project and increase your return on investment. As a DLC Premium rated luminaire, the LED High Bay PL will qualify for the highest utility rebates.

Find rebates in your area

Update your space

Many high ceiling facilities benefit from long lasting, low maintenance lighting. Here are some common markets and applications for the High Bay SL:

  • Warehouse and storage
  • Retail centers
  • Manufacturing floors
  • Industrial facilities
  • Sports facilities and gyms

Let's talk numbers

The LED High Bay PL is moderately priced but loaded with all the options you’ll need to achieve optimal efficiency. Based on available rebates and low labor costs for installation, your project can be completed for less than you think.

So, what are you waiting for?

Request Pricing

To find the potential ROI for your upcoming project, use our Payback Calculator

For more resources on the LED High Bay PL, visit our Resource Center


Below are a few of the most frequently asked questions about the LED High Bay PL.

Q:Is the High Bay PL available without the sensor?

Yes. The standard model is available without a built-in sensor for all three available wattages.

Q:Can I use the remote control to change settings on multiple fixtures?

Yes. The same remote control can be used to adjust each and every high bay. Once you have your settings, you can save those settings under 1 of 4 “modes.” That way, each fixture can be programmed with the touch of one button.

Q:Can this high bay be pendant mounted?

Yes. The fixture can be pendant mounted with the help of our Pendant Mounting Cover, part # HBCAM20. View the spec sheet for details.
