Yes. The High Bay Circular Pro comes standard without a built-in sensor. Plug-in sensors are optional and can be added at any time for occupancy sensing or Bluetooth app control.
Replace inefficient fixtures
The LED High Bay Circular Pro is a one-for-one replacement for traditional fixtures in high ceiling locations. With this LED upgrade, you can…
- Reduce energy costs by 60-80% over HID fixtures
- Eliminate operational delays caused by warm-up and re-strike times
- Cut routine maintenance costs associated with short-life bulbs
- Avoid safety concerns created by poor lighting conditions
Read the case study on how our high bays helped improve visibility and reduce energy for this community pool.
High ceilings. High performance.
The High Bay Circular Pro is a premium fixture, delivering top-of-the-line efficiency for ceilings ranging from 20′ to 40′.
- Operates at 160 LPW for the HBCP150 and 167LPW for HBCP240 with lumen levels ranging from 12,000 to 40,050
- Rated for a 100,000-hour life in temperatures ranging from -40F to 131F (-40C to 55C) or 70,000-hour for high temperature of -40F to 149F (-40C to 65C)
- Delivers focused, even light at a 100° beam angle ensuring coverage from fixture to fixture
Safety first
Visibility is key in areas with manufacturing lines, inventory storage, machinery, or where cleanliness and sanitation are required. Appropriate lumen levels, distribution of light and consistent, long life ensure high visual acuity without unexpected interruptions.
Up to the challenge
The High Bay Circular Pro is built to perform in demanding industrial and commercial environments, from warehouses and manufacturing facilities to retail centers and gymnasiums. Designed for durability, efficiency, and long-term reliability, it delivers consistent performance even in harsh conditions.
- 6kV surge protection helps prevent downtime and protects the fixture from electrical disturbances
- IP65 and IK08 ratings ensure the fixture is dust-tight, water-resistant, and rugged enough for impact-prone areas

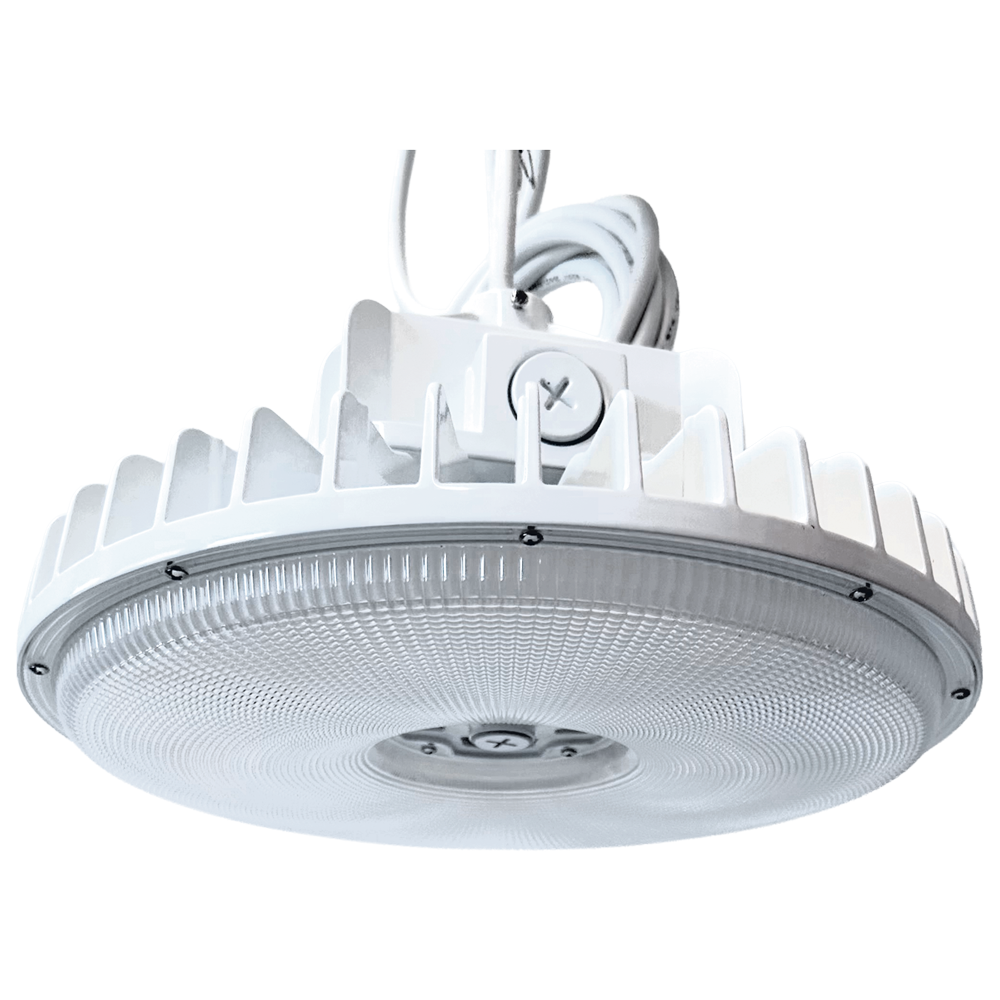

- Durable poly-carbonate prismatic lens provides long-lasting clarity and uniform illumination
- High-temperature performance—maintains full efficiency up to 131°F (55°C), with optional high-temp rated to 149°F (65°C)
Customize energy use
Each High Bay Circular Pro can be tailored to match the exact lighting needs of your facility. With field-selectable wattage and CCT, plus optional plug-in sensors, the fixture offers flexible control over energy use and performance.

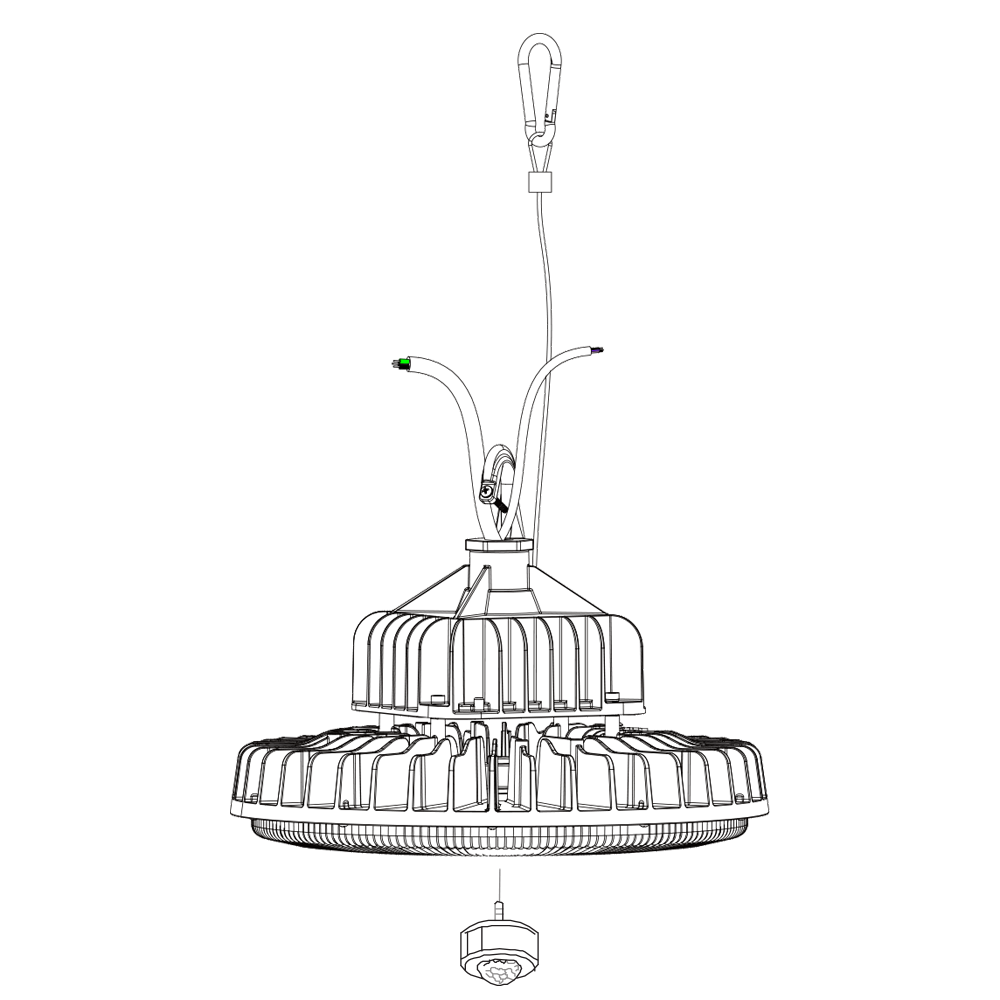

- Each fixture can operate with or without a plug-in occupancy sensor
- Sensors can be added at any time for daylight harvesting or motion detection
- Sensor settings can be adjusted from the ground using the compatible remote control
Adaptability is key
Litetronics designs products that are as straightforward to install as they are to specify—and the High Bay Circular Pro is no exception. With multiple mounting options, it adapts easily to a wide range of facilities and ceiling types.
- The standard hook mount allows fast installation in most high-bay environments
- An optional swivel yoke mount provides precise aiming and directional control

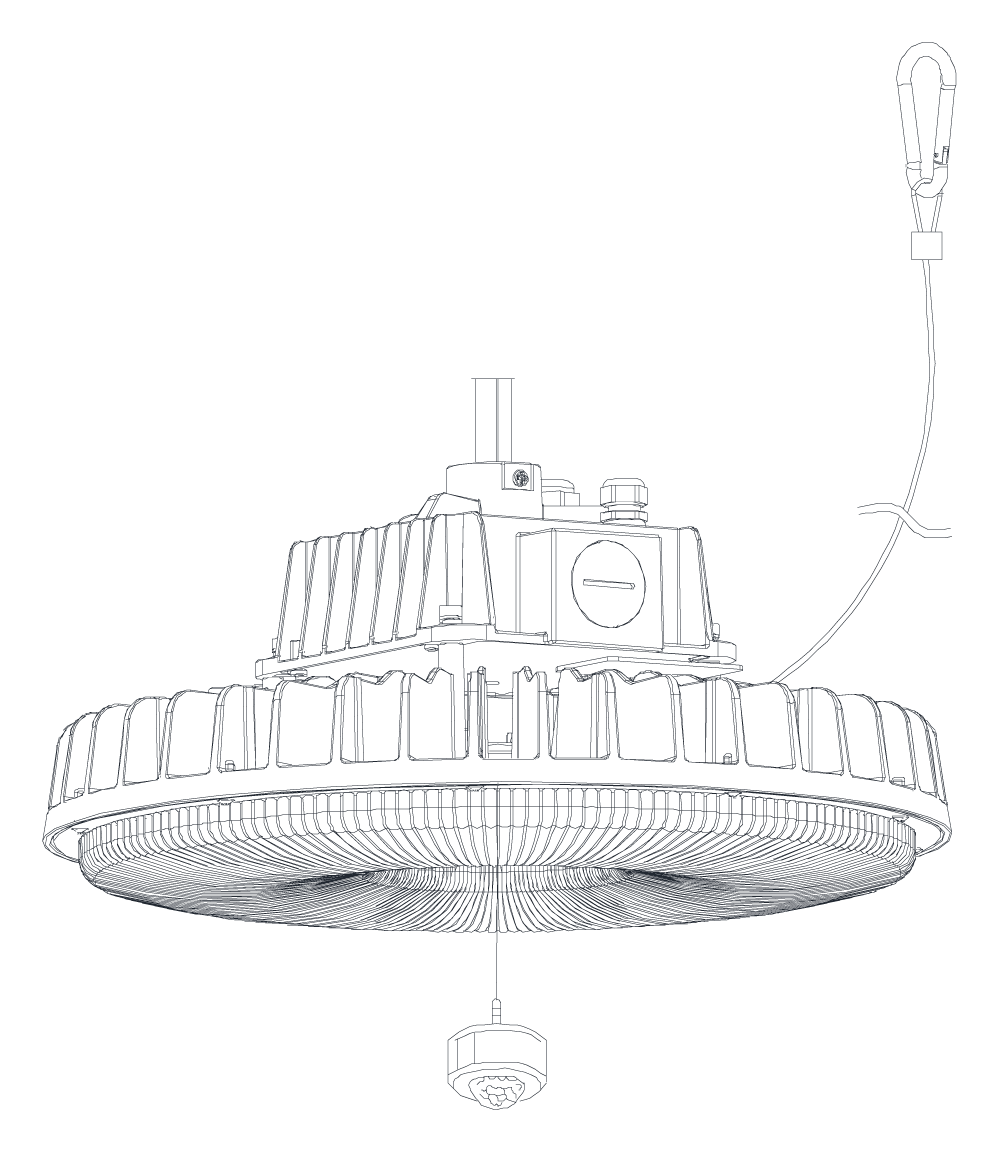

- The fixture can also be pendant mounted, offering flexibility for spaces with unique mounting requirements
Earn top rebates
Rebates in your area depend on your local utility company but have the potential to drastically reduce the upfront cost of your project and increase your return on investment. As a DLC Premium rated luminaire, the LED High Bay Circular Pro will qualify for the highest utility rebates.
Update your space
Many high ceiling facilities benefit from long lasting, low maintenance lighting. Here are some common markets and applications for the High Bay Circular Pro:
- Warehouse and storage
- Retail centers
- Manufacturing floors
- Industrial facilities
- Sports facilities and gyms (Swimming pools not recommended)
Let's talk numbers
The LED High Bay Circular Pro is moderately priced but loaded with all the options you’ll need to achieve optimal efficiency. Based on available rebates and low labor costs for installation, your project can be completed for less than you think.
So, what are you waiting for?
To find the potential ROI for your upcoming project, use our Payback Calculator
For more resources on the LED High Bay PL, visit our Resource Center
FAQs
Below are a few of the most frequently asked questions about the LED High Bay Circular Pro.
Q:Is the High Bay Circular Pro available without a sensor?
Q:Can I use the remote control to change settings on multiple fixtures?
Yes. The compatible remotes (SCR053 or SCR054) allow you to adjust sensor settings from the ground. Once settings are configured, the same remote can be used to apply those settings to additional fixtures.
Q:Can this high bay be pendant mounted?
Yes. The High Bay Circular Pro supports pendant mounting using the optional pendant mount accessory (HBCPAM21). Refer to the spec sheet for installation details.
