LED Area Lights Pro

Engineered for every outdoor application, the LED Area Light Pro combines selectable wattage, CCT, and optical distributions. Featuring a universal 120–480V driver, 20kV surge protection, and optional smart controls, it delivers powerful, adaptable performance that simplifies any lighting project.

PERFORMANCE AND EFFICIENCY

The Perfect Fit for Every Outdoor Space

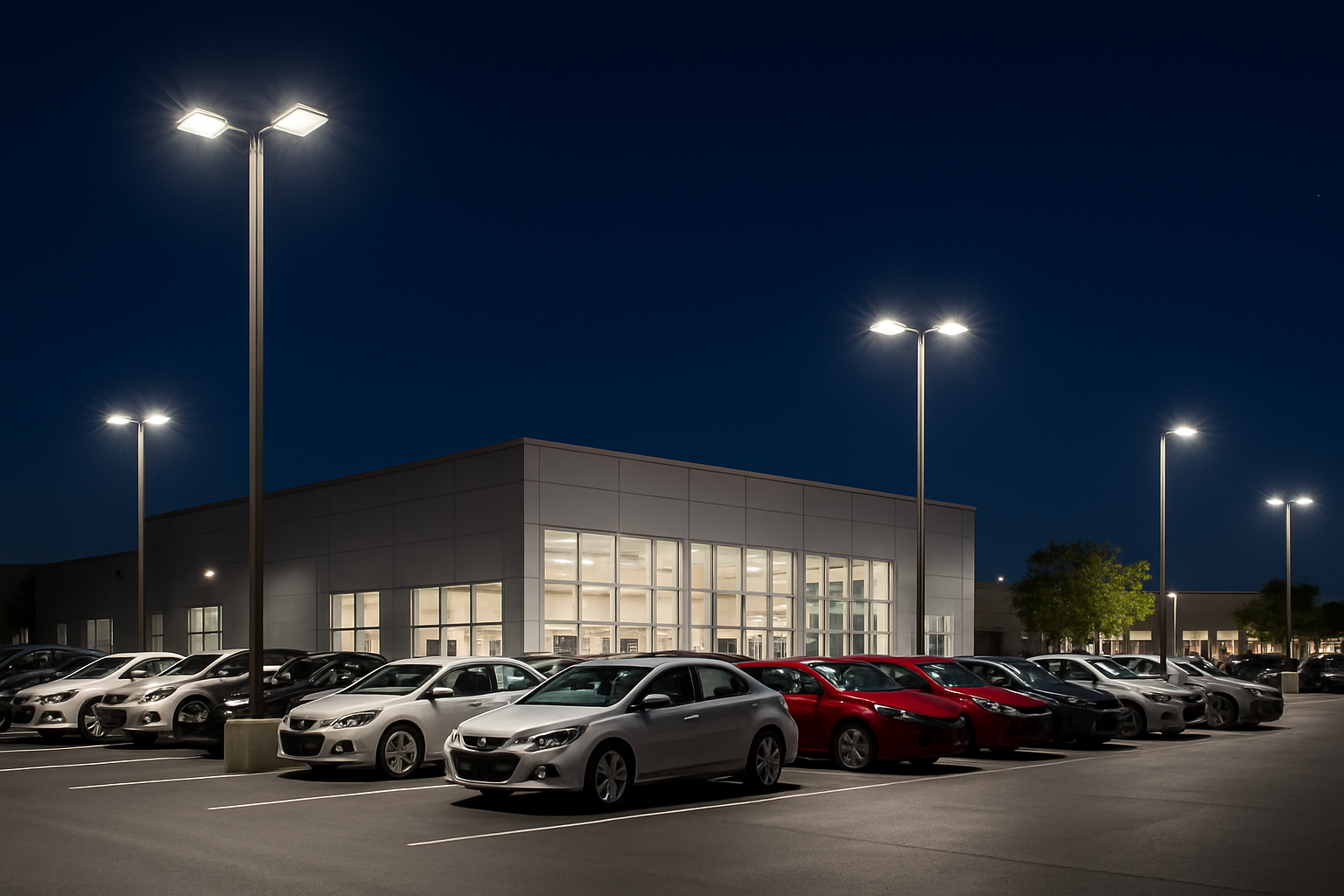

From parking lots and car dealerships to schools, campuses, industrial yards, and commercial centers, the LED Area Light Pro delivers consistent, high-performance illumination wherever it’s needed. With field-selectable wattage, color temperature, and optical distributions, it provides unmatched versatility, making it the ideal solution for virtually any outdoor lighting application.



FIELD ADJUSTABLE
OUTPUT AND COLOR

Field adjustable features for output and CCT allows for the flexibility of controlling the fixture to your exact needs.

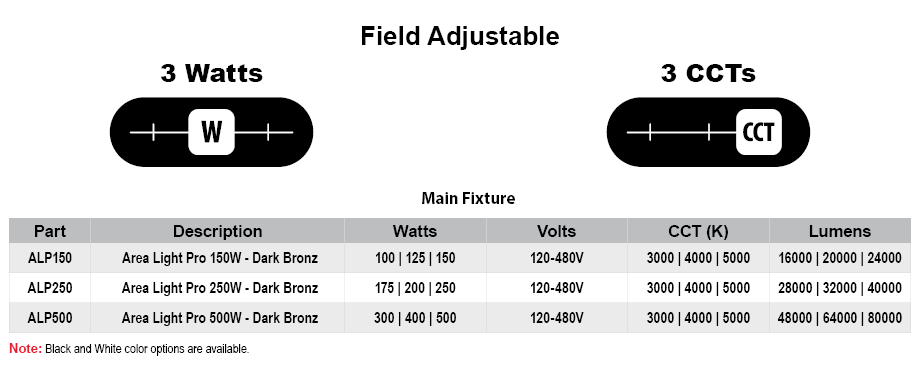

Field adjustable output and color chart

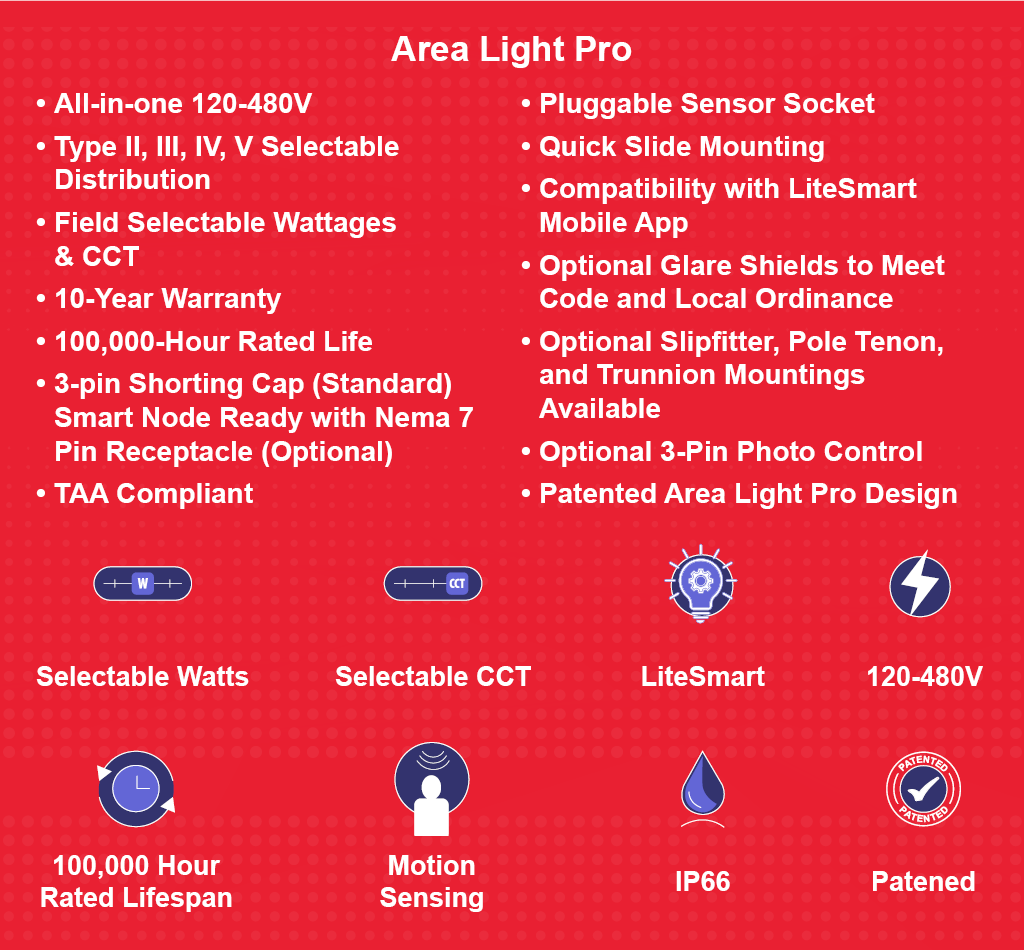

FEATURES

Area light features

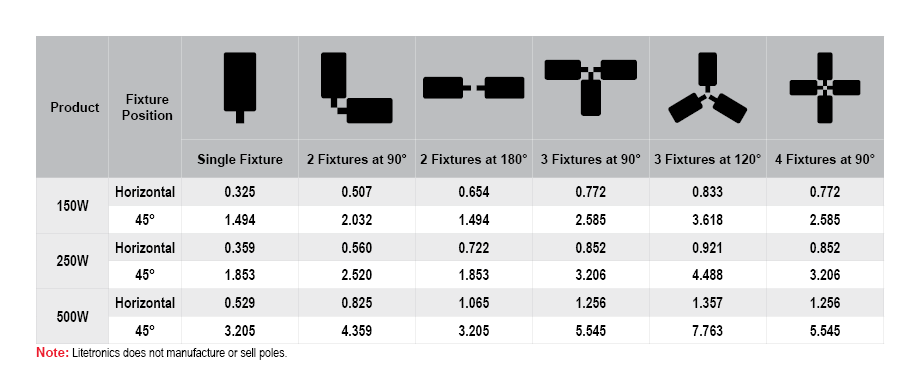

CONFIGURED TO YOUR NEEDS

From single to double to quad configurations, Litetronics Area Lights Pro can accommodate the needed number of fixtures per pole to meet all application needs. ( Litetronics does not manufacture or sell poles.)

SENSORS AND CONTROLS

LIMITLESS OPTIONS

A wide option of sensor and control products allows you to manipulate, commission and control Litetronics Area Light Pro, furthering the variety of flexible options offered.



Static overlay
LiteSmart is a mobile app that enables total management of lighting systems at the touch of your fingers.
Set up and manage
your space with LiteSmart.
DOWNLOAD NOW!
Download App On The Apple Store
Get It On Google Play

Features and Specs

Features

  • Selectable wattage: ALP150: 100 | 125 | 150
  • Selectable wattage: AL250: 175 | 200 | 250
  • Selectable wattage: AL500: 300 | 400 | 500
  • Field Selectable CCT: (3000K, 4000K, 5000K)
  • Slipfitter mount standard (trunnion, yoke, direct and universal mountings optional)
  • Type II, III, IV, V Selectable
  • Optional Shields to meet code and ordinance
  • Pluggable sensor socket
  • Compatibility with LiteSmart mobile app

Specs

  • Average rated life: 100,000 hours
  • Warranty: 10 years
  • Operating temp:-40F to 122°F (-40°C to 50°C)
  • LPW: 160
  • CRI: >80
  • Input voltage:120-480V
  • Input frequency: 50/60Hz
  • Power factor: ≥0.9
  • THD: ≤20%
  • Surge protection:20KV
  • Dimming: 0-10V with LiteSmart Bluetooth control system
  • Whip/Cord: 1.6'
  • Sensor: Plug-In Occupancy Motion Sensor (Choice of Microwave, PIR, Bluetooth)
  • Beam angle: Type II, III, IV, V Selectable
  • Lens: Polycarbonate
  • Color: Dark Bronze/Black/White
  • IP rating: 65
  • Location Rating: Wet
  • Outdoor Rated: Yes
  • IC rated: No
  • ETL listed: (Pending)
  • FCC listed: Yes
  • RoHS compliant: Yes
  • 5.1 Premium (Pending)>
  • TAA Compliant: Yes

Wattage Lumens

Model# ALP150

  • Size: 16.3" x 11" x 2.4"
  • Weight: 8.5 lbs.
  • Wattages: 100 | 125 | 150
  • CCT: 3000 | 4000 | 5000
  • Lumens: 16000 | 20000 | 24000

Model # ALP250

  • Size: 17.9" x 16.3" x 2.4"
  • Weight: 9 lbs.
  • Wattages: 175 | 200 | 250
  • CCT: 3000 | 4000 | 5000
  • Lumens 28000 | 32000 | 40000

Model # ALP500

  • Size: 26.8" x 14.2" x 2.4"
  • Weight: 14.6 lbs.
  • Wattages: 300 | 400 | 500
  • CCT: 3000 | 4000 | 5000
  • Lumens: 48000 | 64000 | 80000

For More Information

Call 1-800-860-3392 or ask about our 60 day free trial to see the LED Area Light Pro in all their glory first hand.
