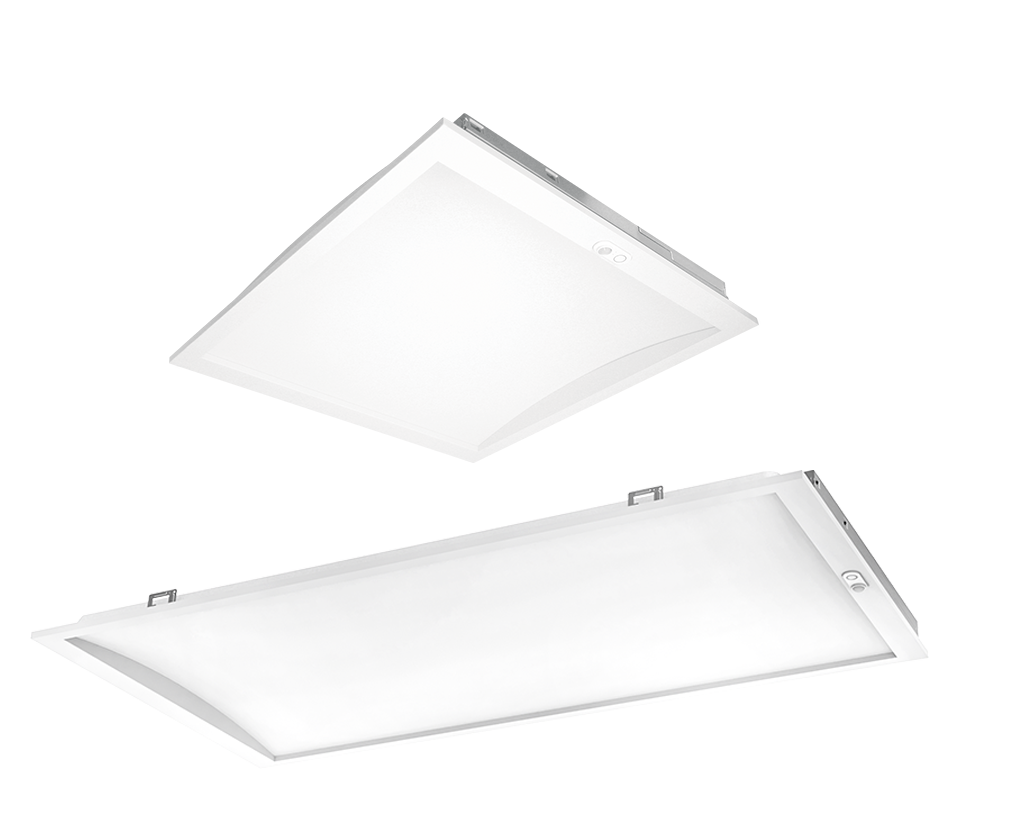

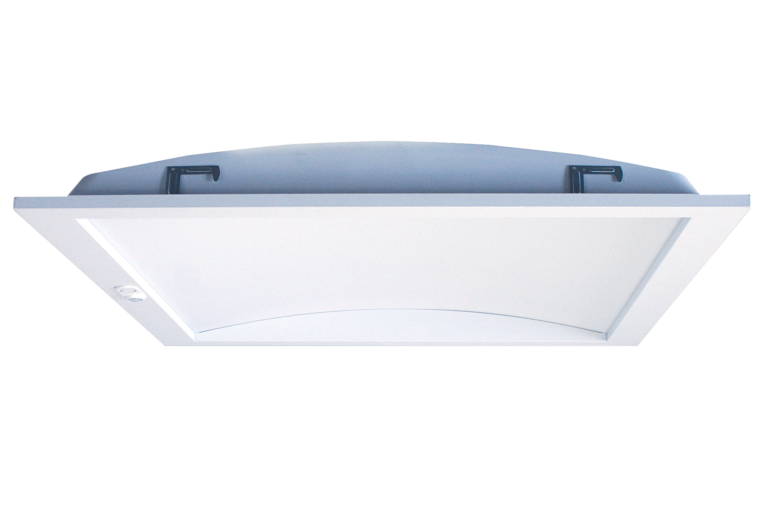

LED Arch Light Panel

Item No: APT2S

The Litetronics LED Arch Light Panel is an affordable, high-efficiency replacement for outdated fluorescent troffers, delivering immediate energy savings while improving the quality and consistency of light in any space.

This lightweight and low-profile fixture installs easily into standard grid ceilings, making it a seamless one-for-one replacement. With selectable wattage and color temperatures (3000K–5000K), it offers flexible performance tailored to a variety of environments. The panel delivers 125 LPW with a wide 110° beam angle, providing smooth, even illumination that enhances comfort and visual clarity.

Request Pricing


Product Information:

Shape:
Length 23.74" Width 23.74" Height 2.73"
Brand:
LED Arch Light Panel
Watts:
500
Voltage:
120-277V
Average Rated Life:
50,000 Hrs.
Initial Lumens:
2250 | 2500 | 3125 | 3750 | 4500
CRI:
>80
Color Temp:
3000K | 3500K | 4000K | 5000K
Finish:
Powder Coat
Operating Temp:
-4°F to 104°F (-20°C to 40°C)
Power Factor:
≥0.9
Warranty:
5 Years
Beam Angle:
110°
THD:
≤20%
Lumens/Watt:
125
Suitable for Damp Locations:
No

Applications:

  • Schools
  • Universities
  • Offices
  • Municipal Building
  • Healthcare Facilities
  • Retail
  • Lobbies

Features:

  • 5 Selectable watt settings
  • Selectable CCT 3000K | 3500K | 4000K | 5000K
  • Size: 2’x2’
  • Compatible with Emergency Battery Backup
  • 50,000-hour rated life
  • 5-year warranty
  • 120-277V
  • Optional pluggable Bluetooth PIR sensor enabling occupancy sensing and daylight harvesting (sold separately)
  • IR Programming feature using the SCR054 remote control
  • Wireless setup and group control via LiteSmart mobile app
  • Local control via bluetooth wall switch accessory
