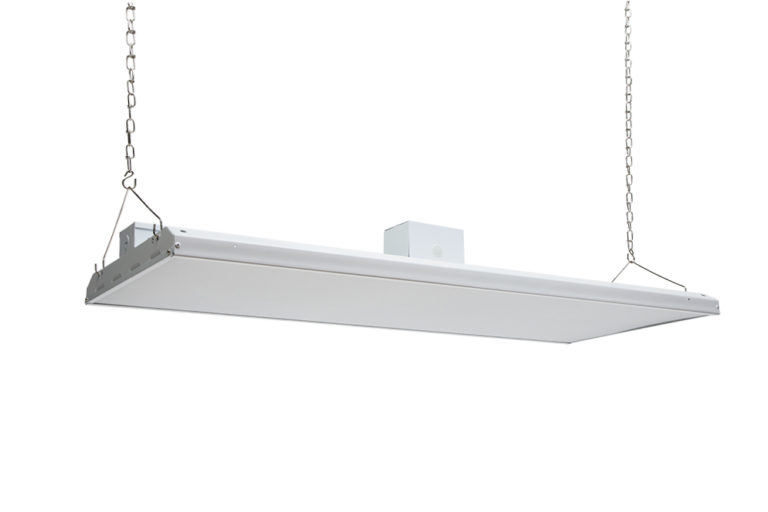

320W WHT LED HB 120-277V PCFR 5000K 0-10V DIM

Item No: LHB320UP250DL

The Litetronics 185 and 320 watt High Bays offer the flexibility to address a variety of high ceiling applications. With a diffuser lens to deliver uniform light, the product addresses a wide variety of environments. The two foot long 185 watt version offers 24,100 lumens, making it an ideal upgrade for either 400 watt metal halides or 324 watt 6 tube T5Ho fixtures. The four foot 320 watt product is ideal for ceiling heights above 50’. Both carry lpw ratings of over 130.

Designed for either pendant, chain or adjustable cable mounting, these Linear High Bays come with a 10 year warranty and a 100,000 hour rated life . 0-10 volt dimming makes the instant on fixtures ideal for use with daylighting or proximity sensors. The combination of an excellent initial value and long life means a short ROI and immediate freedom from the maintenance and light depreciation issues that make metal halide lighting in higher ceiling applications especially difficult and costly.

Request Pricing


Product Information:

Shape:
4x1.5
Brand:
LED Linear High Bay-Gen 1
Watts:
320
Voltage:
120-277
Average Rated Life:
100000
Case Quantity:
1
Initial Lumens:
41600
CRI:
80
Color Temp:
5000
Finish:
Polycarbonate Frosted
Burn Position:
Universal
M.O.L.:
45.87"
M.O.W.:
17.32"
Operating Temp:
'-4°F - 104°F
Power Factor:
>.90
Warranty:
Up to 10 Years
Beam Spread:
N/A
Lumens/Watt:
130.00

Applications:

  • Convention Centers
  • Education
  • Factories
  • Industrial
  • Recreational Spaces
  • Warehouses

Features:

  • Dimmable
  • Instant On
  • FCC
  • DLC Premium

Markets:

  • Aisle Lighting
  • Down Lighting
