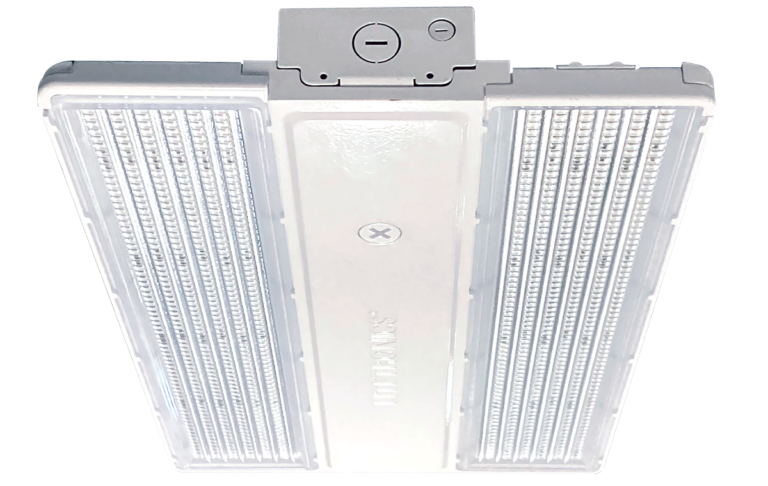

245W Linear High Bay Pro with Sensor Socket

Item No: LHBP245

Introducing the LED Linear High Bay Pro, the only High Bay fixture in the industry featuring an All-In-One 120-480v driver. This revolutionary fixture also incorporates 2 bean patterns in one lens. Switch from Standard to Aisle distribution with NO TOOLS.

The LED Linear High Bay Pro goes above and beyond the standards, delivering top-of-the-line efficiency and versatility that results in a truly optimized approach to each application. All LHBP units can accommodate a pluggable sensor that enables increased energy saving features such as occupancy sensing and daylight harvesting, both of which can be adjusted via remote control.

Our Smart Sensor enables the same energy saving features, but can be setup and managed on a group level via the LiteSmart mobile app. The fixture also offers versatility in installation. It comes standard with 10’ suspension cables and a 10’ cord, making it an easy upgrade from linear fluorescent fixtures. Pendant or surface mounting kit options are available.

Request Pricing


Product Information:

Shape:
12.01" x 19.61" x 2.46"
Brand:
LED Linear High Bay Pro
Watts:
245
Voltage:
120-480V Multi Volt
Average Rated Life:
100,000 hrs.
Initial Lumens:
30000 | 36000 | 40000
CRI:
80
Color Temp:
4000K | 5000K
Finish:
Powder Coat
Operating Temp:
-40°F to 122°F (-40°C to 50°C)
Power Factor:
≥.95
Warranty:
10 Years
Beam Angle:
Beam: 95° x 110° | Aisle Angle: 45° x 110°
THD:
<20%
Lumens/Watt:
245
Suitable for Damp Locations:
Damp

Applications:

  • Warehouse & storage
  • Industrial facilities
  • Sports facilities & gyms
  • Manufacturing facilities
  • Retail centers

Features:

  • 3 Selectable watt settings
  • Selectable CCT 4000K | 5000K
  • Lens rotation feature allows optic lenses to be rotated out without tools
  • UL rated for damp locations
  • DLC 5.1 - High Efficiency up to 163 LPW
  • 100,000-hour rated life
  • 10-year warranty
  • Optional pluggable sensor enabling occupancy sensing or daylight harvesting (sold separately)
  • Compatibility with LiteSmart mobile app
  • 120-480V Multi Volt
  • 0-10V dimming
  • Emergency battery backup available
