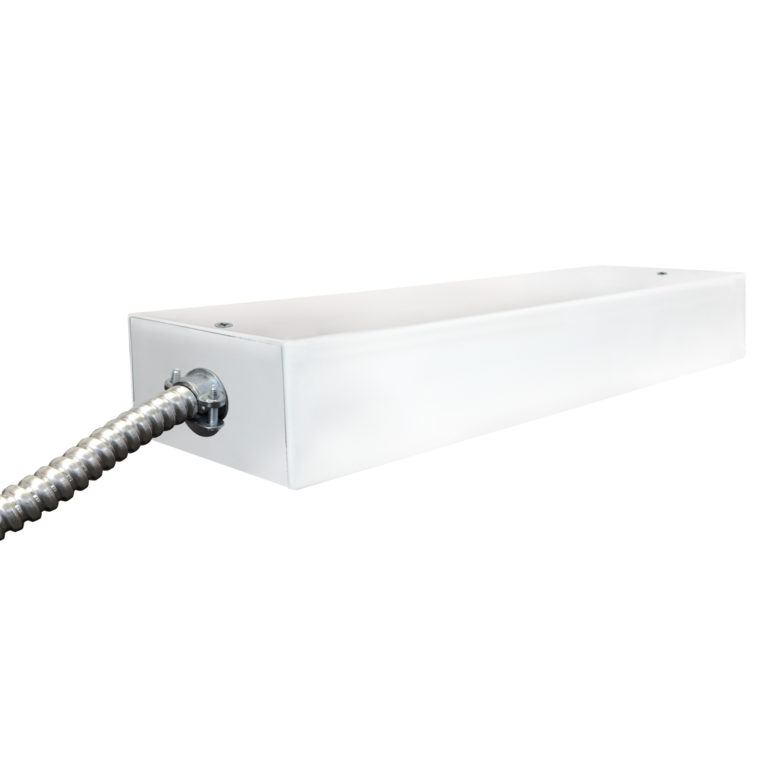

23Watt LED Emergency Battery Backup with 18″ Conduit

Item No. EB23UQB

For Ceiling Heights of up to 23 feet.

The new EB23UQ (Standard) & EB23UQB (Remote Mount) Emergency Battery Backup enables many of our LED retrofits and luminaires to be used for emergency situations. In the event of a power failure, the LED Emergency Battery Backup automatically switches on, delivering 23W of power to the lamp.

The field programmable unit provides 100 lumens/watt up to 2,300 lumens for 90 minutes with no light degradation. Maximum lumen output is determined by the wattage of the retrofit or luminaire. The unit contains a battery, charger and a driver module in a single compact design. Powerful, rare earth magnets secure the LED Emergency Battery Backup to the fixture freeing the installers hands for easy installation.

Category LED Luminaire Accessories
Watts23
Voltage120-277
Average Rated Life50000
Case Quantity4
M.O.L.13
M.O.W.4
Operating Temp32° to 131°F
Power Factor>.90
Warranty5 Years
Beam SpreadN/A
Lumens/Watt100
Certifications and Features:
Applications:
  • Troffers
Markets:
  • Hospitality
  • Hospitals
  • Offices
  • Restaurants
  • Retail
  • Schools
