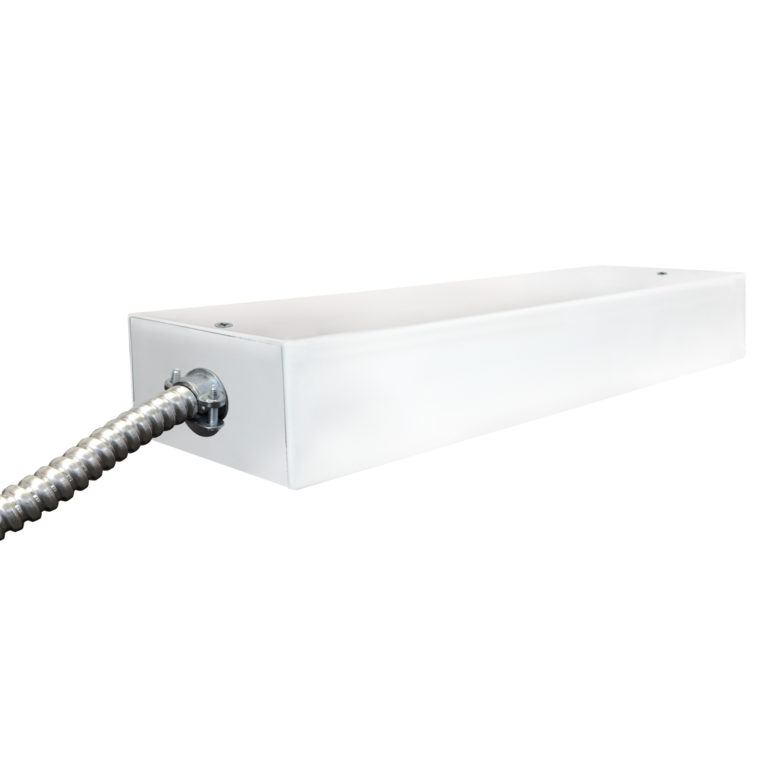

23Watt LED Emergency Battery Backup with 18″ Conduit

Item No: EB23UQB

The new EB23UQ (Standard) & EB23UQB (Remote Mount) Emergency Battery Backup enables many of our LED retrofits and luminaires to be used for emergency situations. In the event of a power failure, the LED Emergency Battery Backup automatically switches on, delivering 23W of power to the lamp.

The field programmable unit provides 100 lumens/watt up to 2,300 lumens for 90 minutes with no light degradation. Maximum lumen output is determined by the wattage of the retrofit or luminaire. The unit contains a battery, charger and a driver module in a single compact design. Powerful, rare earth magnets secure the LED Emergency Battery Backup to the fixture freeing the installers hands for easy installation.

Request Pricing


Product Information:

Watts:
23
Voltage:
120-277
Average Rated Life:
50000
Case Quantity:
4
M.O.L.:
13
M.O.W.:
4
Operating Temp:
32° to 113°F
Power Factor:
>.90
Warranty:
5 Years
Beam Spread:
N/A
Lumens/Watt:
100

Applications:

  • Troffers

Features:

  • FCC
  • UL

Markets:

  • Hospitality
  • Hospitals
  • Offices
  • Restaurants
  • Retail
  • Schools
