Litetronics has simplified the job of retrofitting strip fixtures. The 1’x4’ direct-connect and dimmable RetroFits are well suited for upgrades in single units and 8’ fluorescent fixtures as well as the long line assemblies used in cove and factory lighting. From a single source, our 16 and 32 Watt RetroFits can be directly connected to each other with dimming as well as power lines. All can be daisy-chained using the direct jumpers as well as 8” or 4’ cables.

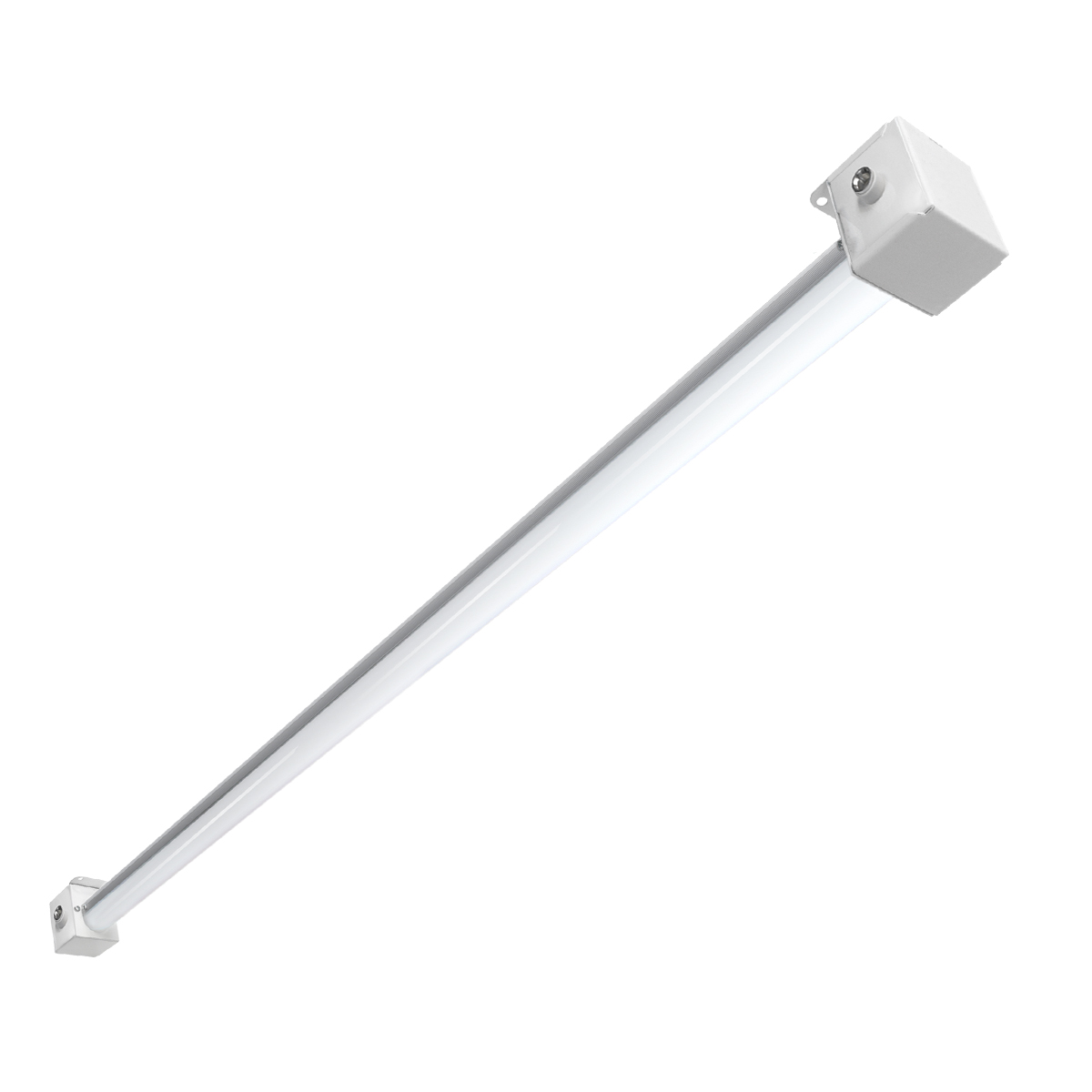

16W 1-1×4 LED RF QC 3500K 0-10V DIM
Item No: Instant Bright,UL,FCC,DLC,Dimmable
Product Information:
- Shape:
- 1x4
- Brand:
- LED Magnetic Retrofit Fixed Wattage
- Watts:
- 16
- Voltage:
- 120-277
- Average Rated Life:
- 85000
- Retrofit Lumens:
- 2200
- Luminaire Lumens:
- 1725
- CRI:
- 83
- Color Temp:
- 3500
- M.O.L.:
- 46.5
- M.O.W.:
- 1.75
- Operating Temp:
- '-5°F - 95°F
- Power Factor:
- >.95
- Warranty:
- 7 Years
- Beam Spread:
- N/A
Applications:
- /wp-content/uploads/LED-Retrofit_1x4-Connectable-Dimmable_042017.pdf
- /wp-content/uploads/led_msds.pdf
- /wp-content/uploads/RF_1x4_0-10V_InstallationInstructions_040417.pdf
Features:
- 138
