150W LED High Bay Circular Pro

Item No: HBCP150

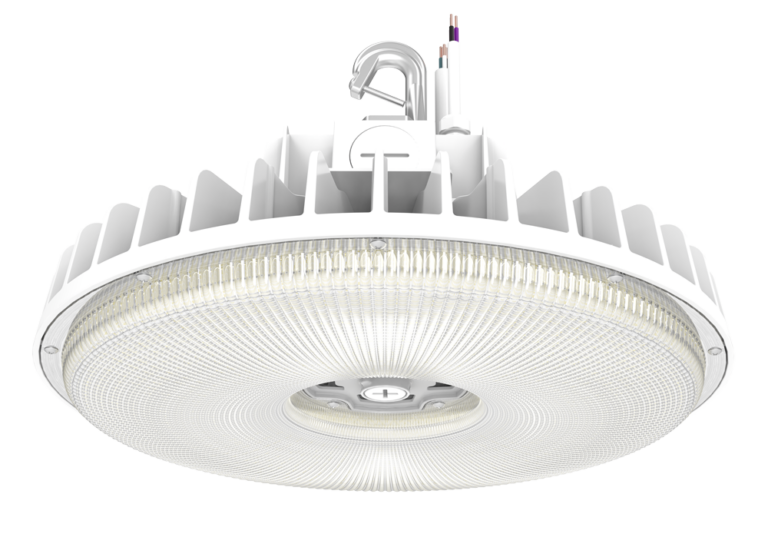

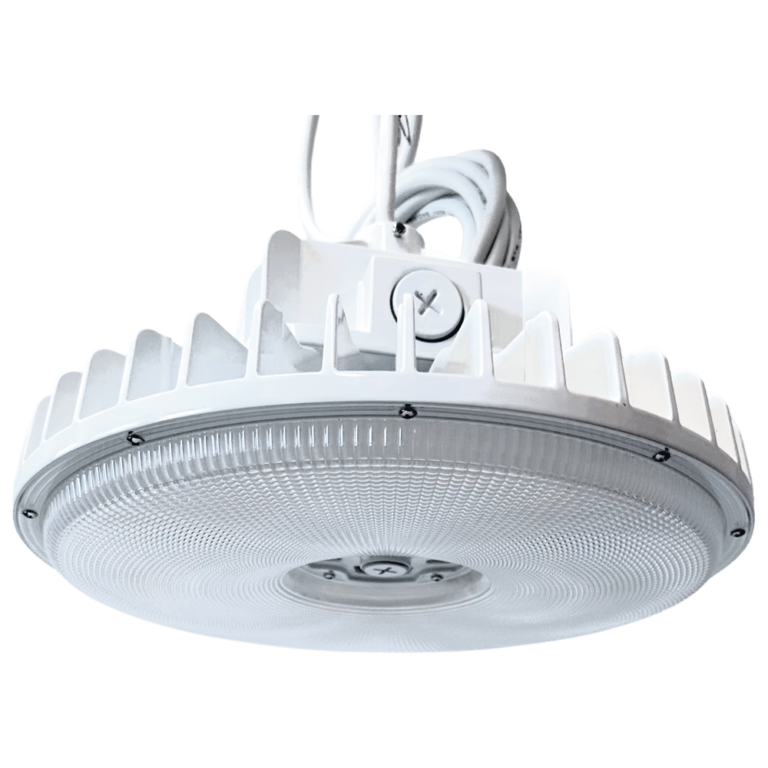

The Litetronics High Bay Circular Pro is designed to simplify industrial and commercial lighting with field-selectable wattage and CCT, allowing one fixture to cover multiple application needs. Its durable prismatic lens, corrosion-resistant coating, and IP65/IK08 ratings ensure long-lasting performance in demanding environments.

Powered by a patented all-in-one 120–480V driver, the Circular Pro reduces SKU complexity while delivering up to 167 LPW of high-efficiency illumination. Contractors benefit from its lightweight, easy-install design, and facilities gain the flexibility of plug-in smart sensor options, including Bluetooth app control.

With 10-year, 100,000-hour reliability (70,000-hour at high temp.), 6kV surge protection, and compatibility with hook, pendant, or swivel-yoke mounting, the High Bay Circular Pro is built for warehouses, manufacturing, retail, and gymnasium spaces—offering dependable performance across every project.

Request Pricing

Product Information:

Shape:
Depth 13.4″ Height 6.4"
Brand:
LED High Bay Circular Pro
Watts:
150
Voltage:
120-480V
Average Rated Life:
100,000 Hrs. (High Temp. 70,000 Hrs.)
Initial Lumens:
12000 | 18400 | 24000
CRI:
>80
Color Temp:
3000K | 4000K | 5000K
Finish:
Powder Coat
Operating Temp:
Standard Temp: -40F to 131F (-40C to 55C) High Temp: -40F to 149F (-40C to 65C)
Power Factor:
≥95
Warranty:
10 Years (7 at High Temp.)
Beam Spread:
100°
THD:
≤15%
Lumens/Watt:
160
Suitable for Damp Locations:
No

Applications:

  • Storage Facilities
  • Industrial Facilities
  • Sports Facilities
  • Manufacturing Facilities
  • Retail Centers

Features:

  • 3 Selectable watt settings 75W | 115W | 150W
  • 3 Selectable CCT 3000K | 4000K | 5000K
  • All-in-one 120-480V
  • Compatible with Emergency Battery Backup
  • 100,000-hour rated life (70,000 at High Temp.)
  • 10-Year Warranty (7-Year at High Temp.)
  • 120-480V
