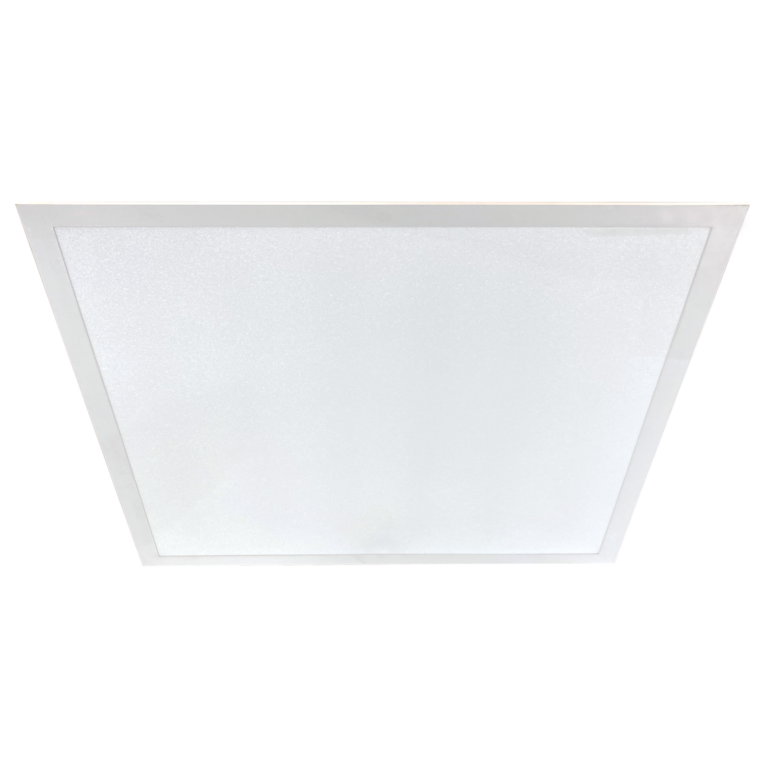

120-277V 2×2 LED LIGHT PANEL WITH INTEGRATED EMERGENCY BATTERY BACKUP

Item No: PT2EB

Combining top-of-the-line efficiency with a modern design and a focus on safety, the LED Light Panel is the ideal solution for interior grid ceiling applications that require ongoing operation in times of an emergency. When the power cuts out, the built-in battery backup kicks on, delivering power for up to 90 minutes, ensuring occupants visibility.

Our standard model is equipped with field-adjustable light output, enabling the lumen output and wattage to be set to one of five specific levels based on the needs of the user. This feature enables the customization of light intensity on a per project basis. It is also equipped with field-adjustable color temperature. Each unit can be set to a specific color temperature, including 3500K, 4000K or 5000K. Installation is simple and quick; this LED panel upgrade fits seamlessly into all standard 2’ x 4’ or 2’ x 2’ grid ceiling layouts.

The LED Light Panel delivers up to 125 lumens per watt (LPW) over the course of it’s 50,000-hour rated life. It ensures long-term energy savings over traditional fluorescent bulbs and ballasts, as well as eliminates routine maintenance, making it perfect for updating existing grid layouts or implementing in new construction. Furthermore, it’s backed by an industry-leading 5-year warranty, guaranteeing peace of mind for the life of your fixture.

Request Pricing

Litetronics 2x2 Light Panel with Integrated Emergency Battery Backup

Product Information:

Shape:
2' x 2'
Brand:
LED Light Panel with Integrated Emergency Battery Backup
Watts:
36
Voltage:
120-277V
Average Rated Life:
50,000 hrs.
Luminaire Lumens:
2250 | 2500 | 3125 | 3750 | 4500
CRI:
80
Color Temp:
3500K | 4000K | 5000K
Finish:
Powder Coat
Operating Temp:
-4°F to 104°F (-20°C to 40°C)
Power Factor:
≥.95
Warranty:
5 years
Beam Angle:
110°
Lumens/Watt:
125
Suitable for Damp Locations:
Damp

Applications:

  • Drop/Grid Ceilings

Features:

  • 90-minutes of operating time in power outages
  • Field-adjustable light output
  • Field-adjustable CCT
  • 50,000-hour rated life
  • 5-year warranty
  • Up to 125 LPW
  • 0-10V Dimming
  • Sealed enclosure (Bug/dust free)
  • Anti-yellowing frosted diffuser
  • Suitable for damp locations

Markets:

  • Schools and universities
  • Offices and municipal buildings
  • Healthcare facilities and hospitals
