LED Flood Lights

It has never been easier to deliver light uniformity to your target application with Litetronics outdoor LED flood lights.

FLEXIBLE AND SELECTABLE…
SO MANY OPTIONS

Ideal for lighting everything from parking lots and signs to store fronts, statues/monuments, flag poles, and more, Litetronics’ five new LED area lights are each available in three color temperatures and three field-adjustable wattages, enabling installers or end users to achieve the perfect combination of aesthetics, color temperature, and lighting output for their unique application.

5 sizes, 3 color temperatures and 12 wattage options!

LED flood light model chart with watts CCT and watts.



FIELD ADJUSTABLE OUTPUT
AND COLOR

Field adjustable features for output and CCT allows for the flexibility of controlling the fixture to your exact needs.

LED Flood Light Field Adjustable Output and color chart.

Features

LED flood light features

MOUNTING OPTIONS

We have multiple mounting options so that no matter the application need, we have a solution.

LED flood light listing of various mount options

NOTE: Different mounting options are offered by product. Refer to spec sheet.



LED flood light applications



COLOR OPTIONS

Dark Bronze finish standard. Black and White (MTO).

LED flood light color options

SENSORS AND CONTROLS

YOU’RE IN CONTROL

From occupancy setting and Bluetooth technology, the Litetronics offering of sensors and controls provide limitless capabilities and options.SC005 Plugin Sensor. SC006 Plugin Microwave Sensor. SC008 Plugin Bluetooth PIR Sensor. SC010 Elbow with 1 Pin Sensor Socket.

OLAPC1 3-Pin Photocontrol for 120V-277V and 277-480V (MTO). SCR053 Remote control used with SC005 and SC006. SCR054 Remote control to commission Litetronics IR enabled sensor.

Note: 3-pin shorting cap and pluggable sensor socket comes standard.

Static overlay
LiteSmart is a mobile app that enables total management of lighting systems at the touch of your fingers.
Set up and manage
your space with LiteSmart.
DOWNLOAD NOW!

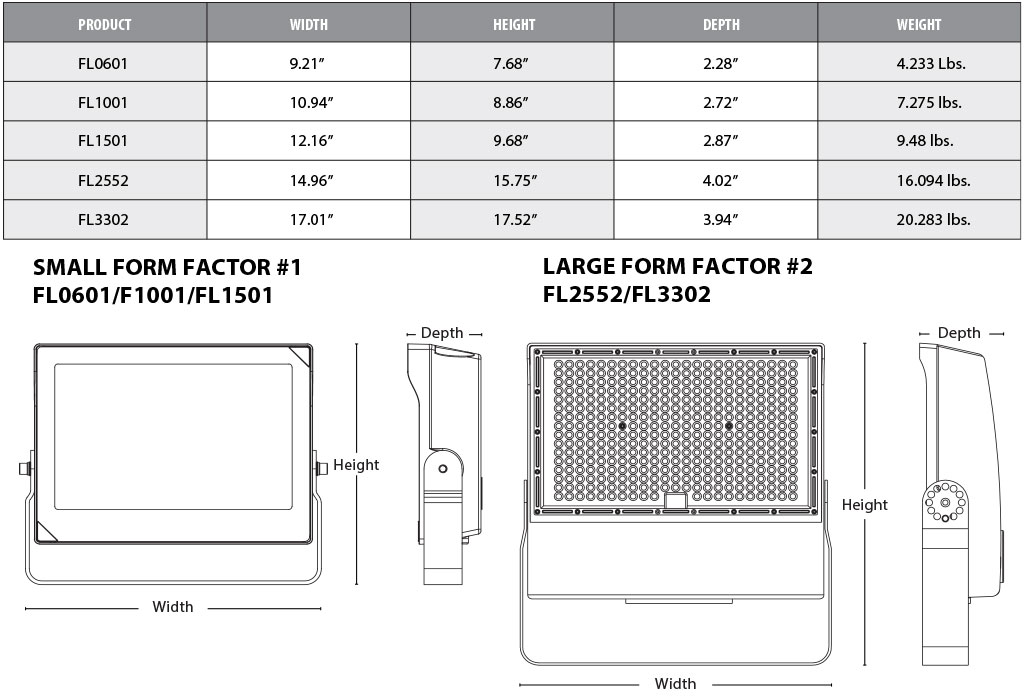

Dimensions / Weight

LED flood light dimensions, sizes and weight chart.

Features and Specs

Features

  • Selectable wattage: FL0601: 30/45/60
  • Selectable wattage: FL1001: 60/80/100
  • Selectable wattage: FL1501: 100/120/150
  • Selectable wattage: FL2552: 150/200/255
  • Selectable wattage: FL3302: 250/290/330
  • Field Selectable CCT: (3000K, 4000K, 5000K)
  • Yoke mount standard (slipfitter, trunnion, and knuckle mountings optional)
  • 3-pin shorting cap (255W and 330W models only)
  • Photocell, power controller
  • Pluggable sensor socket (150W, 255W and 330W models only)
  • Compatibility with LiteSmart mobile app (150W, 255W and 330W only)

Specs

  • Average rated life:50,000 hours (@L70)
  • Warranty:5 years
  • Operating temp - FL0601: -22F to 122°F (-30°C to 50°C)
  • Operating temp - FL1001: -22F to 122°F (-30°C to 50°C)
  • Operating temp - FL1501: -22F to 122°F (-30°C to 50°C)
  • Operating temp - FL2552: -40F to 113°F (-40°C to 45°C)
  • Operating temp - FL3302: -40F to 113°F (-40°C to 45°C)
  • LPW:140
  • CRI - FL0601: 80
  • CRI - FL1001: 80
  • CRI - FL1501: 80
  • CRI - FL2552: 70
  • CRI - FL3302: 70
  • Input voltage: 120-277V (480V option MTO)
  • Input frequency: 50/60Hz
  • Power factor: ≥0.95
  • THD:≤20%
  • Surge protection - FL0601: 2.5KV
  • Surge protection - FL1001: 4KV
  • Surge protection - FL1501: 4KV
  • Surge protection - FL2552: 10KV
  • Surge protection - FL3302: 10KV
  • Dimming: 0-10V
  • Whip/Cord - FL0601: 1.65'
  • Whip/Cord - FL1001: 1.65'
  • Whip/Cord - FL1501: 1.65'
  • Whip/Cord - FL2552: 1.65'
  • Whip/Cord - FL3302: 1.65'
  • Sensor:Plug-In: Choice of MW, PIR, and Bluetooth (150W, 255W and 330W only)
  • Beam angle - FL0601: 110°
  • Beam angle - FL1001: 110°
  • Beam angle - FL1501: 110°
  • Beam angle - FL2552: 140°
  • Beam angle - FL3302: 140°
  • Lens - FL0601: Clear glass
  • Lens - FL1001: Clear glass
  • Lens - FL1501: Clear glass
  • Lens - FL2552: Polycarbonate frosted
  • Lens - FL3302: Polycarbonate frosted
  • Color: Dark Bronze
  • IP rating: 65
  • Location Rating: Wet
  • Outdoor Rated: Yes
  • IC rated: No
  • UL listed: (Pending)
  • FCC listed: Yes
  • RoHS compliant: Yes
  • 5.1 Premium (Pending)

Wattage Lumens

Model# FL0601

  • Size: 9.21" x 7.68" x 2.28"
  • Weight: 14.233 lbs.
  • Wattages 30 | 45 | 60
  • CCT: 3000 | 4000 | 5000
  • Lumens: 4,200 | 6,300 | 8,400

Model # FL1001

  • Size: 10.94" x 8.86" x 2.72"
  • Weight: 7.275 lbs.
  • Wattages: 60 | 80 | 100
  • CCT: 3000 | 4000 | 5000
  • Lumens: 8,400 | 11,200 | 14,000

Model # FL1501

  • Size: 12.16" x 9.68" x 2.87"
  • Weight: 9.48 lbs.
  • Wattages: 100 | 120 | 150
  • CCT: 3000 | 4000 | 5000
  • Lumens: 14,000 | 16,800 | 21,000

Model # FL2552

  • Size: 14.96" x 15.75" x 4.02"
  • Weight: 16.094 lbs.
  • Wattages: 150 | 200 | 255
  • CCT: 3000 | 4000 | 5000
  • Lumens: 21,000 | 28,000 | 35,700

Model # FL3302

  • Size: 17.01" x 17.52" x 3.94"
  • Weight: 20.283 lbs.
  • Wattages: 250 | 290 | 330
  • CCT: 3000 | 4000 | 5000
  • Lumens: 35,000 | 40,600 | 46,200

For More Information

Call 1-800-860-3392 or ask about our 60 day free trial to see the LED Flood Lights in all their glory first hand.

So, what are you waiting for?

Request Pricing

To find the potential ROI for your upcoming project, use our Payback Calculator

For more resources on the LED Flood Lights, visit our Resource Center
